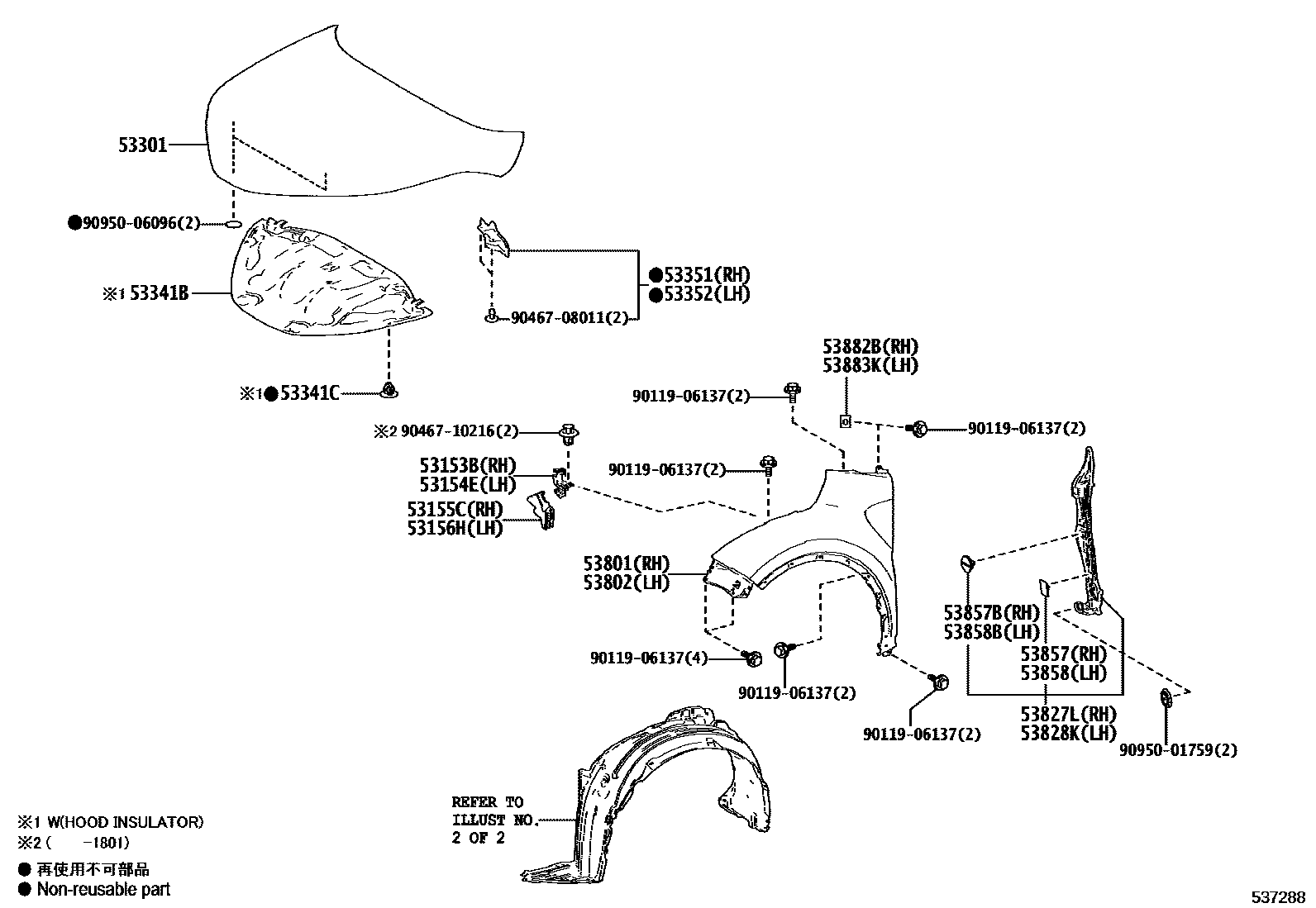

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER 0005 1 0006 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-F4010iNGX10,50,ZGX10,ZYX10201610-202112

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-F4010iNGX10..RUS201610-202112

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-F4010iNGX10,50,ZGX10,ZYX10201610-202112

53301HOOD SUB-ASSY

main53301-F4010iNGX10,50,ZGX10,ZYX10201610-202112

53341BINSULATOR, HOOD

main53341-F4010iNGX10,50,ZGX10,ZYX10..E,G,N201610-201909

LIGHT GRADE

main53341-F4010iNGX10..RUS201909-202112

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR¥120201610-202112

(J)

main90467-09050iNGX10,50,ZGX10,ZYX10..E,G,N¥120201610-201909

LIGHT GRADE,(J)

main90467-W0003iNGX10..RUS¥130201610-202112

(L)

53351PANEL, HOOD SIDE, RH

main53351-F4010iNGX10,50,ZGX10,ZYX10201610-201909

53352PANEL, HOOD SIDE, LH

main53352-F4010iNGX10,50,ZGX10,ZYX10201610-201909

53801FENDER SUB-ASSY, FRONT RH

main53801-F4010iNGX10,50,ZGX10,ZYX10201610-202112

53802FENDER SUB-ASSY, FRONT LH

main53802-F4010iNGX10,50,ZGX10,ZYX10201610-202112

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-F4010iNGX10..RUS201610-202112

main53827-F4040iMAXH10..E,G,K201909

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-F4010iNGX10..RUS201610-202112

main53828-F4040iMAXH10..E,G,K201909

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iNGX10,50,ZGX10,ZYX10¥100201610-202112

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNGX10,50,ZGX10,ZYX10¥60201610-202112

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iNGX10,50,ZGX10,ZYX10¥100201610-202112

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNGX10..RUS¥60201610-202112

53882BSEAL, FRONT FENDER, RH

main53882-16030iNGX10,50,ZGX10,ZYX10¥60201610-202112

53883KSEAL, FRONT FENDER, LH

main53882-16030iNGX10,50,ZGX10,ZYX10¥60201610-202112

9011906137

main90119-06137¥70

9046708011

main90467-08011¥100

9046710216

main90467-10216¥100

9095001759

main90950-01759¥120

9095006096

main90950-06096¥100

24 parts on this diagram · 6 diagrams in section
