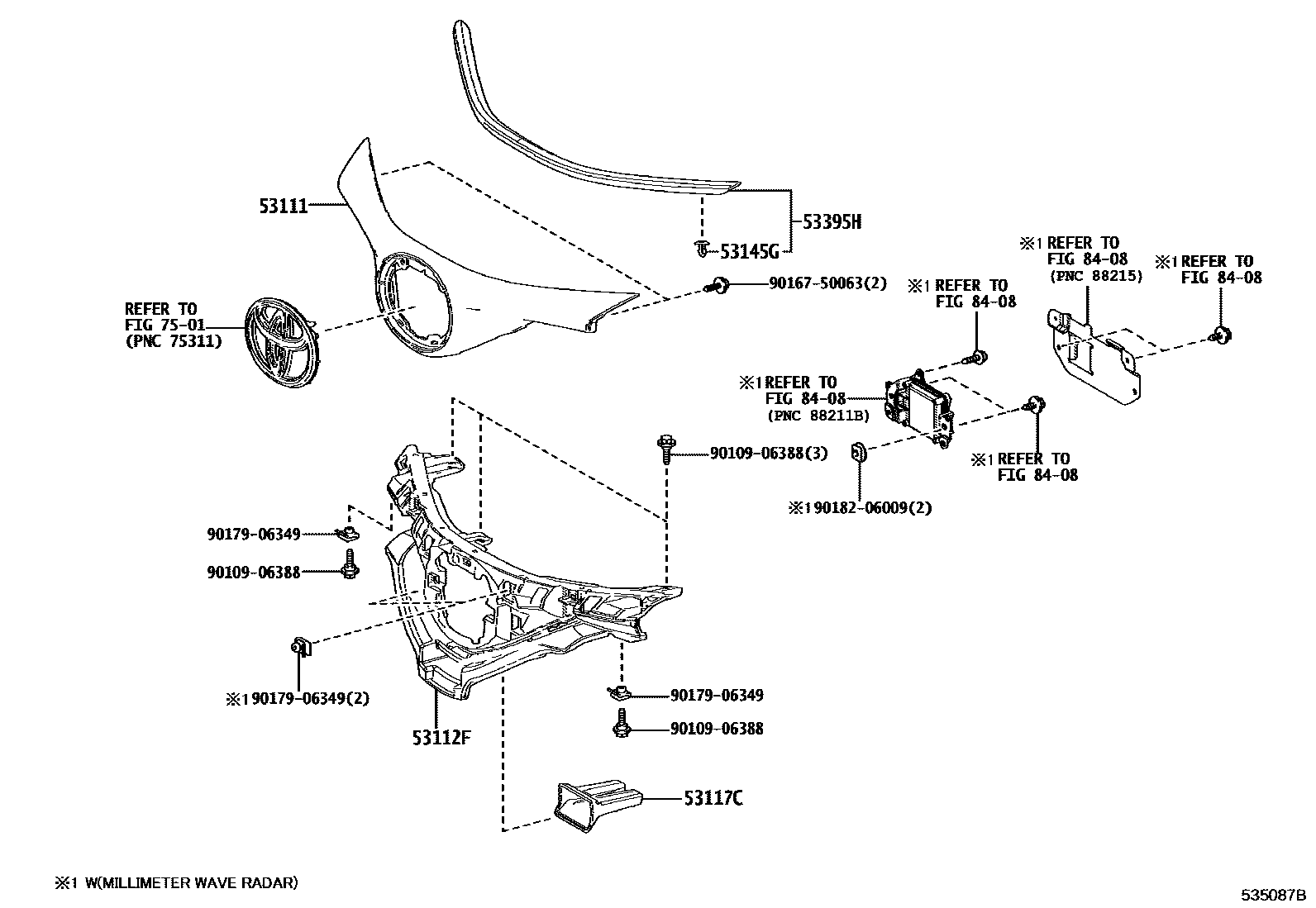

RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53111-F4901iNGX10,50,ZGX10,ZYX10201610-201909

PAINT REQ.

53112FGRILLE, RADIATOR, INSIDE

main53112-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main53112-F4070iMAXH10,NGX10,50,ZGX10,ZYX1#201909-202010

main53112-F4080iNGX10..RUS202010-202112

53117CRETAINER, RADIATOR GRILLE, NO.1

main52521-F4010iNGX10,50,ZGX10,ZYX10201610-201909

53145GCLIP, RADIATOR GRILLE

main53145-60030×7iNGX10,50,ZGX10,ZYX10201610-201909

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main53395-F4070iNGX10..RUS201909-202112

7501

8408

9010906388

main90109-06388

9016750063

main90167-50063

9017906349

main90179-06349

9018206009

main90182-06009

11 parts on this diagram · 2 diagrams in section
