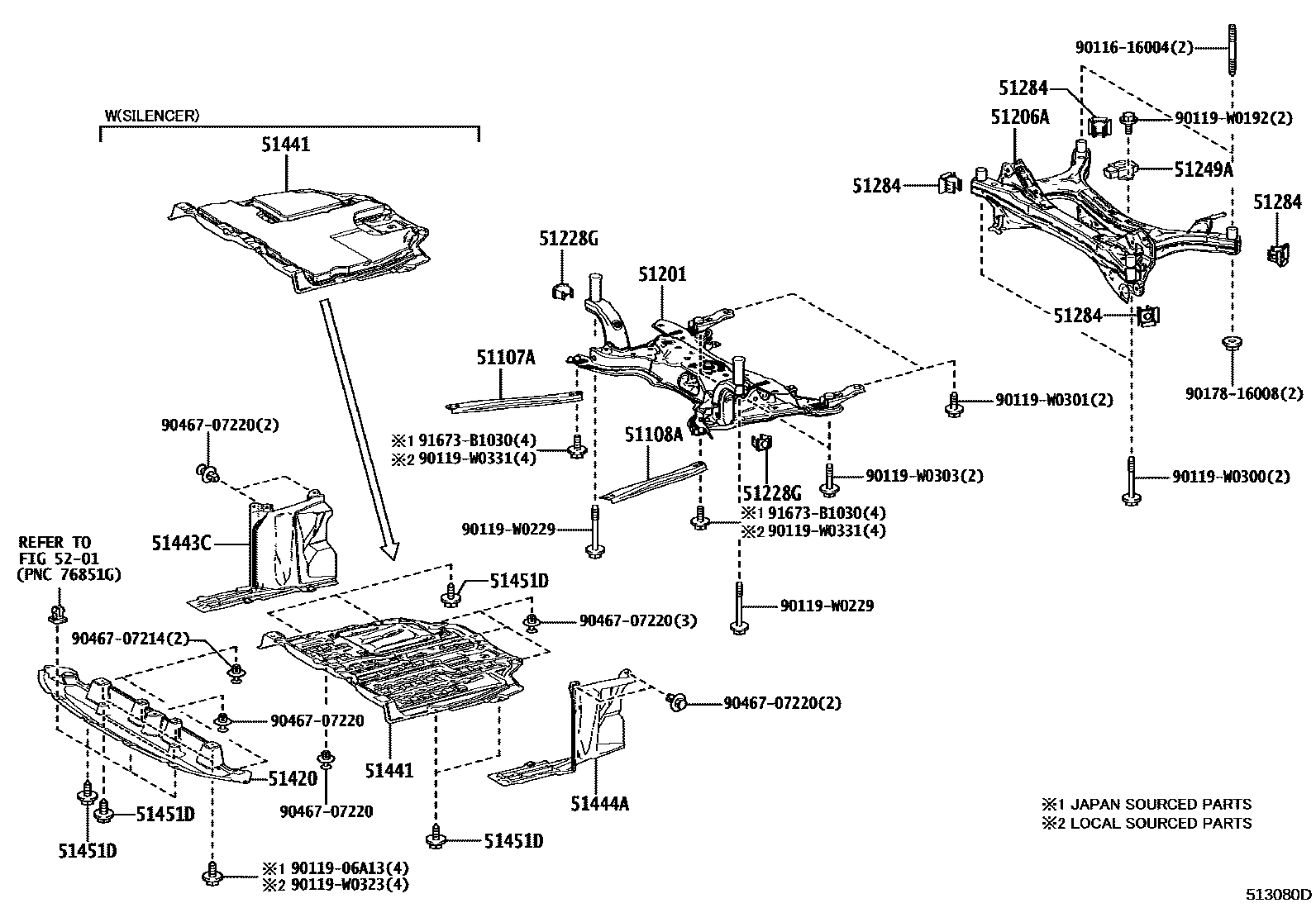

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51151-F4010iNGX10..RUS201610-202112

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51151-F4010iNGX10,50,ZGX10,ZYX10201610-202112

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-F4010iNGX10,50,ZGX10,ZYX10201610-201707

sub51201-F4011

main51201-F4011iNGX10,50,ZGX10,ZYX10201708-201709

sub51201-F4012

main51201-F4012iNGX10,50,ZGX10,ZYX10201710-201907

sub51201-F4013

main51201-F4013iNGX10,50,ZGX10,ZYX10201908-202112

sub51201-F4070

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-F4011iNGX10,ZGX10,ZYX10201610-201611

sub51206-F4012

main51206-F4012iNGX10,ZGX10,ZYX10201611-201705

sub51206-F4013

main51206-F4013iNGX10..RUS201705-202112

main51206-F4020iNGX50201610-201611

sub51206-F4021

main51206-F4021iNGX50201611-201705

sub51206-F4022

main51206-F4022iNGX50201705-201909

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-F4010iNGX10,50,ZGX10,ZYX10201610-202112

51249ADAMPER, REAR SUSPENSION MEMBER

main51249-F4010iNGX10..RUS201610-202112

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-F4010iNGX10..RUS201610-202112

51420COVER ASSY, ENGINE UNDER, NO.2

main51420-F4010iNGX10,50,ZGX10,ZYX10201610-202112

51441COVER, ENGINE UNDER, NO.1

main51410-F4030iNGX10,ZGX10,ZYX10201610-201909

sub51410-F4100

main51410-F4040iNGX50201610-201909

sub51410-F4130

main51410-F4100iNGX10..RUS201909-202112

main51410-F4130iNGX50201909

51443CCOVER, ENGINE UNDER, REAR RH

main51443-F4010iNGX10..RUS201610-202112

51444ACOVER, ENGINE UNDER, REAR LH

main51444-F4010iNGX10,50,ZGX10,ZYX10201610-202112

51451DSCREW, NO.1

main90159-60477iNGX10..RUS201804-202112

(J)

main90159-60477iNGX10,50,ZGX10,ZYX10201610-201804

main90159-W0026iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201804-202112

(L)

5201

9011616004

main90116-16004

9011906A13

main90119-06A13

90119W0192

main90119-W0192

90119W0229

main90119-W0229

90119W0300

main90119-W0300

90119W0301

main90119-W0301

90119W0303

main90119-W0303

90119W0323

main90119-W0323

90119W0331

main90119-W0331

9017816008

main90178-16008

9046707214

main90467-07214

9046707220

main90467-07220

91673B1030

main91673-B1030

26 parts on this diagram · 4 diagrams in section
