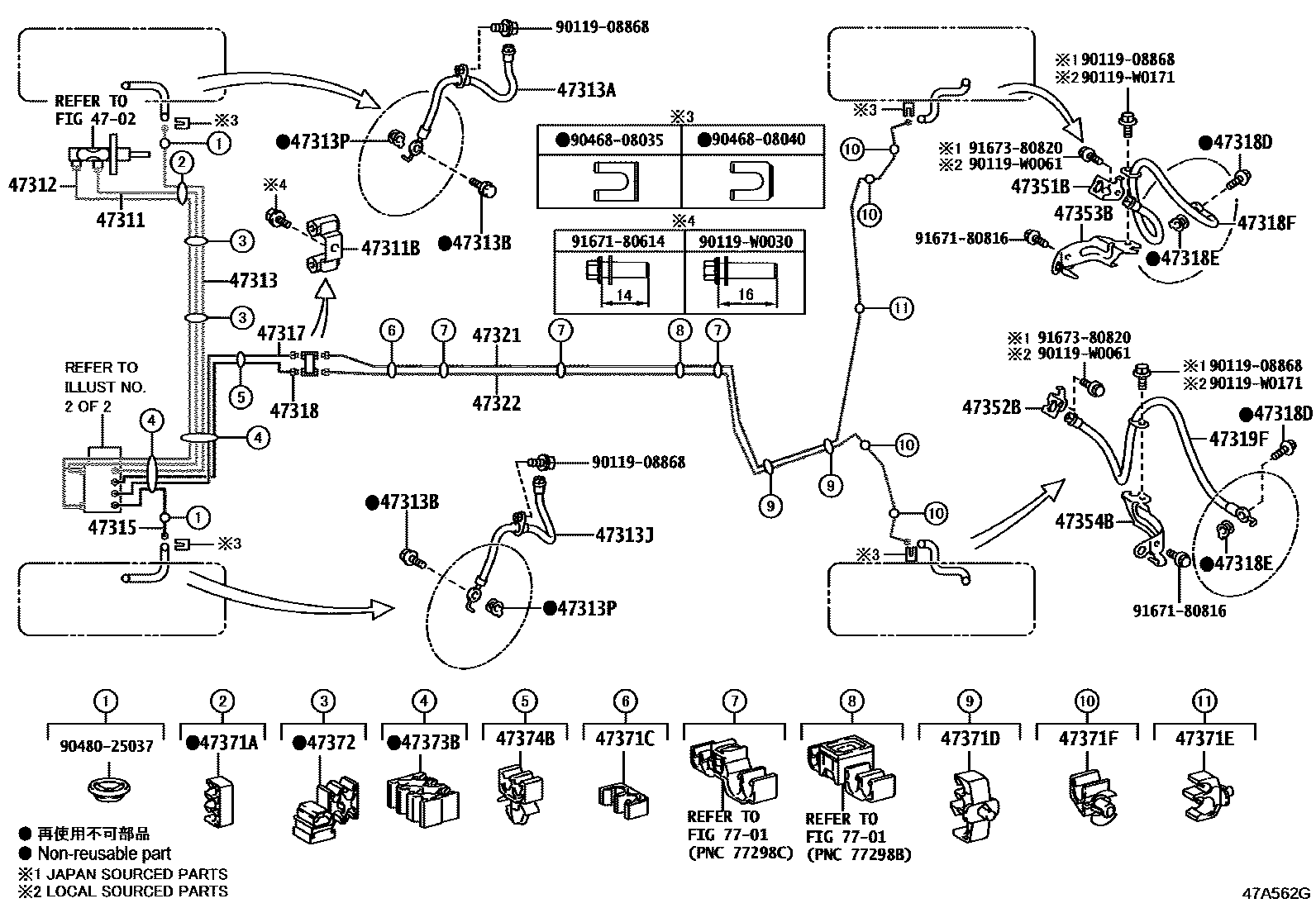

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR 0007 1BRAKE ACTUATOR & BOOSTER PUMP0008 1BRAKE ACTUATOR & BOOSTER PUMP0009 1BRAKE ACTUATOR & BOOSTER PUMP

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-02G20iMAXH10,ZYX1#..RHD201812-201909

main47311-02G40iMAXH10,ZYX1#..LHD201812-201909

main47311-02J30iNGX10,50,ZGX10..CVT202301

main47311-F4010iNGX10..RHD201610-202009

main47311-F4020iZYX10..RHD201610-201812

sub47311-02G20

main47311-F4030iNGX10,50,ZGX10..LHD201610-202212

main47311-F4040iZYX10..LHD201610-201812

sub47311-02G40

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iNGX10,50,ZGX10,ZYX10201610-202112

47312TUBE, FRONT BRAKE, NO.2

main47312-02E80iZYX10..RHD201812-201909

main47312-02F00iMAXH10,ZYX1#..LHD201812-201909

main47312-F4010iNGX10,50..RHD201610-202009

main47312-F4020iZYX10..RHD201610-201812

sub47312-02E80

main47312-F4030iNGX10..RUS201610-202112

main47312-F4040iZYX10..LHD201610-201812

sub47312-02F00

47313TUBE, FRONT BRAKE, NO.3

main47313-02D60iNGX10,50..RHD201812-202009

main47313-02D70iMAXH10,ZYX1#..RHD201812-201909

main47313-02G70iNGX10..RUS201812-202112

main47313-02G80iZYX10..LHD201812-201909

main47313-F4010iNGX10,50..RHD201610-201812

sub47313-02D60

main47313-F4020iZYX10..RHD201610-201812

sub47313-02D70

main47313-F4030iNGX10,50,ZGX10..LHD201610-201812

main47313-F4040iZYX10..LHD201610-201812

sub47313-02G80

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2066iNGX10..RUS201610-202112

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iNGX10..RUS201610-202112

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2067iNGX10,50,ZGX10,ZYX10201610-202112

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

47315TUBE, FRONT BRAKE, NO.5

main47315-02620iNGX10,50..RHD201812-202009

main47315-02630iMAXH10,ZYX1#..RHD201812-201909

main47315-02640iNGX50,ZGX10;NGX10..LHD..EUR201812-202112

main47315-02650iZYX10..LHD201812-201909

main47315-F4010iNGX10,50..RHD201610-201812

sub47315-02620

main47315-F4020iZYX10..RHD201610-201812

sub47315-02630

main47315-F4030iNGX10,50,ZGX10..LHD201610-201812

sub47315-02640

main47315-F4040iZYX10..LHD201610-201812

47317TUBE, FRONT BRAKE, NO.7

main47317-02C50iNGX10,50..RHD201812-202009

main47317-02C60iZYX10..RHD201812-201909

main47317-02F50iNGX10..RUS201812-202112

main47317-02F60iMAXH10,ZYX1#..LHD201812-201909

main47317-F4010iNGX10,50..RHD201610-201812

sub47317-02C50

main47317-F4020iZYX10..RHD201610-201812

sub47317-02C60

main47317-F4030iNGX10,50,ZGX10..LHD201610-201812

sub47317-02F50

main47317-F4040iZYX10..LHD201610-201812

sub47317-02F60

47318TUBE, FRONT BRAKE, NO.8

main47318-02C70iNGX10,50..RHD201812-202009

main47318-02C80iMAXH10,ZYX1#..RHD201812-201909

main47318-02F70iNGX10,50,ZGX10..LHD201812-202112

main47318-02F80iMAXH10,ZYX1#..LHD201812-201909

main47318-F4010iNGX10,50..RHD201610-201812

sub47318-02C70

main47318-F4020iZYX10..RHD201610-201812

sub47318-02C80

main47318-F4030iNGX10,50,ZGX10..LHD201610-201812

sub47318-02F70

main47318-F4040iZYX10..LHD201610-201812

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iNGX10,50,ZGX10,ZYX10201610-202112

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iNGX10..RUS201610-202112

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2068iNGX10,50,ZGX10,ZYX10201610-202112

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2069iNGX10..RUS201610-202112

47321TUBE, REAR BRAKE, NO.1

main47321-F4011iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

47322TUBE, REAR BRAKE, NO.2

main47322-F4011iNGX10,50,ZGX10,ZYX10201610-202112

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-F4020iNGX10,50,ZGX10,ZYX10201610-202112

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-F4020iNGX10,50,ZGX10,ZYX10201610-202112

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-F4010iNGX10,50,ZGX10,ZYX10201610-202112

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-F4010iNGX10,50,ZGX10,ZYX10201610-202112

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D91iZYX10..RHD201610-201909

main90949-01D99iZYX10..LHD201610-201909

main90949-01E43iNGX10..RHD201610-202009

main90949-01E44iNGX10..RUS201610-202112

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00904iNGX10..RUS201610-202112

47371DCLAMP, BRAKE TUBE, NO.8

main77286-47050iNGX10..EUR;NGX50,ZGX10201610-202112

main90461-10854iMAXH10,ZYX1#..LHD201610-201909

47371ECLAMP, BRAKE TUBE, NO.9

main77285-47110iNGX10..RUS201610-202112

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E10iZYX10201610-202112

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E30iNGX10,50..RHD201610-202009

main90949-01E42iNGX10,50,ZGX10..LHD201610-202112

main90949-01E49iMAXH10,ZYX1#..RHD201610-201909

main90949-01E50iZYX10..LHD201610-201909

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E15iZYX10..RHD201610-201909

main90949-01E44iNGX10,50..RHD201610-202009

main90949-01E51iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201610-202112

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D92iNGX10..RUS201610-202112

main90949-01E17iZYX10..RHD201610-201909

main90949-01E33iMAXH10,ZYX1#..LHD201610-201909

main90949-01E34iNGX10..RHD201610-202009

7701

9011908868

main90119-08868

90119W0030

main90119-W0030

90119W0061

main90119-W0061

90119W0171

main90119-W0171

9046808035

main90468-08035

9046808040

main90468-08040

9048025037

main90480-25037

9167180614

main91671-80614

9167180816

main91671-80816

9167380820

main91673-80820

41 parts on this diagram · 9 diagrams in section
