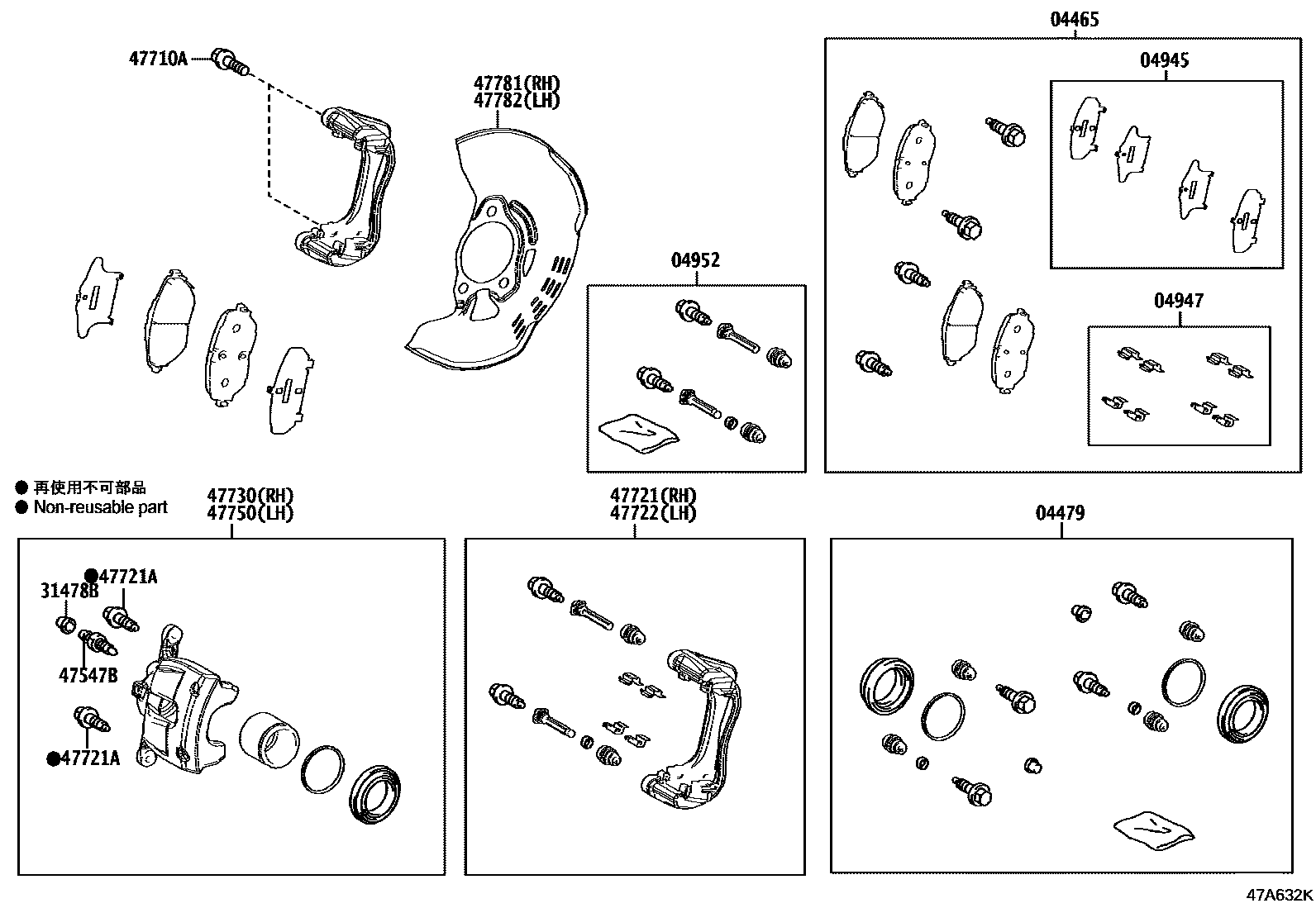

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-F4010iZYX10..LHD;NGX50..(G,K,N)..EUR;MAXH10,NGX10,ZYX11..EUR201610-202008

MARK GALFER GA5019

main04465-F4020iZYX10..RHD;NGX10,50,ZGX10..RUS201909-202006

MARK NBK D6994H,CHILE SPEC

sub04465-F4021

main04465-F4020iZYX10..RHD;NGX10,50,ZGX10..RUS201909-202006

MARK NBK D6994H,SOUTH & CENTRAL AMERICA SPEC

sub04465-F4021

main04465-F4020iZYX10..RHD;NGX10,50,ZGX10..RUS201909-202006

MARK NBK D6994H,TAIWAN SPEC

sub04465-F4021

main04465-F4020iZYX10..RHD;NGX10,50,ZGX10..RUS201909-202006

MARK NBK D6994H,MOROCCO(HV) SPEC

sub04465-F4021

main04465-F4020iZYX10..LHD..(E,G,N)201909-202006

MARK NBK D6994H

sub04465-F4021

main04465-F4020iZYX10..LHD..(E,G,N)201909-202006

MARK NBK D6994H,ARGENTINA SPEC

sub04465-F4021

main04465-F4020iZYX10..LHD..(E,G,N)201909-202006

MARK NBK D6994H,PERU SPEC

sub04465-F4021

main04465-F4021iZYX10..LHD..(E,G,N)202006

MARK NBK D6994H,PERU SPEC

main04465-F4021iNGX10..RUS201610-202112

MARK NBK D6994H

main04465-F4021iZYX10..RHD;NGX50,ZGX10..RUS202006

MARK NBK D6994H,ARGENTINA SPEC

main04465-F4021iZYX10..RHD;NGX50,ZGX10..RUS202006

MARK NBK D6994H,CHILE SPEC

main04465-F4021iZYX10..RHD;NGX50,ZGX10..RUS202006

MARK NBK D6994H,SOUTH & CENTRAL AMERICA SPEC

main04465-F4021iZYX10..RHD;NGX50,ZGX10..RUS202006

MARK NBK D6994H,TAIWAN SPEC

main04465-F4021iZYX10..RHD;NGX50,ZGX10..RUS202006

MARK NBK D6994H,MOROCCO(HV) SPEC

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-F4010iNGX10..RUS201610-202112

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-F4010iZYX10..LHD;NGX50..(G,K,N)..EUR;MAXH10,NGX10,ZYX11..EUR201610-202010

sub04945-F4020

main04945-F4020iZYX10..LHD..(E,G,N)202006

TAIWAN SPEC

sub04945-F4030

main04945-F4020iNGX10,50,ZGX10..RUS201610-202112

sub04945-F4030

main04945-F4020iZYX10..RHD;NGX50,ZGX10..RUS202006

ARGENTINA SPEC

sub04945-F4030

main04945-F4020iZYX10..RHD;NGX50,ZGX10..RUS202006

PERU SPEC

sub04945-F4030

main04945-F4020iZYX10..RHD;NGX50,ZGX10..RUS202006

CHILE SPEC

sub04945-F4030

main04945-F4020iZYX10..RHD;NGX50,ZGX10..RUS202006

SOUTH & CENTRAL AMERICA SPEC

sub04945-F4030

main04945-F4020iZYX10..RHD;NGX50,ZGX10..RUS202006

MOROCCO(HV) SPEC

sub04945-F4030

main04945-F4030iZYX10..LHD;MAXH10,NGX10,ZYX11..EUR202010

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02140iNGX10,50,ZGX10,ZYX10201610-202112

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02221iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39026iNGX10..RUS201610-202112

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39025iNGX10,50,ZGX10,ZYX10201610-202112

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-F9010iNGX10..RUS201610-202112

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-05060iNGX10,50,ZGX10,ZYX10201610-202112

sub47715-28060

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-F9010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-F4010iNGX50..E..EUR201610-202008

main47730-F4020iZYX10..LHD..(E,G,N)201909

CHILE SPEC

main47730-F4020iZYX10..LHD..(E,G,N)201909

SOUTH & CENTRAL AMERICA SPEC

main47730-F4020iZYX10..LHD..(E,G,N)201909

TAIWAN SPEC

main47730-F4020iZYX10..LHD..(E,G,N)201909

MOROCCO(HV) SPEC

main47730-F4020iNGX10..LHD..CVT..(E,N)201909

ARGENTINA SPEC

main47730-F4020iNGX10..LHD..CVT..(E,N)201909

PERU SPEC

main47730-F4020iNGX50..E..EUR201610-202112

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-F4010iNGX50..E..EUR201610-202008

main47750-F4020iZYX10..RHD;NGX50,ZGX10..RUS201909

ARGENTINA SPEC

main47750-F4020iZYX10..RHD;NGX50,ZGX10..RUS201909

PERU SPEC

main47750-F4020iZYX10..RHD;NGX50,ZGX10..RUS201909

CHILE SPEC

main47750-F4020iZYX10..RHD;NGX50,ZGX10..RUS201909

SOUTH & CENTRAL AMERICA SPEC

main47750-F4020iZYX10..RHD;NGX50,ZGX10..RUS201909

TAIWAN SPEC

main47750-F4020iZYX10..RHD;NGX50,ZGX10..RUS201909

MOROCCO(HV) SPEC

main47750-F4020iNGX50..E..EUR201610-202112

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-F4010iNGX10,50,ZGX10,ZYX10201610-202112

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-F4010iNGX10,50,ZGX10,ZYX10201610-202112

15 parts on this diagram · 1 diagram in section
