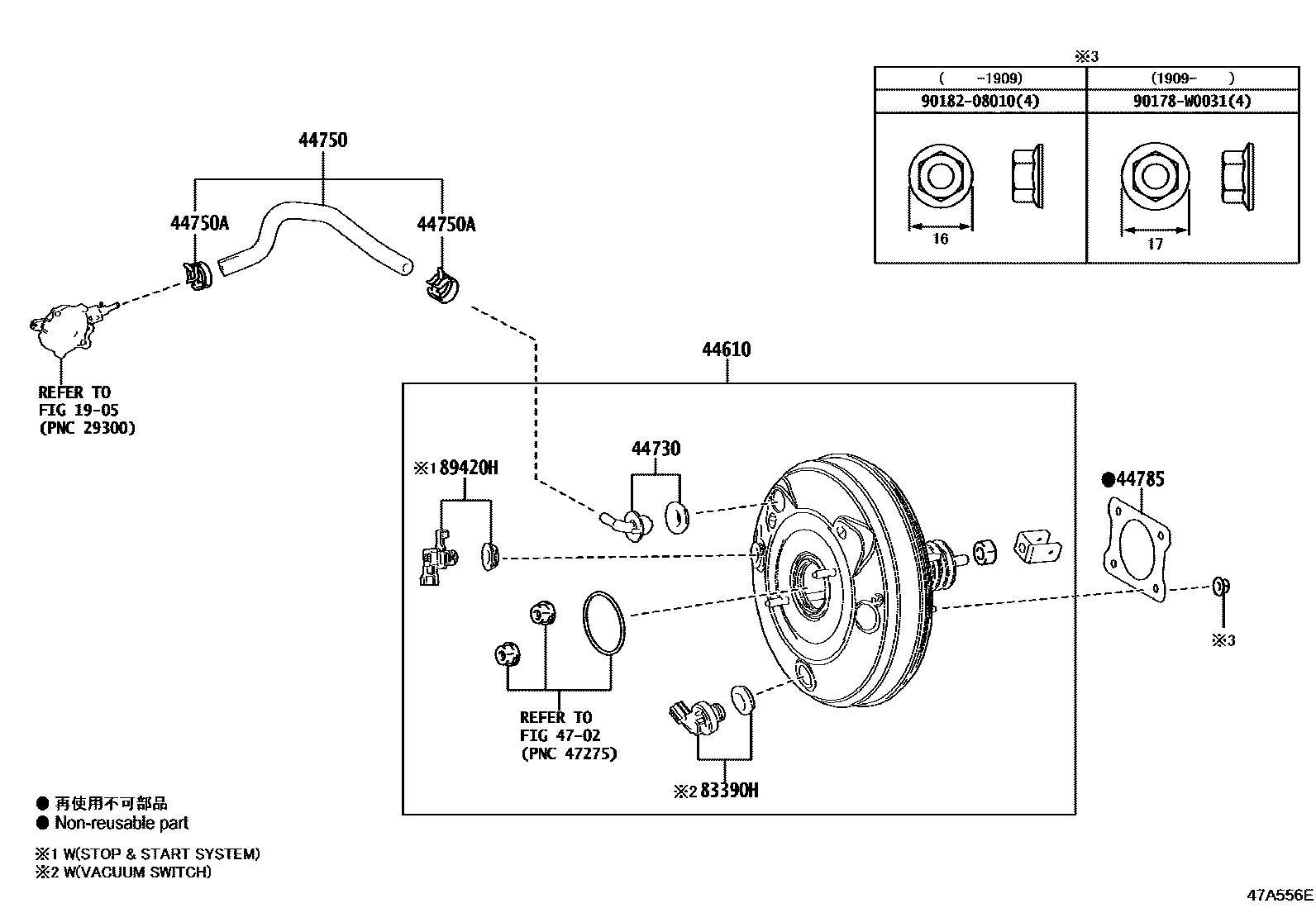

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1905

44610BOOSTER ASSY, BRAKE

main44610-F9010iNGX10,50..RHD201610-202009

main44610-F9040iNGX10..LHD..EUR;NGX50..(G,K,N)..EUR201610-202010

main44610-F9060iNGX50,ZGX10..RUS201909

TAIWAN SPEC

main44610-F9060iNGX10,50,ZGX10..RUS201610-202112

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-F9010iNGX10,50,ZGX10201610-202112

44750HOSE ASSY, VACUUM

main44750-12E40iNGX10..RHD201803-202009

main44750-12E80iNGX10..RUS201803-202112

main44750-F4010iNGX10,50..LHD201610-201803

main44750-F4020iNGX10,50..RHD201610-201803

main44750-F4030iZGX10201610-201909

44750ACLIP(FOR VACUUM HOSE ASSY)

main90466-W0008iNGX10,50..RHD201610-201909

main90467-16014iNGX50;NGX10..LHD..EUR201803-202112

44785GASKET, BRAKE BOOSTER

main44785-05020iNGX10,50,ZGX10201610-202112

4702

83390HSWITCH ASSY, VACUUM WARNING

main83390-09020iNGX10,50,ZGX10..RUS201610-202112

main83390-09020iNGX50,ZGX10..RUS201909

TAIWAN SPEC

89420HSENSOR ASSY, VACUUM

90178W0031

main90178-W0031

9018208010

main90182-08010

11 parts on this diagram · 3 diagrams in section
