STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-F4010-C0iZYX10..N;NGX10..6F..N..EUR201610-201805

3-SPOKE,URETHANE,LIGHT GRADE,EU BLACK,TRIM2#

sub45100-F4010

main45100-F4010-C0iZYX10..N;NGX10..6F..N..EUR201610-201805

3-SPOKE,URETHANE,EU BLACK,TRIM2#

sub45100-F4010

main45100-F4010-C1iZYX10..N;NGX10..6F..N..EUR201805-201909

3-SPOKE,URETHANE,BLACK,TRIM2#

sub45100-F4010

main45100-F4010-C1iZYX10..N;NGX10..6F..N..EUR201805-201909

3-SPOKE,URETHANE,LIGHT GRADE,BLACK,TRIM2#

sub45100-F4010

main45100-F4020-C1iNGX10,50,ZGX10,ZYX10..E,G,N201610-201909

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-F4110-C0iNGX10..G..RUS201909-202112

3-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-F4110-C0iNGX10..G..RUS201909-202112

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-F4110-C0iNGX10..E..RUS201909-202112

3-SPOKE,LEATHER,BLACK,TRIM2#,8#

45130BUTTON ASSY, HORN

main45130-F4010-C0iNGX10,50..LHD..EUR201610-201805

BOSNIA SPEC,EU BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

EU BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

TURKEY SPEC,EU BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

EUROPE SPEC(EXCEPT EU),EU BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

NEW CALEDONIA SPEC,EU BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

REUNION SPEC,EU BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

SERBIA SPEC,EU BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

MONTENEGRO SPEC,EU BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C0iNGX10,50,ZYX10..LHD..EUR201610-201805

MACEDONIA SPEC,EU BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

GREENLAND SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-202112

BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-201909

TURKEY SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-201909

EUROPE SPEC(EXCEPT EU),BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-201909

REUNION SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-201909

SERBIA SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-201909

MONTENEGRO SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-201909

MACEDONIA SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-201909

BOSNIA SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-201909

ALBANIA SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10,50,ZGX10..RUS201805-201909

UKRAINE SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

MONTENEGRO SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

MACEDONIA SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

BOSNIA SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

ALBANIA SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

UKRAINE SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

GREENLAND SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

SVALBARD SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX11..LHD..N..EUR201909

SVALBARD SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX50..(G,K)..EUR;MAXH10,ZYX11..LHD..(E,G,K);NGX10..LHD..6F..(E,G,K)..EUR201909-202112

BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX50..(G,K)..EUR;MAXH10,ZYX11..LHD..(E,G,K);NGX10..LHD..6F..(E,G,K)..EUR201909

EUROPE SPEC(EXCEPT EU),BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX50..(G,K)..EUR;MAXH10,ZYX11..LHD..(E,G,K);NGX10..LHD..6F..(E,G,K)..EUR201909

REUNION SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX50..(G,K)..EUR;MAXH10,ZYX11..LHD..(E,G,K);NGX10..LHD..6F..(E,G,K)..EUR201909

SERBIA SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4010-C1iNGX10..N..EUR202010

GEORGIA SPEC,BLACK,TRIM2#

sub45130-F4010

main45130-F4010-C1iNGX10..N..EUR202010

GEORGIA SPEC,BLACK,TRIM2#,4#,8#

sub45130-F4010

main45130-F4030-C0iNGX10,50,ZYX10..EUR201610-201805

EU BLACK,TRIM2#

sub45130-F4030

sub45130-F4031

main45130-F4030-C1iNGX10..RHD..N;NGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX1#..N..EUR201909-202207

BLACK,TRIM2#,8#

sub45130-F4030

sub45130-F4031

main45130-F4030-C1iNGX10..RHD..N;NGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX1#..N..EUR201805-202207

BLACK,TRIM2#

sub45130-F4030

sub45130-F4031

main45130-F4030-C1iNGX10..RHD..N;NGX10..LHD..6F..N..EUR;MAXH10,NGX50,ZYX1#..N..EUR201909-202207

BLACK,TRIM2#,4#,8#

sub45130-F4030

sub45130-F4031

main45130-F4031-C1iMAXH10,NGX50,ZYX1#..E..EUR202208

BLACK,TRIM2#

main45130-F4031-C1iMAXH10,NGX50,ZYX1#..E..EUR202208

BLACK,TRIM2#,8#

main45130-F4031-C1iMAXH10,NGX50,ZYX1#..E..EUR202208

BLACK,TRIM2#,4#

main45130-F4031-C1iMAXH10,NGX50,ZYX1#..E..EUR202208

TAIWAN SPEC,BLACK,TRIM2#

main45130-F4031-C1iMAXH10,NGX50,ZYX1#..E..EUR202208

TAIWAN SPEC,BLACK,TRIM2#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-F4010-C0iNGX10,50,ZYX10..EUR;NGX10,50,ZGX10..(E,G)..RUS201610-201805

EU BLACK,TRIM2#

sub45186-F4010

main45186-F4010-C1iMAXH10,NGX10,50,ZYX1#..N..EUR201805-201909

BLACK,TRIM2#

sub45186-F4010

main45186-F4010-C1iMAXH10,NGX10,50,ZYX1#..N..EUR201909-202112

BLACK,TRIM2#,4#,8#

sub45186-F4010

main45186-F4010-C1iNGX10..(E,G,K)..EUR;ZYX10..LHD..(E,G,K);MAXH10,NGX50,ZGX10,ZYX11..E,G,K201909

BLACK,TRIM2#,8#

sub45186-F4010

main45186-F4020-C0iNGX10..LHD..D..EUR201610-201805

PRE-COLLISION SYSTEM-WITHOUT,EU BLACK,TRIM2#

sub45186-F4020

main45186-F4020-C0iNGX10..LHD..D..EUR201610-201805

EU BLACK,TRIM2#

sub45186-F4020

main45186-F4020-C1iNGX10..LHD..D..EUR201805-202112

BLACK,TRIM2#

sub45186-F4020

main45186-F4020-C1iNGX10..LHD..D..EUR201805-201909

PRE-COLLISION SYSTEM-WITHOUT,BLACK,TRIM2#

sub45186-F4020

45201PNUT, STEERING WHEEL SET

main90179-12071iNGX10..RUS201610-202112

8401

8408

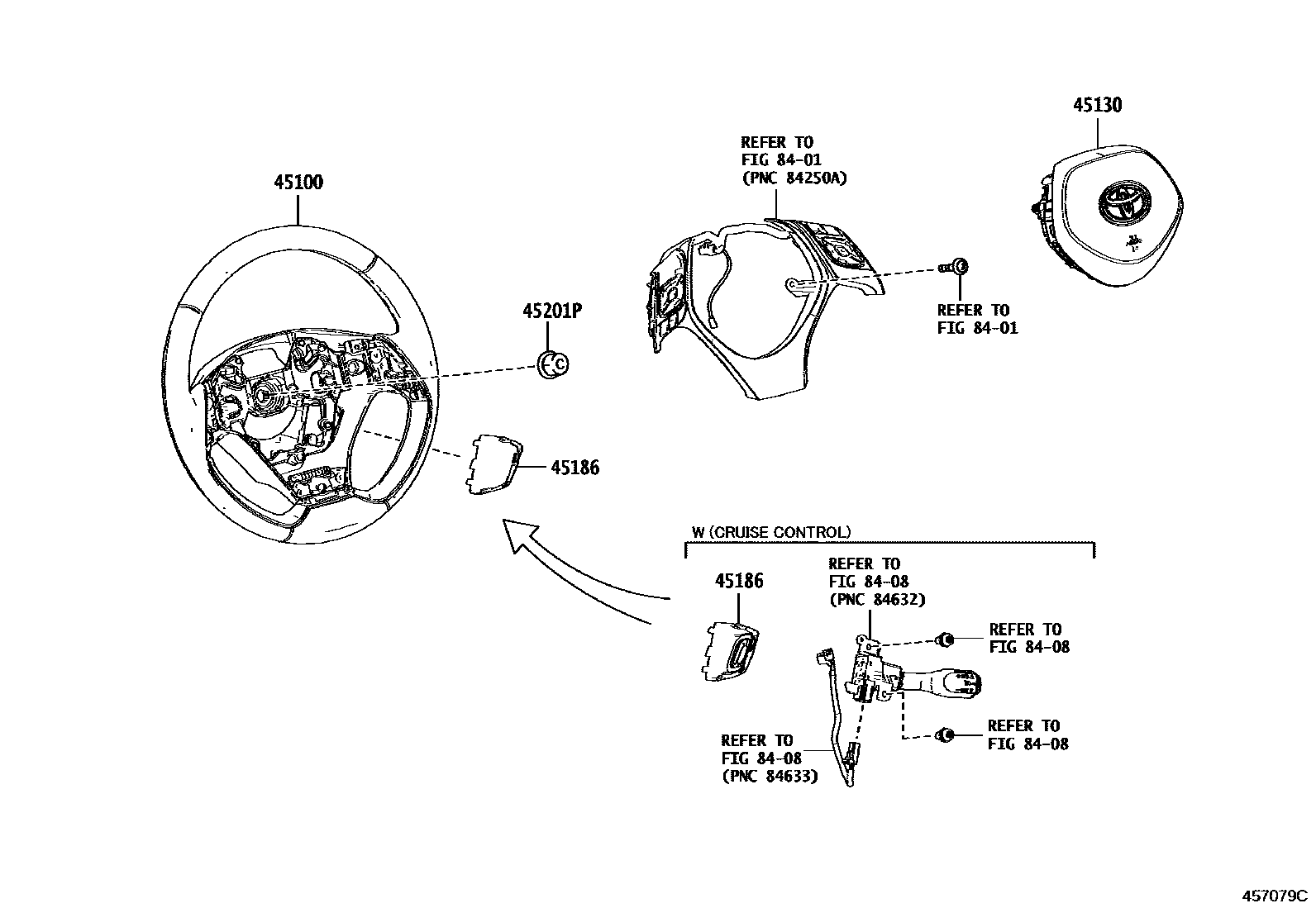

6 parts on this diagram · 1 diagram in section
