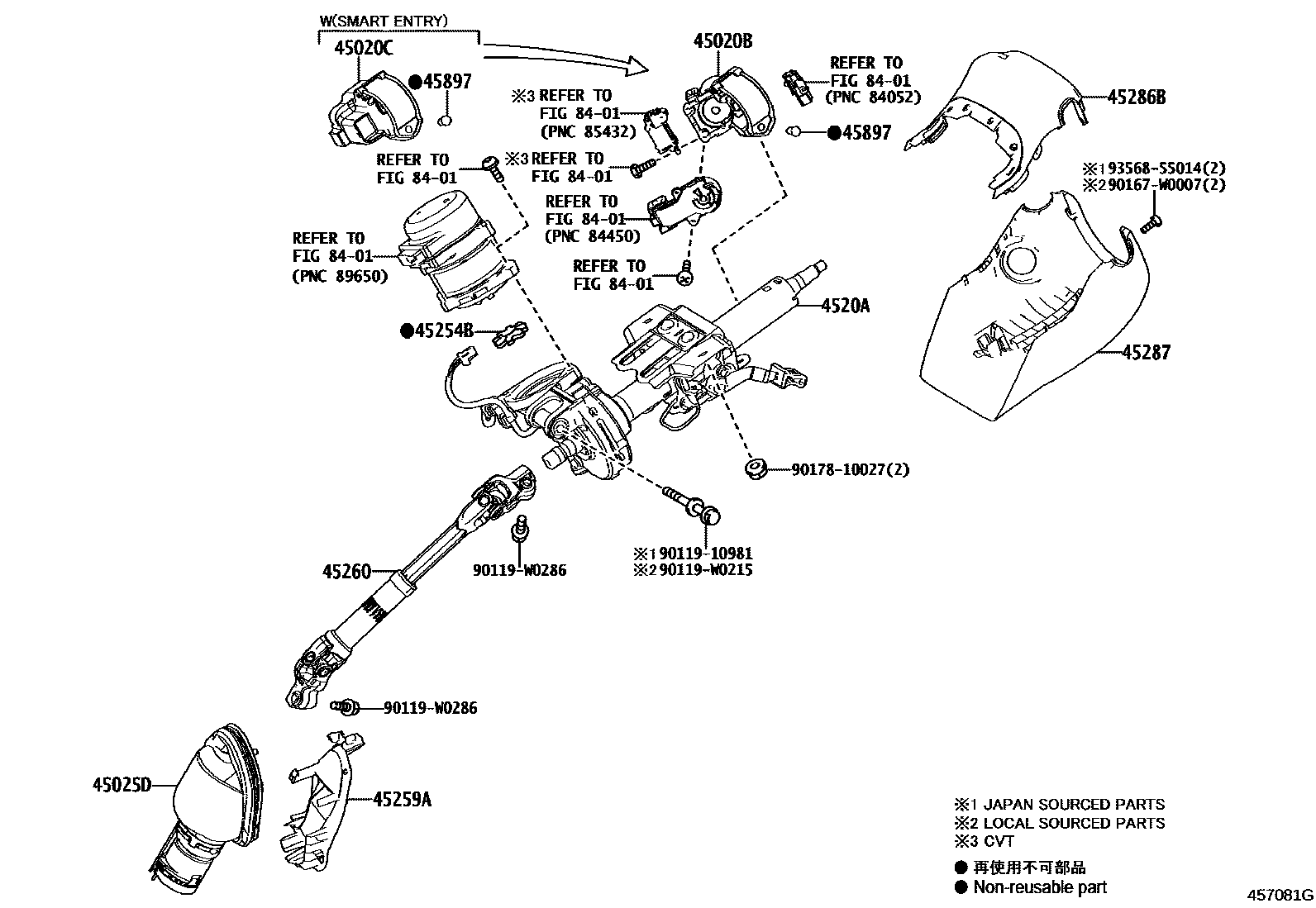

STEERING COLUMN & SHAFT

0001 1 0002 1

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0K140iNGX10,50,ZGX10..LHD..CVT..(G,N)201610-201909

main45280-0K150iNGX10..LHD..6F..(D,G,N)201610-201909

LIGHT GRADE

main45280-42170supersedes 45280-0K140iNGX10,50..LHD..CVT..(G,N)..EUR201610-201909

MEXICO SPEC

main45280-42180supersedes 45280-0K150iNGX10..LHD..6F..(D,G,N)..EUR201610-201909

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0H040iMAXH10,ZYX11..RHD..N201909

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)

main45020-0H050iNGX10..(G,K,N)..RUS201909-202112

WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-F4010iMAXH10,NGX10,ZYX1#..RHD201909

main45025-F4020iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-F4010iNGX10,50,ZGX10..LHD..(D,G,N)201610-201909

main4520A-F4030supersedes 4520A-F4010iNGX50,ZGX10..G,K,N202201

main4520A-F4050iNGX10,50..RHD..(D,G,N)201610-201909

main4520A-F4060supersedes 4520A-F4050iZYX10..RHD;NGX10,50..RHD..E201610-201909

WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-F4010iNGX10,50,ZYX10..RHD201610-201909

main45259-F4020iNGX10,50,ZGX10,ZYX10..LHD201610-201909

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-F4010iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201909

main45260-F4020iMAXH10,NGX10,ZYX1#..RHD201909

45286BCOVER, STEERING COLUMN, UPR

main45286-F4010-C0iNGX10,50,ZGX10,ZYX10201610-201805

EU BLACK,TRIM2#

main45286-F4010-C2iNGX10..N..EUR;MAXH10,NGX50,ZGX10,ZYX1#..N201909

BLACK,TRIM2#,8#

45287COVER, STEERING COLUMN, LWR

main45287-F4010-C0iNGX10,50,ZGX10..D,G,N201610-201805

EU BLACK,TRIM2#

main45287-F4010-C2iNGX10,50,ZGX10..D,G,N201805-201909

BLACK,TRIM2#

main45287-F4020-C0iNGX10,50,ZGX10..G,N201610-201805

EU BLACK,TRIM2#

main45287-F4020-C2supersedes 45287-F4010-C2iNGX50..G..EUR;NGX50,ZGX10..E;NGX10..(E,G)..EUR;MAXH10,ZYX11..E,G,K;ZYX10..LHD..(E,G,K)201909

BLACK,TRIM2#,8#

45897BOLT, STEERING LOCK SET

main45897-12020supersedes 45897-12050iNGX10..RHD..6F..N201610-201909

LIGHT GRADE

main45897-12050iNGX10,50..LHD..(D,G,N)..EUR201610-201909

MEXICO SPEC

8401

9011910981

main90119-10981

90119W0215

main90119-W0215

90119W0286

main90119-W0286

90167W0007

main90167-W0007

9017810027

main90178-10027

9356855014

main93568-55014

17 parts on this diagram · 2 diagrams in section
