EPC Data

DISC WHEEL & WHEEL CAP

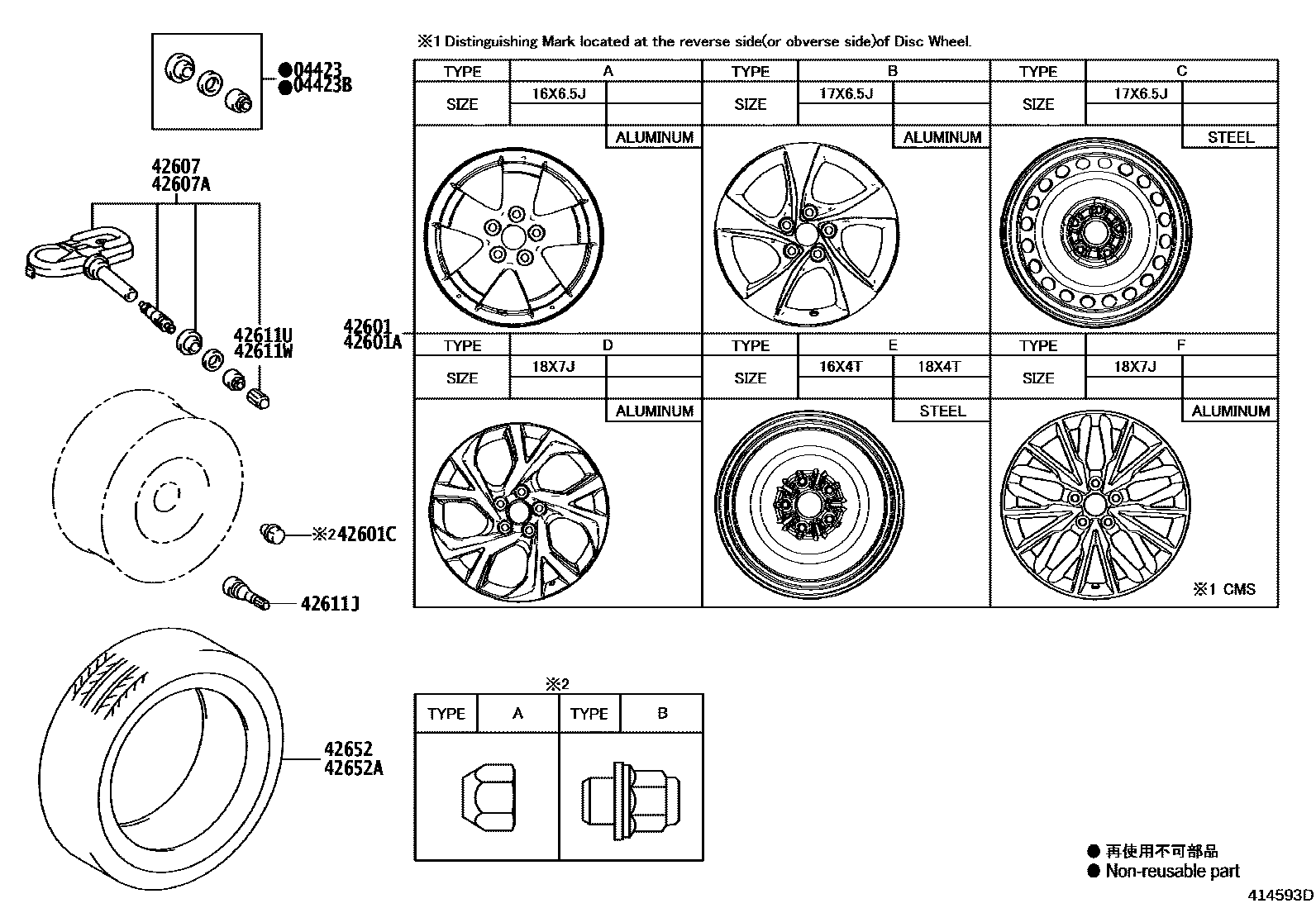

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-02010i201610-202112
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-02010i201909-202112
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY,*GEC&SPARE TIRE-GROUND TIRE
main04423-02010i201610-202112
SPARE TIRE-GROUND TIRE
main04423-02010i202010-202112
MID- PACKAGE&SPARE TIRE-GROUND TIRE
main04423-02010i202012-202112
TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
main04423-02010i201610-202201
MEXICO SPEC&SPARE TIRE-GROUND TIRE
main04423-02010i201909
CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main04423-02010i201909-202010
TIRE & DISC WHEEL-215/60R17,ALUMINUM&SPARE TIRE-GROUND TIRE
main04423-02010i201909-202010
TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main04423-02010i201909-202010
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY&SPARE TIRE-GROUND TIRE
main04423-02010i202010
TIRE & DISC WHEEL-215/60R17,STEEL&SPARE TIRE-GROUND TIRE
main04423-02010i202010
TIRE & DISC WHEEL-215/60R17,STEEL,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main04423-02010i202012
UKRAINE SPEC&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
main04423-02010i202012
GEORGIA SPEC&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
main04423-02010i201610-201909
TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main04423-02010i201610-201909
TIRE & DISC WHEEL-215/60R/17 ALUMINUM&SPARE TIRE-GROUND TIRE
main04423-02010i201909-202010
TIRE & DISC WHEEL-225/50R18,ALUMINUM,ACCESSORY
42601WHEEL, DISC
main42611-F4010i202010-202112
17X6.5J,#,MID- PACKAGE&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-F4010i202010
17X6.5J,#,TIRE & DISC WHEEL-215/60R17,STEEL&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-F4010i202010
17X6.5J,#,TIRE & DISC WHEEL-215/60R17,STEEL,GENERAL COUNTRIES,TYPE C:REFER ILLUST.
main42611-F4010i202010
17X6.5J,#,TIRE & DISC WHEEL-215/60R17,STEEL,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-F4010i202010
17X6.5J,#,TIRE & DISC WHEEL-215/60R17,STEEL,TYPE C:REFER ILLUST.
main42611-F4010i202010-202112
17X6.5J,#,MID- PACKAGE,TYPE C:REFER ILLUST.
main42611-F4010i201610-201909
17X6.5J,#,TYPE C:REFER ILLUST.
main42611-F4020i201610-201909
16X6.5J, #,TIRE & DISC WHEEL-215/65R16 ALUMINUM,TYPE A:REFER ILLUST.
main42611-F4030i201610-201909
17X6.5J, #,TYPE B:REFER ILLUST.
main42611-F4030i201610-201909
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM,TYPE B:REFER ILLUST.
main42611-F4030i201610-201909
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main42611-F4030i201610-201909
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYPE B:REFER ILLUST.
main42611-F4030i201610-201909
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main42611-F4040i201610-202201
18X7J, #,TYPE D:REFER ILLUST.
main42611-F4040i201909-202201
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMINUM,BLACK,TYPE D:REFER ILLUST.
main42611-F4140i201909-202010
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
main42611-F4140i201909-202010
17X6.5J, #,TAIWAN SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES,TYPEG:REFER ILLUST.
main42611-F4140i201909-202010
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,TYPE G:REFER ILLUST.
main42611-F4140i201909-202010
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
main42611-F4140i201909-202010
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES,TYPE G:REFER ILLUST.
main42611-F4140i201909-202112
17X6.5J, #,TYPE G:REFER ILLUST.
main42611-F4140i201909
17X6.5J, #,CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARETIRE-GROUND TIRE,TYPE G:REFER ILLUST.
main42611-F4140i201909
17X6.5J, #,CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARETIRE-TEMPORARY(T145/70D18),TYPE G:REFER ILLUST.
main42611-F4150i201909-202010
18X7J, #,TYPE H:REFER ILLUST.
main42611-F4150i201909-202010
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMINUM,GRAY,TYPE H:REFER ILLUST.
main42611-F4300i202012
19X7.5J, #,TIRE & DISC WHEEL-225/45R19,FOR GR SPORT,TYPE M:REFER ILLUST.
main42611-YP160i202012-202112
17X6.5J,#,GR SPORT&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT,TYPE J:REFER ILLUST.
main42611-YP360i202201
18X7J,#,TYPE O:REFER ILLUST.
main42611-YP360i202201
18X7J,#,TIRE & DISC WHEEL-225/50R18,ALUMINUM,ACCESSORY,TYPE O:REFER ILLUST.
main42611-YY660i201909-202010
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMINUM,ACCESSORY,TYPE F:REFER ILLUST.
main42611-YY660i201610-201909
18X7J, #,TIRE & DISC WHEEL-225/50R18 ALUMINUM,TYPE F:REFER ILLUST.
main42611-YY840i201805-201909
18X7J, #,TIRE & DISC WHEEL-225/50R/18 AL ACC2,TYPE D:REFER ILLUST.
main42611-YY870i201909-202010
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMINUM,ACCESSORY,TYPE N:REFER ILLUST.
main42611-YYA40i201909-202112
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY,*GEC,TYPE J:REFER ILLUST.
main42611-YYA40i201909-202010
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY,TYPE J:REFER ILLUST.
main42611-YYA80i201909-202010
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMI,ACCESSORY(POWDER COAT),TYPE F:REFER ILLUST.
main4261A-YY060i202010
18X7J, #,TIRE & DISC WHEEL- 225/50R/18,ALUMINUM,ACCESSORY3,TYPE L:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-21280i201610-202010
16X4T,SPARE TIRE-TEMPORARY(T145/90D16),TYPE E:REFER ILLUST.
main42611-21280i201909-202010
16X4T,ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE E:REFER ILLUST.
main42611-21280i201909
16X4T,HONG KONG, MACAU SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE E:REFER ILLUST.
main42611-21280i201909-202010
16X4T,TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE E:REFER ILLUST.
main42611-21280i201909-202201
16X4T,TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE E:REFER ILLUST.
main42611-30F30i201610-201701
18X4T,TYPE E:REFER ILLUST.
sub42611-30F31
main42611-30F30i201610-201701
18X4T,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-30F31
main42611-30F30i201610-201701
18X4T,SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-30F31
main42611-30F30i201610-201701
18X4T,SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
sub42611-30F31
main42611-30F31i201702-201811
18X4T,TYPE E:REFER ILLUST.
sub42611-30F32
main42611-30F31i201702-201811
18X4T,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-30F32
main42611-30F31i201702-201811
18X4T,SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-30F32
main42611-30F31i201702-201811
18X4T,SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
sub42611-30F32
main42611-30F32i201909-202010
18X4T,SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
main42611-30F32i201909-202010
18X4T,ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
main42611-30F32i201909-202201
18X4T,TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
main42611-30F32i201909-202103
18X4T,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
main42611-30F32i201909-202310
18X4T,SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
main42611-30F32i201909-202112
18X4T,TYPE E:REFER ILLUST.
main42611-30F32i201909
18X4T,CHILE SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
main42611-F4010i202010-202112
17X6.5J,#,MID- PACKAGE&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-F4010i201610-201909
17X6.5J,#,TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-F4010i202010
17X6.5J,#,TIRE & DISC WHEEL-215/60R17,STEEL&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-F4010i202010
17X6.5J,#,TIRE & DISC WHEEL-215/60R17,STEEL,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-F4010i201610-201909
17X6.5J,#,SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
main42611-F4030i201610-201909
17X6.5J, #,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main42611-F4030i201610-201909
17X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main42611-F4030i201610-201909
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main42611-F4030i201610-201909
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
main42611-F4140i201909-202010
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
main42611-F4140i201909-202010
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
main42611-F4140i201909-202112
17X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
main42611-F4140i201909
17X6.5J, #,CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARETIRE-GROUND TIRE,TYPE G:REFER ILLUST.
main42611-F4140i201909-202201
17X6.5J, #,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
main42611-F4200i201909-202201
16X4T,TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE K:REFER ILLUST.
main42611-F4200i201812-202010
16X4T,SPARE TIRE-TEMPORARY(T145/90D16),TYPE K:REFER ILLUST.
main42611-F4200i201909-202010
16X4T,TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE K:REFER ILLUST.
main42611-F4200i201909
16X4T,HONG KONG, MACAU SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE K:REFER ILLUST.
main42611-F4200i201909-202010
16X4T,ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/90D16),TYPE K:REFER ILLUST.
main42611-F4210i201812-202112
18X4T,TYPE K:REFER ILLUST.
main42611-F4210i201812-201909
18X4T,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE K:REFER ILLUST.
main42611-F4210i201812-201909
18X4T,SPARE TIRE-GROUND TIRE,TYPE K:REFER ILLUST.
main42611-F4210i201812-202010
18X4T,SPARE TIRE-TEMPORARY(T145/70D18),TYPE K:REFER ILLUST.
main42611-F4210i201909-202010
18X4T,ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE K:REFER ILLUST.
main42611-F4210i201909-202201
18X4T,TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE K:REFER ILLUST.
main42611-F4210i201909
18X4T,CHILE SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE K:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01007i202010-202112
MID- PACKAGE&TIRE & DISC WHEEL-215/60R17,STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.
main90942-01007i202010
TIRE & DISC WHEEL-215/60R17,STEEL,GENERAL COUNTRIES,TYPE A:REFER ILLUST.
main90942-01007i202010
TIRE & DISC WHEEL-215/60R17,STEEL,TYPE A:REFER ILLUST.
main90942-01007i201610-201909
TYPE A:REFER ILLUST.
main90942-01033i202201
TIRE & DISC WHEEL- 225/50R/18,ALUMINUM,ACCESSORY3,TYPE B:REFER ILLUST.
main90942-01033i201610-202201
TYPE B:REFER ILLUST.
main90942-01033i201610-201909
TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYPE B:REFER ILLUST.
main90942-01033i202201
TIRE & DISC WHEEL-215/60R17,ALUMINUM,TYPE B:REFER ILLUST.
main90942-01033i202201
TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES,TYPE B:REFER ILLUST.
main90942-01033i202201
TIRE & DISC WHEEL-225/50R18,ALUMI,ACCESSORY(POWDER COAT),TYPE B:REFER ILLUST.
main90942-01033i202201
TIRE & DISC WHEEL-225/50R18,ALUMINUM,GRAY,TYPE B:REFER ILLUST.
main90942-01033i202201
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY,TYPE B:REFER ILLUST.
main90942-01033i202201
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY,*GEC,TYPE B:REFER ILLUST.
main90942-01115i202010-202012
TIRE & DISC WHEEL-215/60R17,FOR GR SPORT,TYPE B:REFER ILLUST.
main90942-01115i202010-202112
GR SPORT&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT,TYPE B:REFER ILLUST.
main90942-01115i202010
GR SPORT&TIRE & DISC WHEEL-225/45R19,FOR GR SPORT,TYPE B:REFER ILLUST.
main90942-01115i202201
TIRE & DISC WHEEL-225/50R18,ALUMINUM,ACCESSORY,TYPE B:REFER ILLUST.
main90942-01115i202201
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-F4010i202010
TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main42607-F4010i202010
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
main42607-F4010i201610-202201
MEXICO SPEC
main42607-F4010i201610-202201
MEXICO SPEC&SPARE TIRE-GROUND TIRE
main42607-F4010i201909
CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-TEMPORARY(T145/70D18)
main42607-F4010i201909
CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42607-F4010i201909-202010
TAIWAN SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES
main42607-F4020i201610-202112
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-F4010i201610-202201
MEXICO SPEC&SPARE TIRE-GROUND TIRE
main42607-F4010i201909
CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42607-F4020i202012
UKRAINE SPEC&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
main42607-F4020i201610-201909
TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42607-F4020i201610-201909
TIRE & DISC WHEEL-215/60R/17 ALUMINUM&SPARE TIRE-GROUND TIRE
main42607-F4020i201610-201909
TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42607-F4020i201610-202112
SPARE TIRE-GROUND TIRE
main42607-F4020i201909-202010
TIRE & DISC WHEEL-215/60R17,ALUMINUM&SPARE TIRE-GROUND TIRE
main42607-F4020i201909-202010
TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42607-F4020i201909-202010
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY&SPARE TIRE-GROUND TIRE
main42607-F4020i201909-202112
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY,*GEC&SPARE TIRE-GROUND TIRE
main42607-F4020i202010-202112
MID- PACKAGE&SPARE TIRE-GROUND TIRE
main42607-F4020i202012-202112
TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
main42607-F4020i202010
TIRE & DISC WHEEL-215/60R17,STEEL&SPARE TIRE-GROUND TIRE
main42607-F4020i202010
TIRE & DISC WHEEL-215/60R17,STEEL,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42607-F4020i202012
GEORGIA SPEC&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i201909-202010
ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
main90942-05009i201610-202103
MEXICO SPEC&SPARE TIRE-GROUND TIRE
main90942-05009i201610-202310
SPARE TIRE-GROUND TIRE
main90942-05009i201610-202010
SPARE TIRE-TEMPORARY(T145/90D16)
main90942-05009i201610-202010
SPARE TIRE-TEMPORARY(T145/70D18)
main90942-05009i201909-202010
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
main90942-05009i201909-202010
ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/70D18)
main90942-05009i201909-202201
TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
main90942-05009i201909-202201
TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/70D18)
main90942-05009i201909-202112
main90942-05009i201909
CHILE SPEC&SPARE TIRE-TEMPORARY(T145/70D18)
42611UCAP, TIRE VALVE
main90942-W5001i201610-202112
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-W5001i201610-202201
MEXICO SPEC&SPARE TIRE-GROUND TIRE
main90942-W5001i201610-201909
TIRE & DISC WHEEL-215/60R/17 STEEL GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main90942-W5001i201610-201909
TIRE & DISC WHEEL-215/60R/17 ALUMINUM&SPARE TIRE-GROUND TIRE
main90942-W5001i201610-201909
TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main90942-W5001i201610-202112
SPARE TIRE-GROUND TIRE
main90942-W5001i201909-202010
TIRE & DISC WHEEL-215/60R17,ALUMINUM&SPARE TIRE-GROUND TIRE
main90942-W5001i201909-202010
TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main90942-W5001i201909-202010
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY&SPARE TIRE-GROUND TIRE
main90942-W5001i201909-202112
TIRE & DISC WHEEL-215/60R17,ALUMINUM,ACCESSORY,*GEC&SPARE TIRE-GROUND TIRE
main90942-W5001i202010-202112
MID- PACKAGE&SPARE TIRE-GROUND TIRE
main90942-W5001i202012-202112
TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
main90942-W5001i201909
CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main90942-W5001i202010
TIRE & DISC WHEEL-215/60R17,STEEL&SPARE TIRE-GROUND TIRE
main90942-W5001i202010
TIRE & DISC WHEEL-215/60R17,STEEL,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main90942-W5001i202012
UKRAINE SPEC&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
main90942-W5001i202012
GEORGIA SPEC&TIRE & DISC WHEEL-215/60R17,FOR GR SPORT&SPARE TIRE-GROUND TIRE
42652TIRE
main42652-F4050i201610-201909
215/60R17,MICHELIN
main42652-F4110i201610-201909
215/60R17
main42652-F4120i201610-201707
215/60R17,*D/L
main42652-F4121i201707-201909
215/60R17,*D/L
42652ATIRE (FOR SPARE)
main42652-F4050i201610-201909
215/60R17,MICHELIN,MEXICO SPEC&SPARE TIRE-GROUND TIRE
main42652-F4050i201610-201909
215/60R17,MICHELIN,SPARE TIRE-GROUND TIRE
main42652-F4050i201610-201909
215/60R17,MICHELIN,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42652-F4110i201610-201909
215/60R17,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42652-F4110i201610-201909
215/60R17,MEXICO SPEC&SPARE TIRE-GROUND TIRE
main42652-F4110i201610-201909
215/60R17,SPARE TIRE-GROUND TIRE
main42652-F4120i201610-201707
215/60R17,*D/L,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42652-F4120i201610-201707
215/60R17,*D/L,MEXICO SPEC&SPARE TIRE-GROUND TIRE
main42652-F4120i201610-201707
215/60R17,*D/L,SPARE TIRE-GROUND TIRE
main42652-F4121i201707-201909
215/60R17,*D/L,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
main42652-F4121i201707-201909
215/60R17,*D/L,MEXICO SPEC&SPARE TIRE-GROUND TIRE
main42652-F4121i201707-201909
215/60R17,*D/L,SPARE TIRE-GROUND TIRE
main4265A-30011i201610-201711
T145/70D18,*Y/H,MEXICO SPEC&SPARE TIRE-GROUND TIRE
sub4265A-30012
main4265A-30011i201610-201711
T145/70D18,*Y/H
sub4265A-30012
main4265A-30011i201610-201711
T145/70D18,*Y/H,SPARE TIRE-GROUND TIRE
sub4265A-30012
main4265A-30011i201610-201711
T145/70D18,*Y/H,SPARE TIRE-TEMPORARY(T145/70D18)
sub4265A-30012
main4265A-30012i201712-201909
T145/70D18,*Y/H,SPARE TIRE-TEMPORARY(T145/70D18)
main4265A-30012i201712-201909
T145/70D18,*Y/H
main4265A-30012i201712-201909
T145/70D18,*Y/H,MEXICO SPEC&SPARE TIRE-GROUND TIRE
main4265A-30012i201712-201909
T145/70D18,*Y/H,SPARE TIRE-GROUND TIRE
main4265A-F4010i201610-201909
T145/90D16,GOODYEAR,SPARE TIRE-TEMPORARY(T145/90D16)

12 parts on this diagram · 4 diagrams in section

DISC WHEEL & WHEEL CAP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
