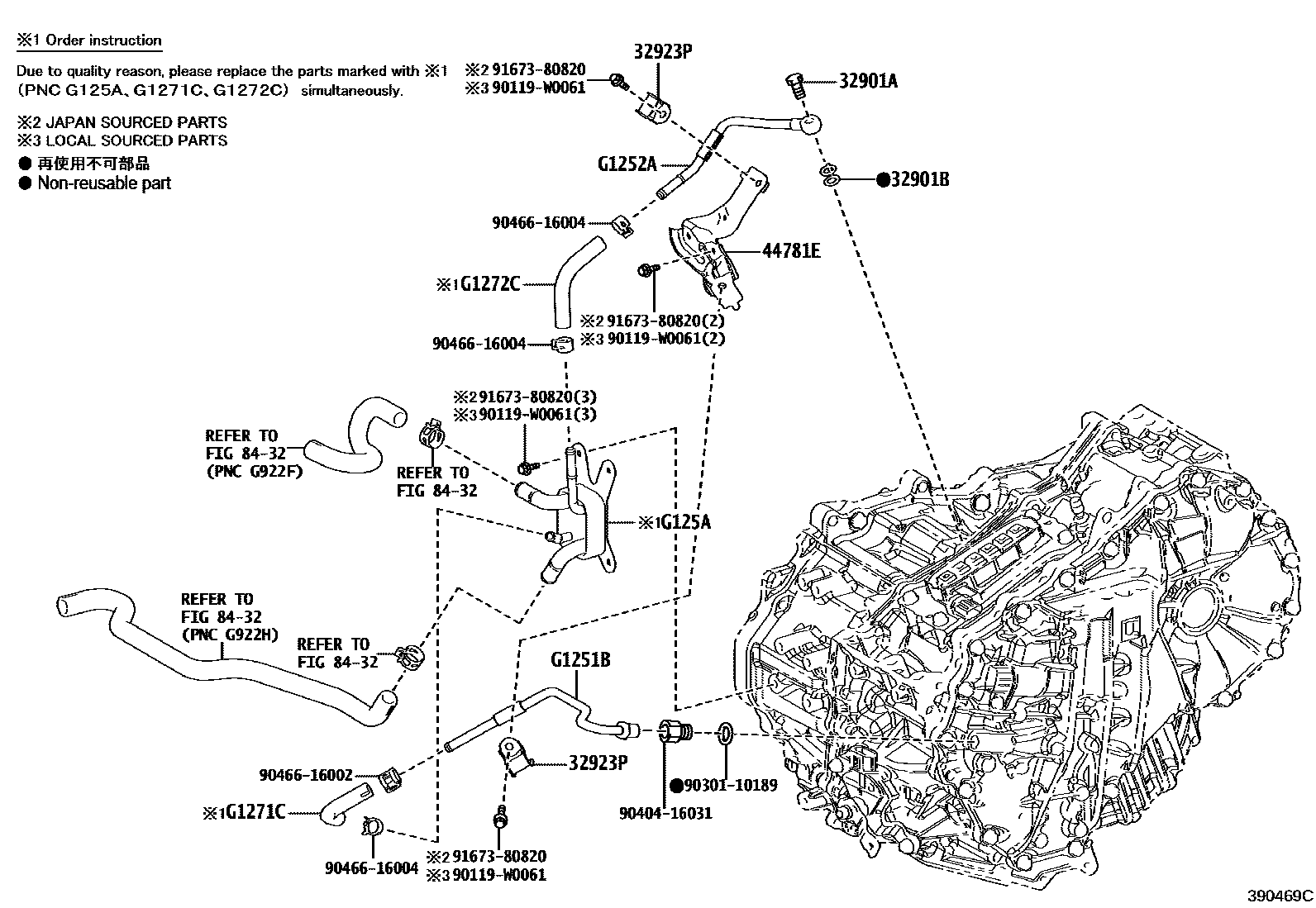

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iMAXH10,ZYX1#¥390201610-201909

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iMAXH10,ZYX1#¥80201610-201909

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iZYX10¥200201610-201909

44781EBRACKET, HOSE

main44781-12070iMAXH10¥320201909

main44781-47010iZYX10¥820201610-201909

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125112010iMAXH10201909

mainG125147010iZYX10201610-201909

G1252APIPE, MOTOR COOLING, NO.2

mainG125212010iMAXH10201909

mainG125247010iZYX10201610-201909

G125ACOOLER, MOTOR COOLING

mainG125A12010iMAXH10201909

mainG125A47010iZYX10201610-201909

G1271CHOSE, MOTOR COOLING, NO.1

mainG127112010iMAXH10201909

mainG127147010iZYX10201610-201909

G1272CHOSE, MOTOR COOLING, NO.2

mainG127212010iMAXH10201909

mainG127247010iZYX10201610-201909

90119W0061

main90119-W0061¥80

9030110189

main90301-10189¥170

9040416031

main90404-16031¥340

9046616002

main90466-16002¥220

9046616004

main90466-16004¥180

9167380820

main91673-80820¥80

16 parts on this diagram · 2 diagrams in section
