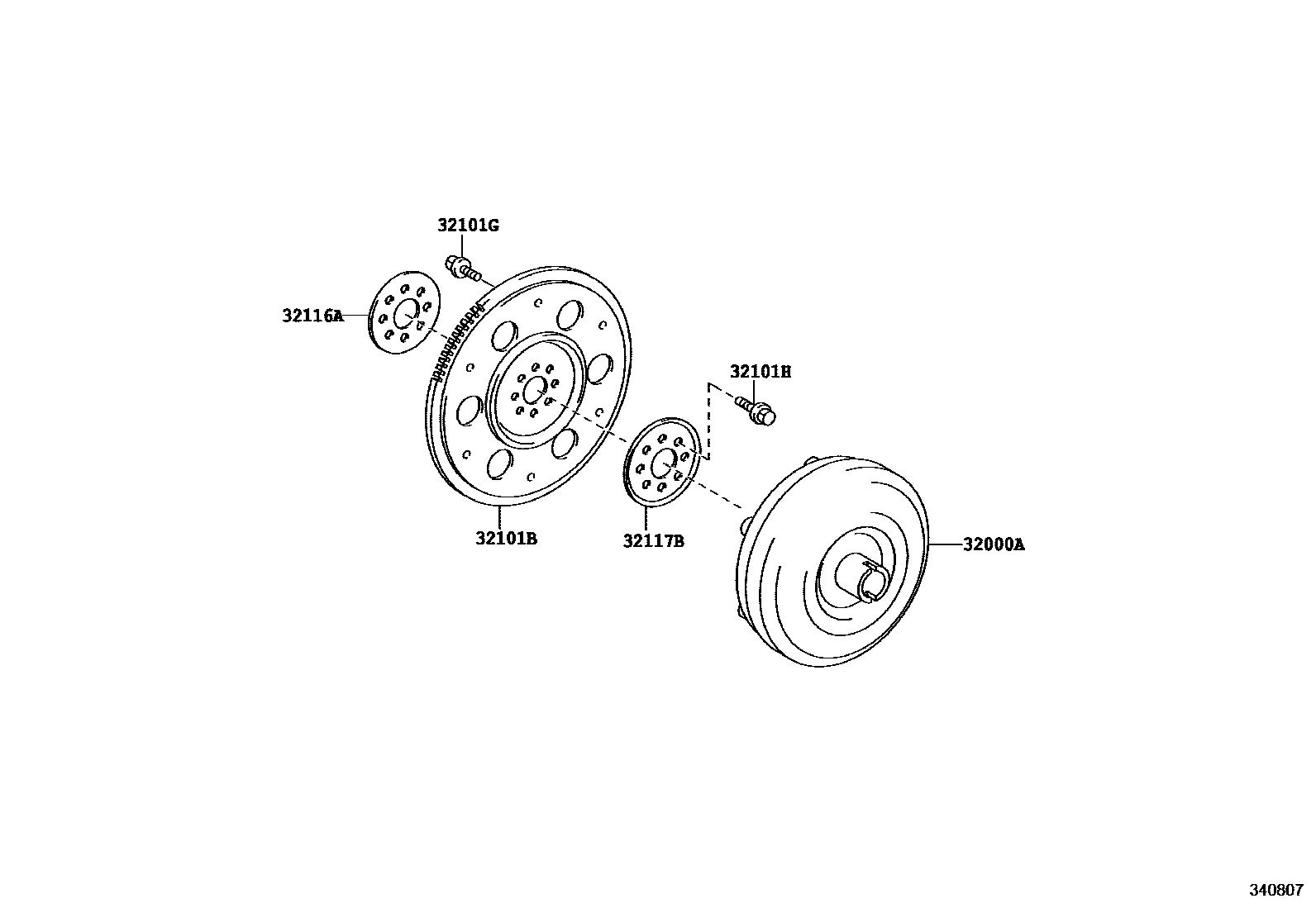

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K313,K313F 0002 1K114

32000ACONVERTER ASSY, TORQUE

main32000-12450iNGX10,50..CVT201610-201711

sub32000-12451

main32000-12451iNGX10,50..CVT201712-201909

main32000-28191iZGX10201610-201909

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iNGX10,50..CVT201610-201909

main32101-28050iZGX10201610-201909

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNGX10,50..CVT201610-201909

*8-1.25PX12-8.4,BLACK

main90109-09001iZGX10201610-201909

*9-1.25PX12.4-7.3,BLACK

main90119-08498iNGX10,50..CVT201610-201909

*8-1.25PX12-8,SILVER WHITE

main90119-09025iZGX10201610-201909

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNGX10,50,ZGX10..CVT201610-201909

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNGX10,50,ZGX10..CVT201610-201909

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNGX10,50,ZGX10..CVT201610-201909

6 parts on this diagram · 2 diagrams in section
