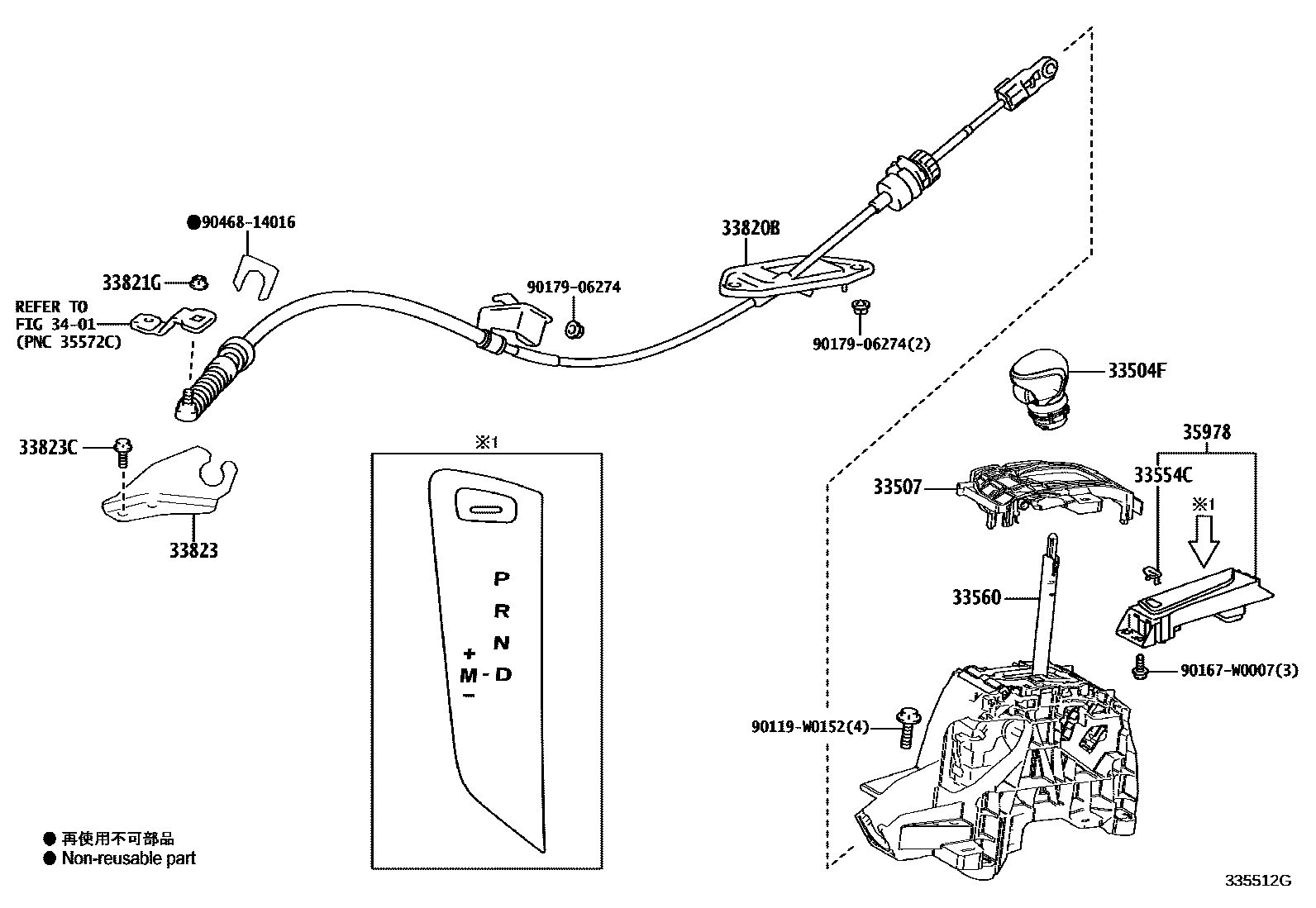

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-05052-C0iNGX10..6F..E201909-202112

BLACK,TRIM2#,8#

main33504-05052-C0iNGX10..6F..E201909-202112

BLACK,TRIM2#,4#

main33504-05052-C0iNGX10..6F..E201909-202112

BLACK,TRIM2#

main33504-10070-C2iNGX10,50,ZGX10,ZYX10..CVT201610-201804

BLACK,TRIM2#

sub33504-10071

main33504-10071-C2iZYX10..LHD..(E,G,K);MAXH10,NGX10,50,ZGX10,ZYX11..CVT..(E,G,K)201909

BLACK,TRIM2#,4#,8#

main33504-10071-C2iNGX10,50,ZGX10,ZYX10..CVT201805-201909

BLACK,TRIM2#

main33504-10071-C2iZYX10..RHD..G201909

BLACK,TRIM2#,8#

main33504-F4010-C2iNGX10..6F201610-201909

BLACK,TRIM2#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-F4010iNGX10,50,ZGX10,ZYX10..LHD..CVT201610-201909

main33507-F4020iNGX10,50,ZYX10..RHD..CVT201610-201909

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-F4010iNGX10,50,ZGX10,ZYX10..LHD..CVT201610-201909

main33554-F4020iNGX10,50,ZYX10..RHD..CVT201610-201909

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-F4010iNGX50,ZGX10..(G,K,N)..RUS201610-202201

main33560-F4020iNGX10,50..RHD..CVT..(G,N)201610-202009

main33560-F4030iNGX10,50,ZGX10..LHD..CVT..E201610-201909

WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))

main33560-F4030iNGX50,ZGX10..G,K,N202201

main33560-F4040iNGX10,50..RHD..CVT..(G,N)201610-201909

WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))

main33560-F4040iMAXH10..RHD;NGX10..RHD..CVT..(E,G)201909

main33560-F4050iZYX1#..LHD201610-201909

main33560-F4060iZYX10..RHD201610-201909

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-F4010iNGX10..6F201610-202112

main33820-F4020iNGX10,50..CVT201610-201909

main33820-F4030iZGX10201610-201909

main33820-F4040iZYX10201610-201909

main33820-F4090iMAXH10201909

main33820-F4100iZYX1#201909-202009

main33820-F4130iZYX1#202010

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-W0031iNGX10,50,ZGX10,ZYX10..CVT201610-201909

main90178-W0031iMAXH10201909

(J),TYPE B:REF ILL.

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12190iNGX10,50..CVT201610-201909

main33823-12350iMAXH10201909

main33823-28300iZGX10201610-201909

main33823-F4010iZYX10201610-201909

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iNGX10,50,ZGX10,ZYX1#..CVT201909

(J),TYPE A:REF ILL.

main90119-08079iNGX10,50,ZGX10,ZYX10..CVT201610-201909

(J)

main90119-08C60iNGX10..6F201610-202112

(J)

main90119-W0016iNGX10,50,ZGX10,ZYX10..CVT201610-201909

(L)

sub90119-08026

main90119-W0016iMAXH10201909

(L),TYPE A:REF ILL.

sub90119-08026

main90119-W0255iNGX10..6F201610-202112

(L)

main91671-80820iMAXH10201909

TYPE B:REFER ILLUST.

3401

35978INDICATOR, SHIFT POSITION

main35978-F4010iNGX10,50,ZGX10..LHD..CVT201610-201909

main35978-F4020iNGX10..RHD..CVT201610-202009

main35978-F4040iZYX10..LHD201610-201909

main35978-F4050iZYX1#..RHD201610-201909

main35978-F4110iMAXH10..LHD201909

main35978-F4120iMAXH10..RHD201909

90119W0152

main90119-W0152

90167W0007

main90167-W0007

9017906274

main90179-06274

9046814016

main90468-14016

14 parts on this diagram · 8 diagrams in section
