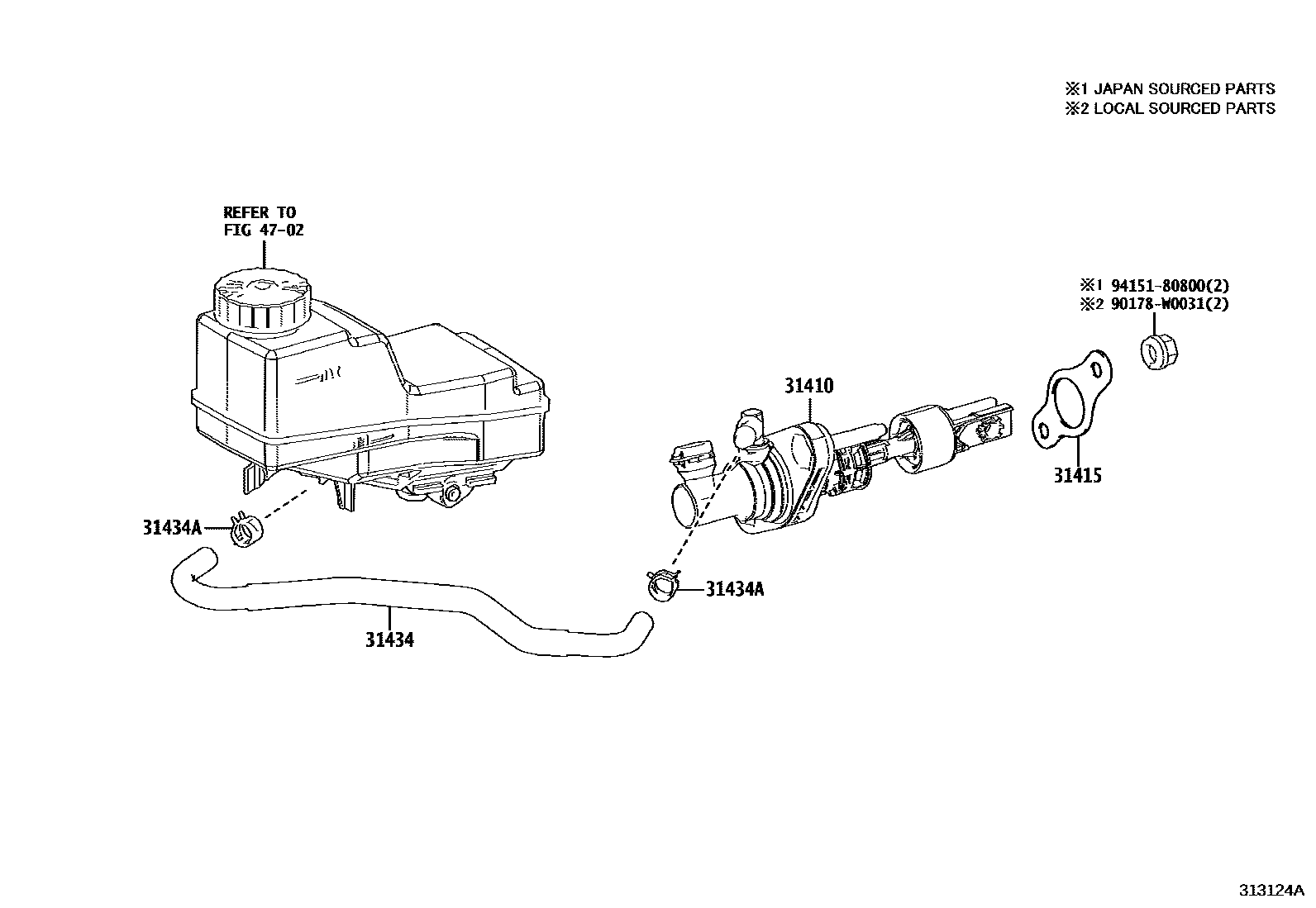

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-F4010iNGX10..6F201610-201805

main31420-F4011iNGX10..6F201805-202112

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iNGX10..6F201610-202112

31434TUBE, CLUTCH RESERVOIR

main31434-F4010iNGX10..LHD..6F201610-202112

main31434-F4020iNGX10..RHD..6F201610-202009

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41501iNGX10..6F201610-202112

4702

90178W0031

main90178-W0031

9415180800

main94151-80800

7 parts on this diagram · 2 diagrams in section
