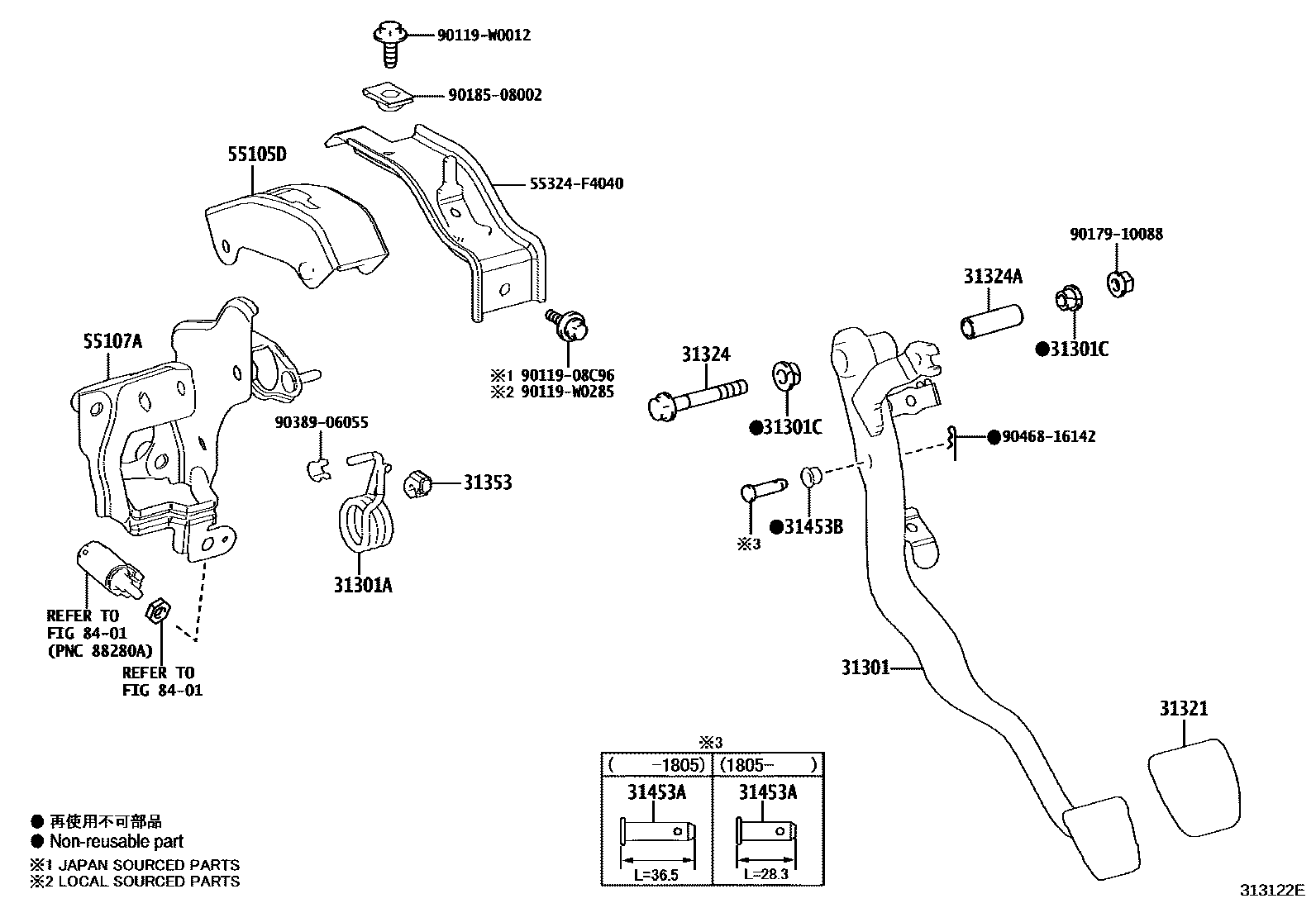

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-F4010iNGX10..LHD..6F201610-202112

main31301-F4020iNGX10..RHD..6F201610-202009

31301ASPRING(FOR CLUTCH PEDAL)

main31394-02010iNGX10..RUS202109-202112

main90949-03068iNGX10..6F201610-202108

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNGX10..6F201610-202112

31321PAD, CLUTCH PEDAL

main31321-42010iNGX10..6F201610-202112

31324SHAFT, CLUTCH PEDAL

main90105-10524iNGX10..6F201610-202112

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNGX10..6F201610-202112

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iNGX10..6F201610-202112

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08083iNGX10..6F201610-201805

L=36.5

main90240-W0001iNGX10..6F201805-202112

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iNGX10..6F201610-202112

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-F4010iNGX10..LHD..6F201610-202112

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-F4010iNGX10..LHD..6F201610-202112

main55107-F4020iNGX10..RHD..6F201610-202009

8401

55324F4040BRACKET, HEADLAMP DOOR

main55324-F4040

9011908C96

main90119-08C96

90119W0012

main90119-W0012

90119W0285

main90119-W0285

9017910088

main90179-10088

9018508002

main90185-08002

9038906055

main90389-06055

9046816142

main90468-16142

20 parts on this diagram · 4 diagrams in section
