22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010i201909-202304

*132

main22030-47080i201909-202112

main22030-F2040i201909

*613

22271GASKET, THROTTLE BODY

main22271-0Y050i202304

(L)

main22271-24020i201909

main22271-37020i201610-201909

main22271-47060i201909

(J)

main22271-75031i201909

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040i201909-202304

*132

main23101-47010i201610-201909

sub23101-47080

main23101-47020i201805-201909

sub23101-47090

main23101-F2010i201909

*613

23191FLANGE, FUEL PUMP

main23191-25050i201909-202304

*132

main23214-F2020i201909

*613

23224DGASKET, FUEL PUMP SPACER

main23224-25010i201909-202106

*132

main23224-25011i202107-202304

*132

main23224-47010i201909

23250INJECTOR ASSY, FUEL

main23209-09370×4i201909

(L)

main23209-39235×4i201610-201909

main23209-39295×4i201610-201909

(J)

main23209-39375×4i201909

MARK 23250-37110

main23209-47070-01×4i201610-201909

MARK 1,MARK23250-47070,*RRM

main23209-47070-02×4i201909-202112

MARK 2,REFER REPAIR MANUAL

main23209-47070-03×4i201909

MARK 3,REFER REPAIR MANUAL

main23209-47100-01×4i201805-201909

MARK 1,MARK23250-47100,*RRM

main23209-47100-02×4i201909

MARK 2,REFER REPAIR MANUAL

main23209-47100-03×4i201805-201909

MARK 3,MARK23250-47100,*RRM

main23209-47100-04×4i201805-201909

MARK 4,MARK23250-47100,*RRM

main23209-47100-05×4i201909

MARK 5,REFER REPAIR MANUAL

main23209-47100-06×4i201805-201909

MARK 6,MARK23250-47100,*RRM

main23209-47100-07×4i201909

MARK 7,REFER REPAIR MANUAL

main23209-47100-08×4i201805-201909

MARK 8,MARK23250-47100,*RRM

main23209-47100-09×4i201805-201909

MARK 9,MARK23250-47100,*RRM

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011×4i201610-201805

main90301-05013×4i201909-202112

main90301-07037×4i201909-202304

(J),*132

main90301-A0036×4i201909

(L),*613

main90301-C0072×4i201909-202304

(L),*132

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4i201909

MARK 1,*613,(J):REFER R/M

main23209-24010-02×4i201909-202304

MARK 2,*132:REFER R/M

main23209-24010-03×4i201909-202304

MARK 3,*132:REFER R/M

main23209-24010-04×4i201909-202304

MARK 4,*132:REFER R/M

main23209-24010-05×4i201909

MARK 5,*613,(J):REFER R/M

main23209-24010-06×4i201909-202304

MARK 6,*132:REFER R/M

main23209-24010-07×4i201909

MARK 7,*613,(J):REFER R/M

main23209-24010-08×4i201909

MARK 8,*613,(J):REFER R/M

main23209-24010-09×4i201909-202304

MARK 9,*132:REFER R/M

main23209-F2050-01×4i201909

MARK 1,*613,(L):REFER R/M

main23209-F2050-02×4i201909

MARK 2,*613,(L):REFER R/M

main23209-F2050-03×4i201909

MARK 3,*613,(L):REFER R/M

main23209-F2050-04×4i201909

MARK 4,*613,(L):REFER R/M

main23209-F2050-05×4i201909

MARK 5,*613,(L):REFER R/M

main23209-F2050-06×4i201909

MARK 6,*613,(L):REFER R/M

main23209-F2050-07×4i201909

MARK 7,*613,(L):REFER R/M

main23209-F2050-08×4i201909

MARK 8,*613,(L):REFER R/M

main23209-F2050-09×4i201909

MARK 9,*613,(L):REFER R/M

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29125×4i201909-201911

*132

main23209-29185×4i201911-202304

*132

main23209-F9010×4i201909-201911

*613

23255ASEAL, FUEL INJECTOR

main23255-25010×4i201909-202304

*132

main23255-31020×4i201610-201901

main23255-31030×4i201902-201909

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i201805-201909

main23256-31010×4i201610-201805

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-36010×4i201805-201909

main23258-47010×4i201909

*613,LIGHT BLUE

main23258-47030×4i201909

*613,ORANGE

23291INSULATOR, INJECTOR VIBRATION

main23291-0D020×4i201909

*613

main23291-23010×4i201610-201909

TYPE A:REFER ILLUST.

main23291-28020×4i201909

TYPE B:REFER ILLUST.

main23291-31020×4i201610-201909

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i201909-202304

*132

23470LIFTER ASSY, FUEL PUMP

main23470-25010i201909-202304

*132

main23470-36020i201909-202112

main23470-F2010i201909

*613

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i201909-202304

*132

main23477-47010i201909-202112

main23477-F2060i202106

(L),*613

23695ACLAMP, NOZZLE HOLDER

main23695-24010×4i201909

*613

main23695-31020×4i201909-202112

main23695-70010×4i201909

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070i201909

*613

main23801-47030i201610-201909

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020i201909-202304

*132

main23814-37051i201610-201909

main23814-37100i201610-201909

23814BPIPE, FUEL DELIVERY

main23800-47020i201610-201805

MARK = WHITE

main23800-47030i201909

main23814-24010i201909-202210

*132,*613

main23814-24011i202211

*613

23825GUARD, FUEL DELIVERY

main23825-24010i201909

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37081i201909

main23841-37090i201610-201909

23841KCLAMP, FUEL PIPE

main23841-0Y070i201610-201909

main23841-25040i201909

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-37131i201610-201909

main23841-47050i201909

main23842-22020i201610-201909

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i201909-202304

*132

main23851-F2050i201909

(L),*613

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i201909-202106

*613

main23851-F2030i202106

(L),*613

23891SPACER, FUEL DELIVERY

main23891-24010×2i201909-202304

*132

23901TUBE SUB-ASSY, FUEL

main23901-0T200i201610-201804

main23901-0T210i201909-202208

main23901-0T211i202209

main23901-0T220i201610-201804

main23901-0T221i201909

main23901-0Y060i201610-201803

MARK = PINK

main23901-0Y371i201803-201909

MARK = WHITE

main23901-F2041i201909

23910ATUBE SUB-ASSY, FUEL

main23901-24081i201909

(J)

main23901-F2130i201909

(L)

7701

8404

9010506350

main90105-06350

9010506351

main90105-06351

9010506352

main90105-06352

9010508510

main90105-08510

90105W0299

main90105-W0299

90105W0300

main90105-W0300

90105W0301

main90105-W0301

90105W0307

main90105-W0307

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

91553G1040

main91553-G1040

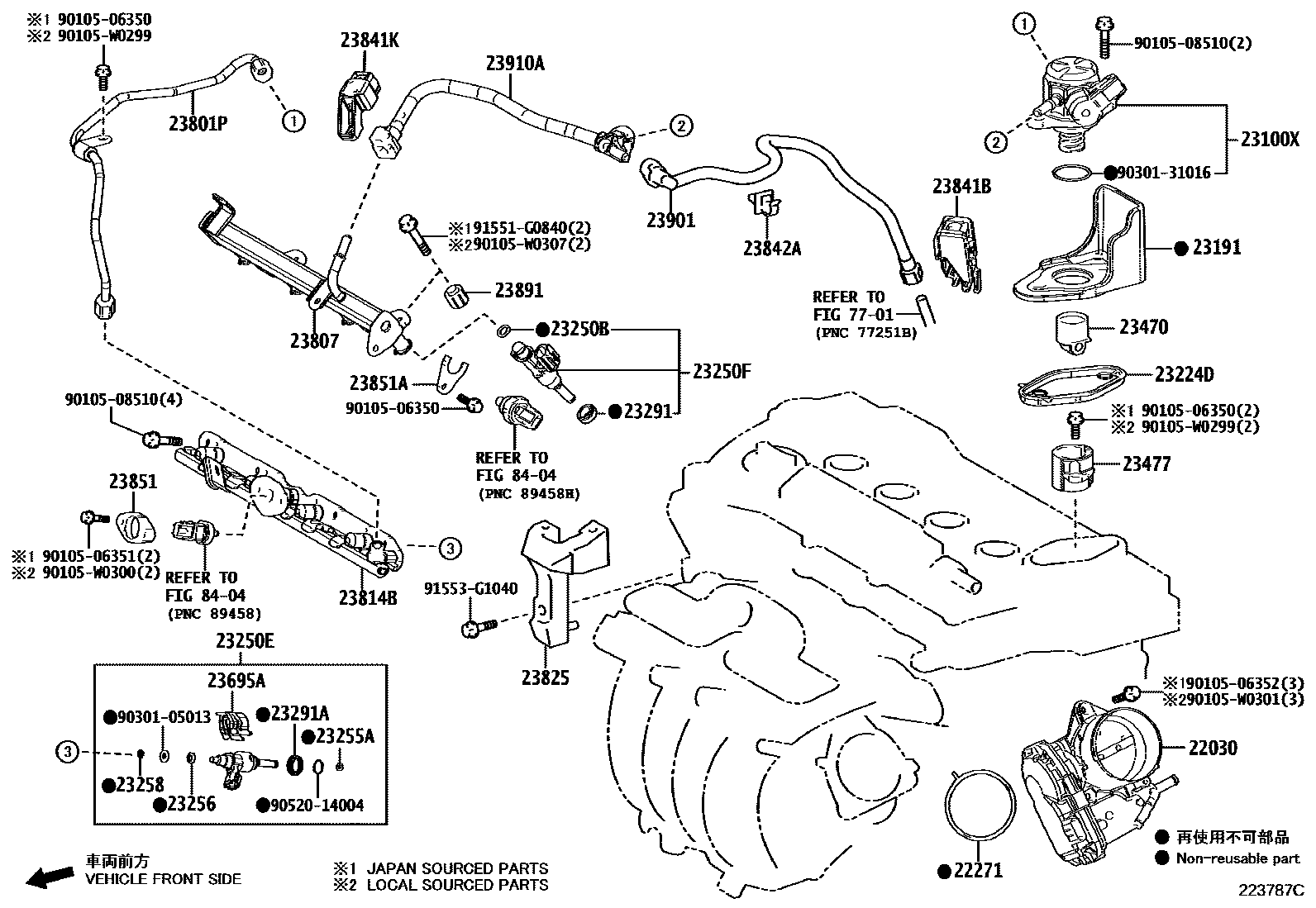

FUEL INJECTION SYSTEM
