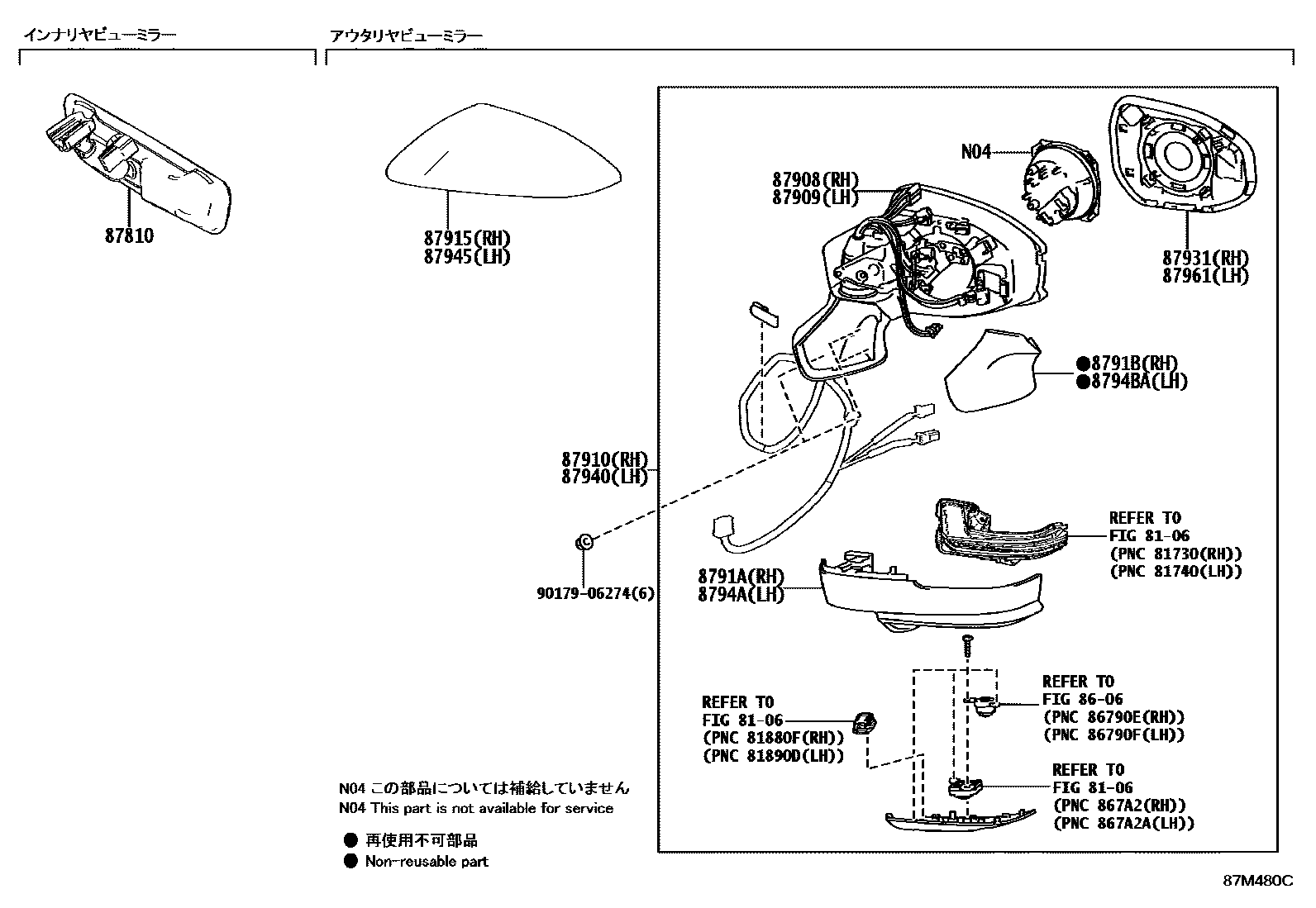

MIRROR

8106

8606

87810MIRROR ASSY, INNER REAR VIEW

main87840-0W360supersedes 87840-0W460iMAXH2#,ZYX20..E,G,K202310

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87925-F4280iMAXH2#,ZYX20202310

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87925-F4280iMAXH2#,ZYX20202310

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-F4350supersedes 87910-F4340iMAXH2#,ZYX20..RHD..(E,G,K)..EUR202310

NO PAINT REQ.,PERIPHERAL MONITOR CAMERA-WITH(*PVM)

main87910-F4310supersedes 87910-F4300iMAXH2#,ZYX20..LHD..(E,G,K)202310

NO PAINT REQ.,PERIPHERAL MONITOR CAMERA-WITH(*PVM)

87915COVER, OUTER MIRROR, RH

main87915-F4050iMAXH2#,ZYX20202310

NO PAINT REQ.

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-F4300supersedes 8791A-F4280iZYX20..N..ARL;MAXH2#,ZYX20..E,G,K202310

OUTSIDE REAR VIEW MIRROR-HEATER & *BSM & LOGO LAMP

8791BHANGER SUB-ASSY, OUTER MIRROR, RH

main8791B-F4280iMAXH2#,ZYX20..LHD202310

main8791B-F4320iMAXH2#,ZYX20..RHD202310

87931OUTER MIRROR, RH

main87931-F4280iMAXH2#,ZYX20202310

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-F4350supersedes 87940-F4340iMAXH2#,ZYX20..RHD..(E,G,K)..EUR202310

NO PAINT REQ.,PERIPHERAL MONITOR CAMERA-WITH(*PVM)

main87940-F4310supersedes 87940-F4300iMAXH2#,ZYX20..LHD..(E,G,K)202310

NO PAINT REQ.,PERIPHERAL MONITOR CAMERA-WITH(*PVM)

87945COVER, OUTER MIRROR, LH

main87945-F4050iMAXH2#,ZYX20202310

NO PAINT REQ.

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-F4300supersedes 8794A-F4280iZYX20..N..ARL;MAXH2#,ZYX20..E,G,K202310

OUTSIDE REAR VIEW MIRROR-HEATER & *BSM & LOGO LAMP

8794BACOVER, OUTER MIRROR, LH NO.3

main8794B-F4280iMAXH2#,ZYX20..LHD202310

main8794B-F4320iMAXH2#,ZYX20..RHD202310

87961MIRROR OUTER, LH

main87961-F4280iMAXH2#,ZYX20202310

9017906274

main90179-06274

16 parts on this diagram · 1 diagram in section
