SPEAKER

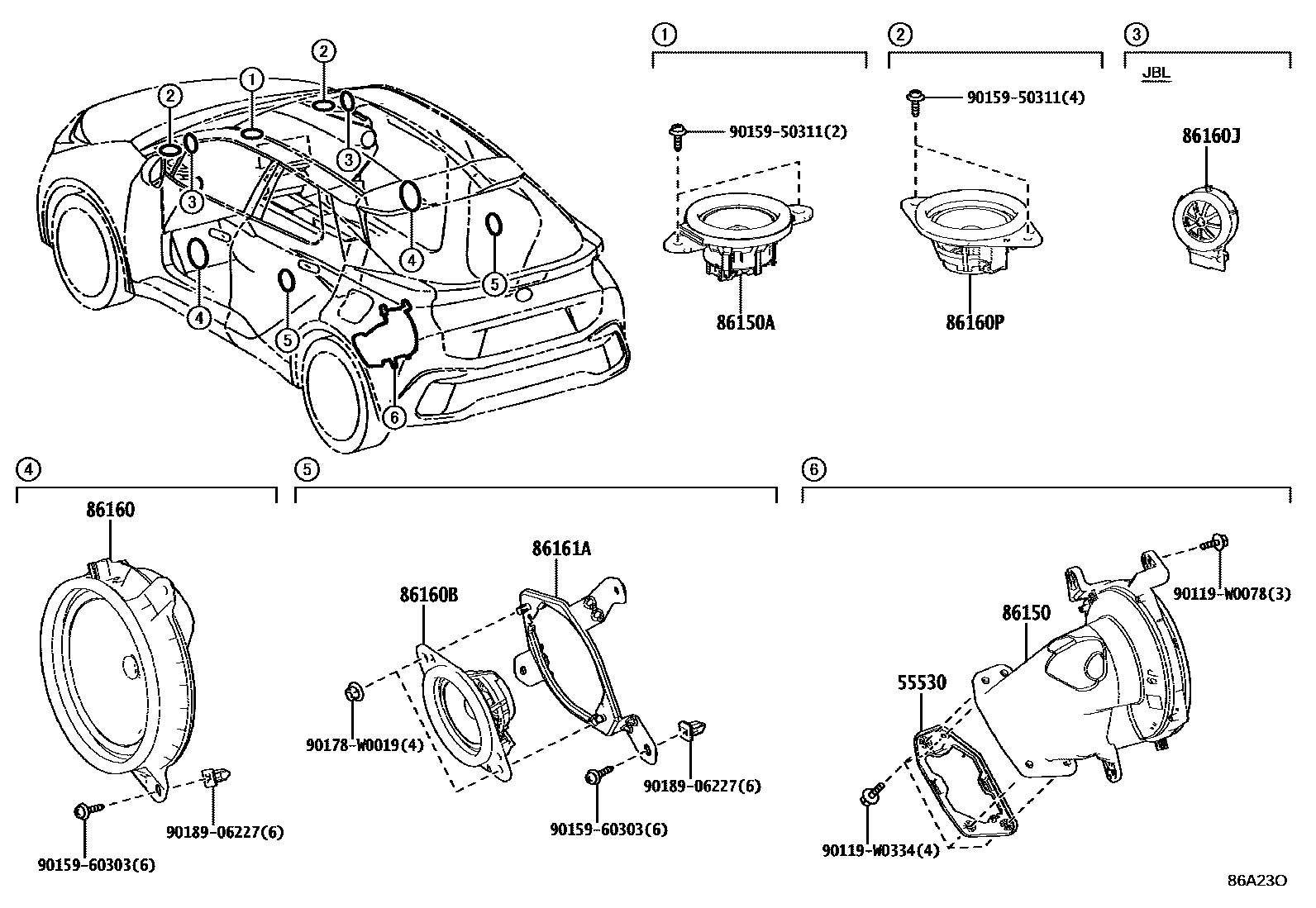

Parts diagram

55530COVER ASSY, SPEAKER OPENING

main55530-F4010i202310

AUDIO-EMV(12.3INCH)&SPEAKER-9SPEAKER(JBL)

86150SPEAKER ASSY, W/BOX, NO.1

main86150-F4010i202310

AUDIO-EMV(12.3INCH)&SPEAKER-9SPEAKER(JBL)

86150ASPEAKER ASSY, W/BRACKET, NO.2

main86150-F4090i202310

NEW ZEALAND SPEC

86160SPEAKER ASSY, FRONT NO.1

main86160-1A210×2i202310

main86160-F4090×2i202310

AUDIO-EMV(12.3INCH)&SPEAKER-9SPEAKER(JBL)

86160BSPEAKER ASSY, REAR

main86160-F4070×2i202310

main86160-F4080×2i202310

AUDIO-EMV(12.3INCH)&SPEAKER-9SPEAKER(JBL)

86160JSPEAKER ASSY, FRONT NO.3

main86150-F4070i202310

AUDIO-EMV(12.3INCH) , FOR TURKEY&SPEAKER-9SPEAKER(JBL),LH

main86150-F4080i202310

AUDIO-EMV(12.3INCH)&SPEAKER-9SPEAKER(JBL),RH

86160PSPEAKER ASSY, FRONT NO.2

main86160-F4060×2i202310

main86160-F4080×2i202310

AUDIO-EMV(12.3INCH)&SPEAKER-9SPEAKER(JBL)

86161ABRACKET, SPEAKER, REAR

main86161-F4010i202310

RH

main86161-F4020i202310

LH

90119W0078

main90119-W0078

90119W0334

main90119-W0334

9015950311

main90159-50311

9015960303

main90159-60303

90178W0019

main90178-W0019

9018906227

main90189-06227

14 parts on this diagram · 1 diagram in section
