REAR WASHER
8503
85348RJOINT, REAR WASHER HOSE, NO.1
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85348SJOINT, REAR WASHER ELBOW, NO.1
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85349KJOINT, REAR WASHER ELBOW, NO.2
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
COLD AREA SPEC&HEADLAMP CLEANER-WITH&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85372DGROMMET, REAR WASHER HOSE
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85372TGROMMET, WASHER
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
85379BGROMMET, WASHER, A
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
8606
867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT BRAKE-WITH & WITH(*RCTB & *PVM)&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
867FAFILTER, CLEANER HOSE
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
8271112A60WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12A60
8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12A80
8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B20
827111E150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E150
8271151040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-51040

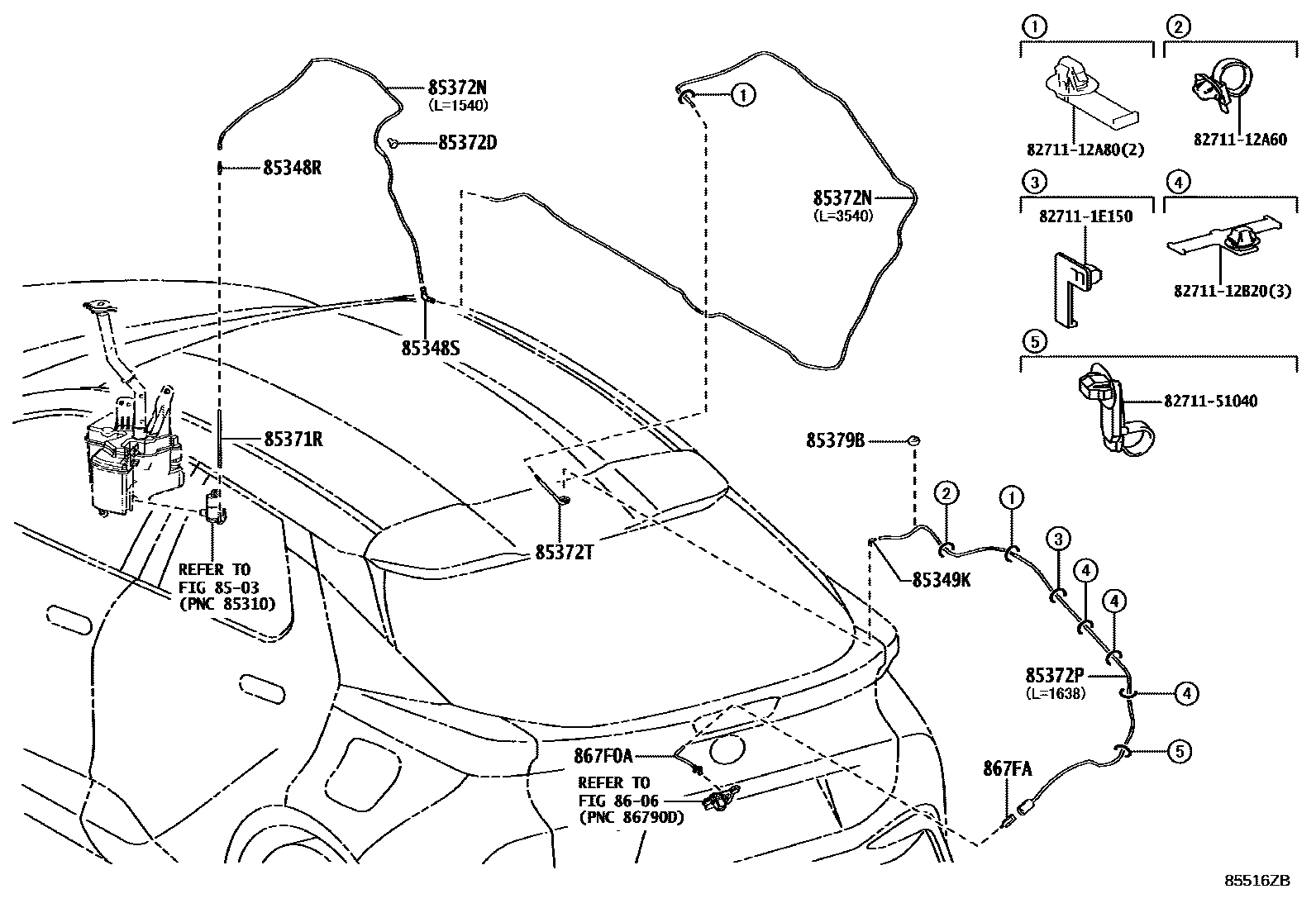

18 parts on this diagram · 3 diagrams in section
