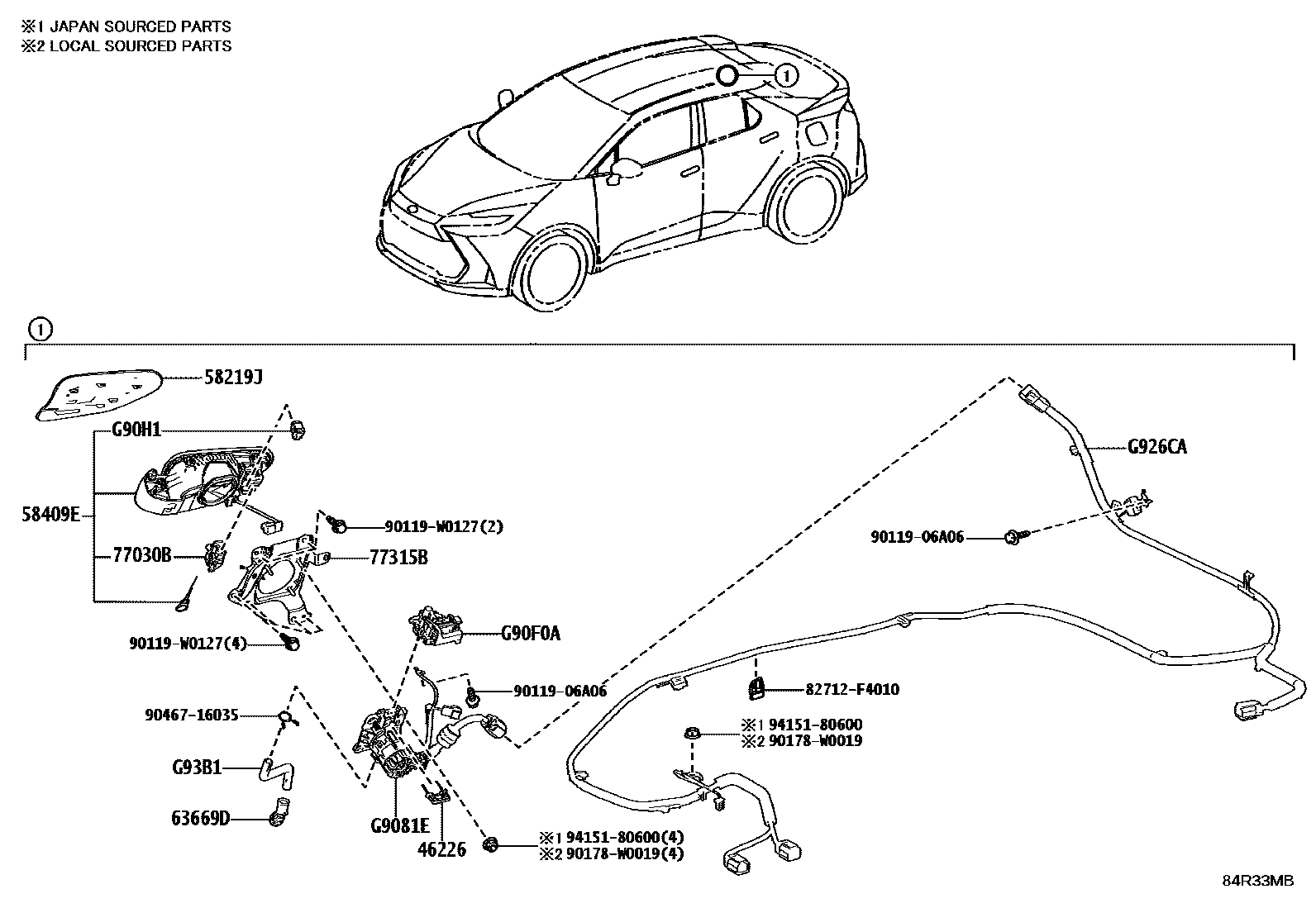

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

46226PIN, CONNECTOR

58219JCOVER, BATTERY BOX

58409ELID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

63669DGROMMET, DRAIN HOSE

77030BLOCK ASSY, CHARGE LID W/MOTOR

77315BPLATE, POWER SUPPLY CONNECTOR SUPPORT

G9081ECABLE, EV CHARGER

mainG908110031i202401

G90F0ALOCK ASSY, CABLE EV CHARGER

mainG90F076020i202401

G90H1INDICATOR , EV CHARGER LID

mainG90H110010i202401

G926CAWIRE, EV CHARGER

mainG926C10010i202401

G93B1HOSE, EV CHARGE CONNECTOR DRAIN, NO.1

mainG93B1F4010i202401

82712F4010CLAMP, WIRING HARNESS

9011906A06

90119W0127

90178W0019

9046716035

9415180600

17 parts on this diagram · 3 diagrams in section
