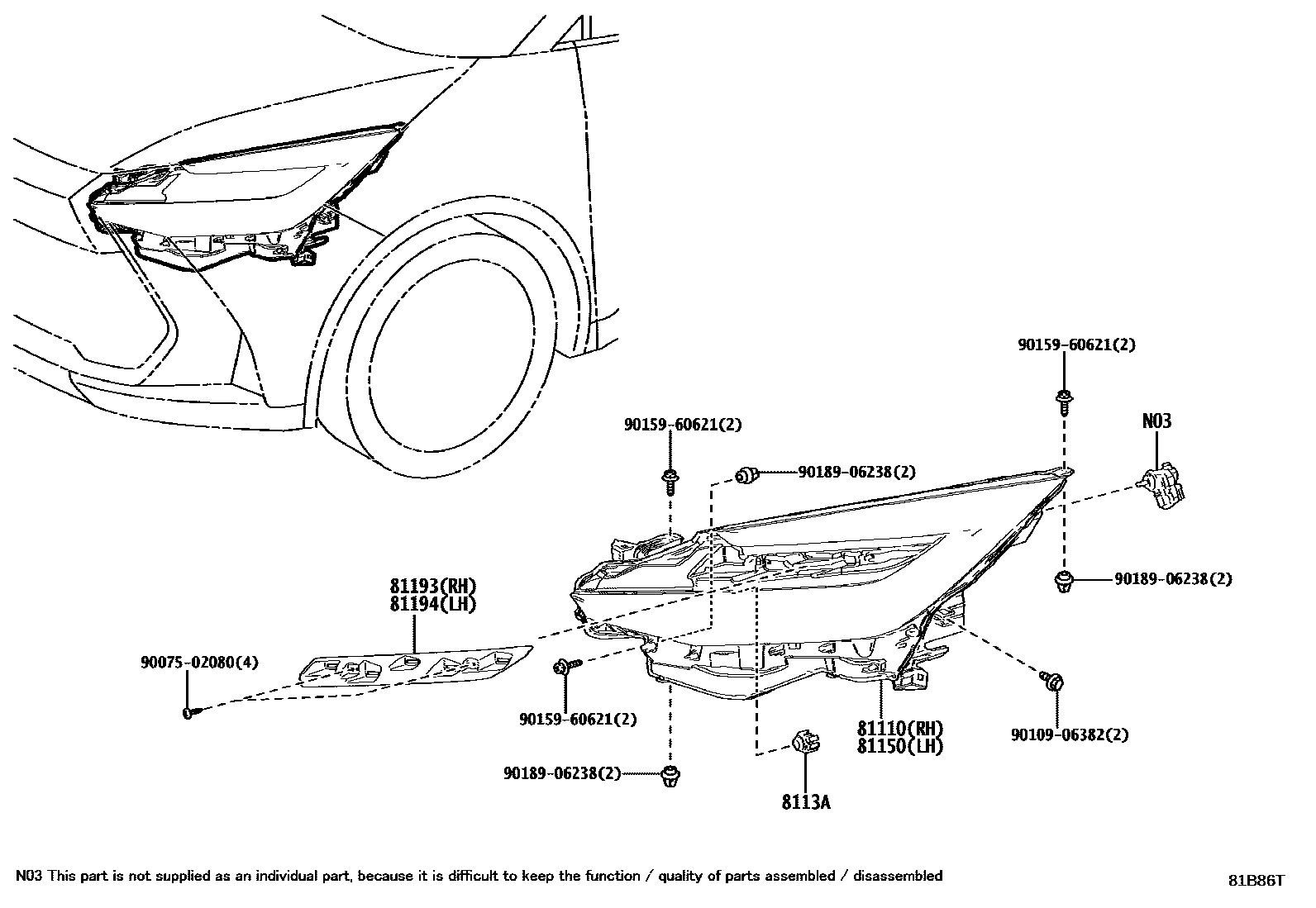

HEADLAMP

0001 1W/O(AUTOMATIC HIGH BEAM) 0002 1W(AUTOMATIC HIGH BEAM) 0003 1W(AUTO LEVELING)

81110HEADLAMP ASSY, RH

main81145-F4210iMAXH2#,ZYX20..RHD..(K,N)202310

main81145-F4220iMAXH2#,ZYX20..LHD..(K,N)202310

main81145-F4500supersedes 81145-F4230iMAXH20,25,ZYX20..(E,G)..ARL202310

HEADLAMP LIGHT CONTROL-WITH(AUTO LEVELING)

main81145-F4510supersedes 81145-F4240iMAXH2#,ZYX20..LHD..K202310

HEADLAMP LIGHT CONTROL-WITH(AUTO LEVELING)

8113ALED, HEADLAMP FRONT TURN SIGNAL

main81536-12D30×2iMAXH2#,ZYX20..K,N202310

81150HEADLAMP ASSY, LH

main81185-F4210iMAXH2#,ZYX20..RHD..(K,N)202310

main81185-F4220iMAXH2#,ZYX20..LHD..(K,N)202310

main81185-F4500supersedes 81185-F4230iMAXH20,25,ZYX20..(E,G)..ARL202310

HEADLAMP LIGHT CONTROL-WITH(AUTO LEVELING)

main81185-F4510supersedes 81185-F4240iMAXH2#,ZYX20..LHD..K202310

HEADLAMP LIGHT CONTROL-WITH(AUTO LEVELING)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81135-F4210iMAXH2#,ZYX20202310

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81175-F4210iMAXH2#,ZYX20202310

9007502080

main90075-02080

9010906382

main90109-06382

9015960621

main90159-60621

9018906238

main90189-06238

9 parts on this diagram · 3 diagrams in section
