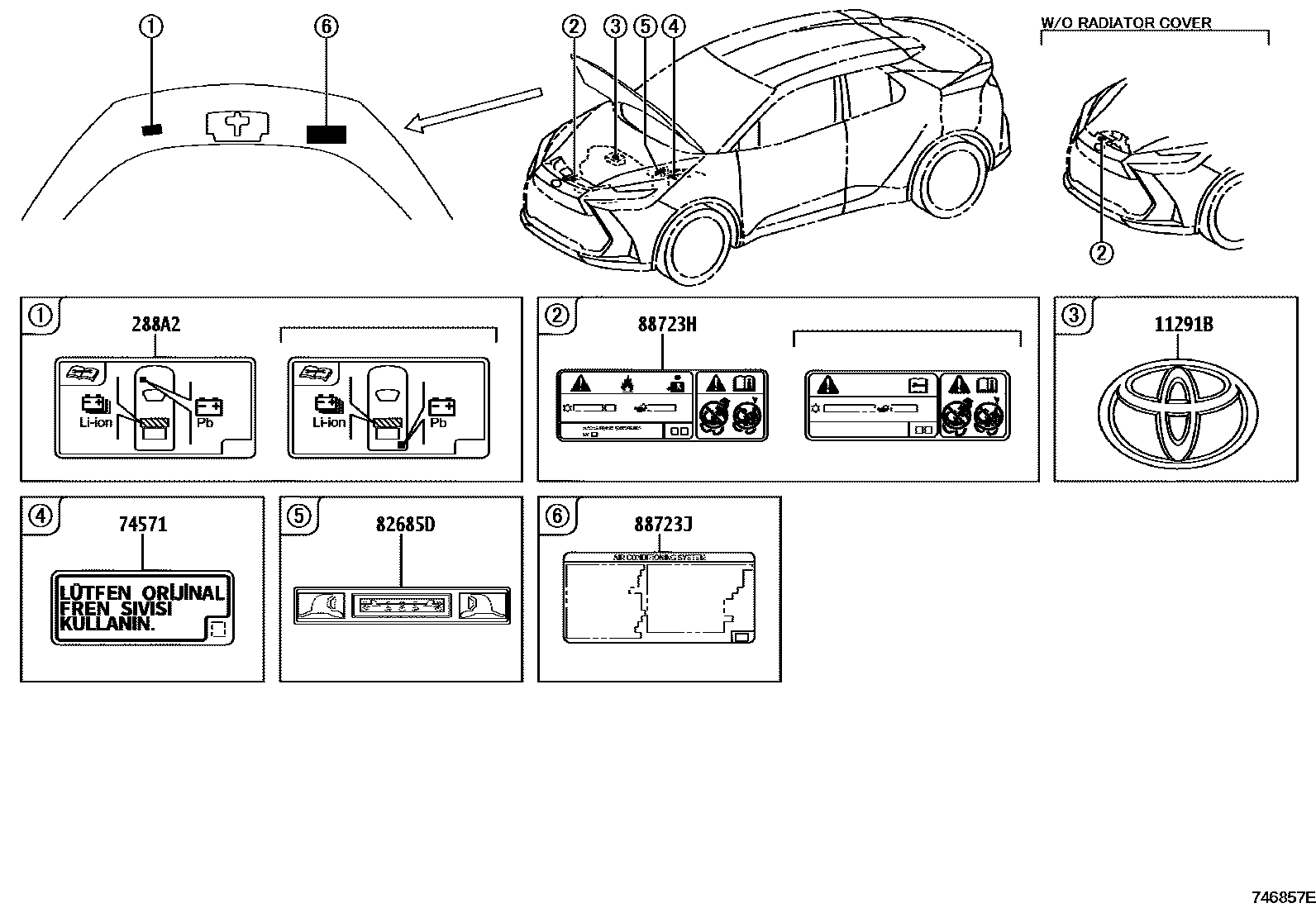

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11291BPLATE, ENGINE NAME

main11291-37130i2ZR..ZYX20202310

288A2LABEL, BATTERY LOCATION

main288A2-0T010i2ZR..ZYX20202310

main288A2-F2010iM20..MAXH2#202310

74571PLATE, BRAKE FLUID CAUTION

main47288-64010iZYX20..TUR202310

82685DPLATE, CAUTION

main82684-48010iMAXH20,25,ZYX20202401

88723HLABEL, COOLER SERVICE CAUTION

main88723-02610iMAXH20,25,ZYX20..EUR202407

main88723-02770iMAXH20,25,ZYX20..ARL202310-202502

main88723-02780iZYX20..TUR202310-202407

main88723-F4180iMAXH21202401-202407

main88723-F4210iMAXH21202407

88723JLABEL, COOLER SERVICE CAUTION, NO.2

main88733-0H010iMAXH2#,ZYX20..EUR202407

6 parts on this diagram · 3 diagrams in section
