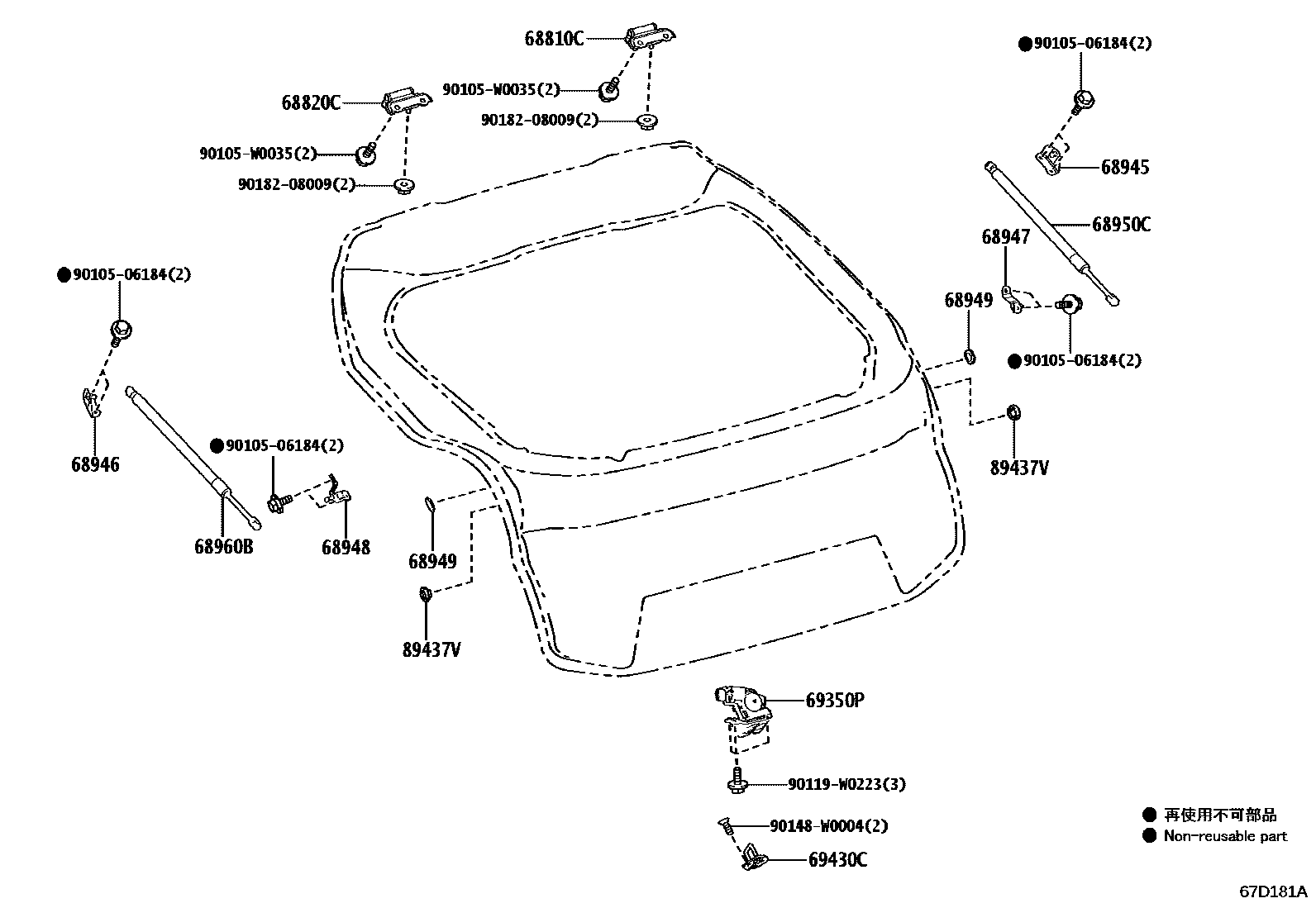

BACK DOOR LOCK & HANDLE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

68810CHINGE ASSY, BACK DOOR, RH

main68810-F4150iMAXH2#,ZYX20202310

68820CHINGE ASSY, BACK DOOR, LH

main68810-F4150iMAXH2#,ZYX20202310

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-F4060iMAXH2#,ZYX20..(E,G)..(EUR,TUR)202310

POWER BACK DOOR-WITH

main68945-F4070iMAXH20,25,ZYX20..(E,G)..ARL202310-202408

POWER BACK DOOR-WITH

main68945-F4071iMAXH20,25,ZYX20..(E,G)..ARL202409

POWER BACK DOOR-WITH

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-F4010iMAXH2#,ZYX20..(E,G)..(EUR,TUR)202310

POWER BACK DOOR-WITH

main68946-F4020iMAXH20,25,ZYX20..(E,G)..ARL202310-202408

POWER BACK DOOR-WITH

main68946-F4021iMAXH20,25,ZYX20..(E,G)..ARL202409

POWER BACK DOOR-WITH

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-F4050iMAXH2#,ZYX20202310

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-F4050iMAXH2#,ZYX20202310

68949SEAL, BACK DOOR STAY BRACKET

main68949-78020×2iMAXH2#,ZYX20..(E,G)..(EUR,TUR)202310

POWER BACK DOOR-WITH

68950CSTAY ASSY, BACK DOOR, RH

main68950-F4210iMAXH2#,ZYX20..(E,G)..(EUR,TUR)202310

POWER BACK DOOR-WITH

68960BSTAY ASSY, BACK DOOR, LH

main68960-F4210iMAXH2#,ZYX20..(E,G)..(EUR,TUR)202310

POWER BACK DOOR-WITH

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-10130iMAXH20,25,ZYX20..(E,G)..ARL202310

POWER BACK DOOR-WITH

main69350-42090iZYX20..N..ARL;MAXH2#,ZYX20..EUR,TUR202310

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iMAXH2#,ZYX20202310

89437VCOVER, SENSOR

main89437-48030×2iMAXH2#,ZYX20..(E,G)..(EUR,TUR)202310

POWER BACK DOOR-WITH

9010506184

main90105-06184

90105W0035

main90105-W0035

90119W0223

main90119-W0223

90148W0004

main90148-W0004

9018208009

main90182-08009

17 parts on this diagram · 2 diagrams in section
