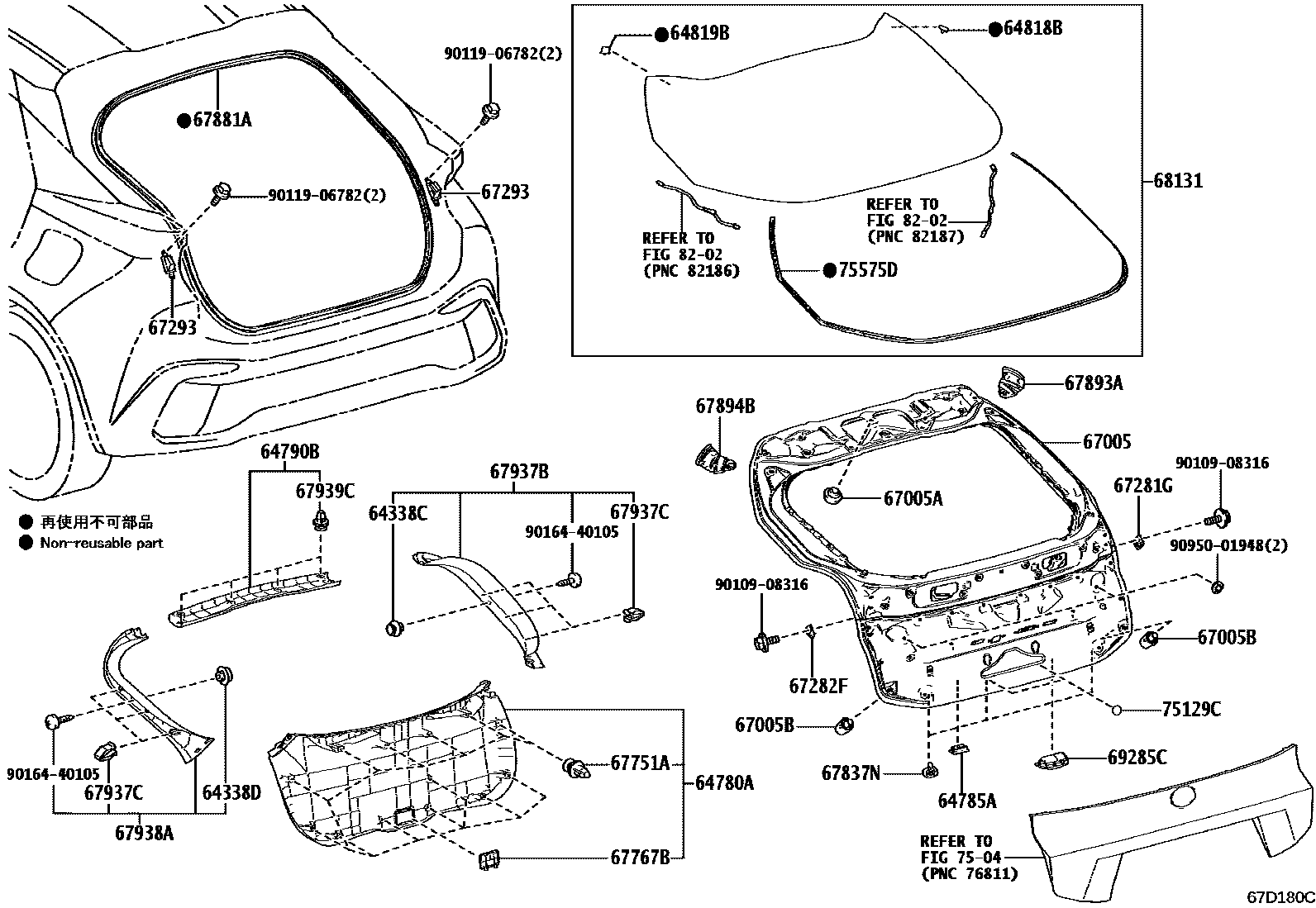

BACK DOOR PANEL & GLASS
64338CHOOK, PACKAGE TRAY TRIM GARNISH, RH
BLACK,TRIM2#
64338DHOOK, PACKAGE TRAY TRIM GARNISH, LH
BLACK,TRIM2#
64780APANEL ASSY, BACK DOOR TRIM
BLACK,TRIM2#
64785ABASE, BACK DOOR TRIM
BLACK,TRIM2#
POWER BACK DOOR-WITH,BLACK,TRIM2#
64790BPANEL ASSY, BACK DOOR TRIM, UPPER
BLACK,TRIM2#
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
POWER BACK DOOR-WITH
67005APLUG, HOLE(FOR BACK DOOR PANEL)
67005BCUSHION(FOR BACK DOOR PANEL)
67281GSTOPPER, BACK DOOR, LOWER RH
67282FSTOPPER, BACK DOOR, LWR LH
67293CUSHION, BACK DOOR LOWER STOPPER
RH
LH
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67767BCOVER, BACK DOOR SERVICE HOLE, NO.3
BLACK,TRIM2#
67837NSEAL, BACK DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67893APROTECTOR, BACK DOOR PANEL, NO.1
67894BPROTECTOR, BACK DOOR PANEL, NO.2
67937BGARNISH, BACK DOOR SIDE, RH
BLACK,TRIM2#
67937CCLIP(FOR BACK DOOR SIDE GARNISH)
67938AGARNISH, BACK DOOR SIDE, LH
BLACK,TRIM2#
67939CCLIP(FOR BACK DOOR CENTER GARNISH)
(J)
(L)
68131GLASS, BACK DOOR
REAR SIDE GLASS-GREEN
69285CHANDLE, PULL
BLACK,TRIM2#
7504
75129CCUSHION, REAR LICENCE PLATE
75575DMOULDING, BACK WINDOW, LOWER
8202
9010908316
main90109-08316
9011906782
main90119-06782
9016440105
main90164-40105
9095001948
main90950-01948
33 parts on this diagram · 1 diagram in section
