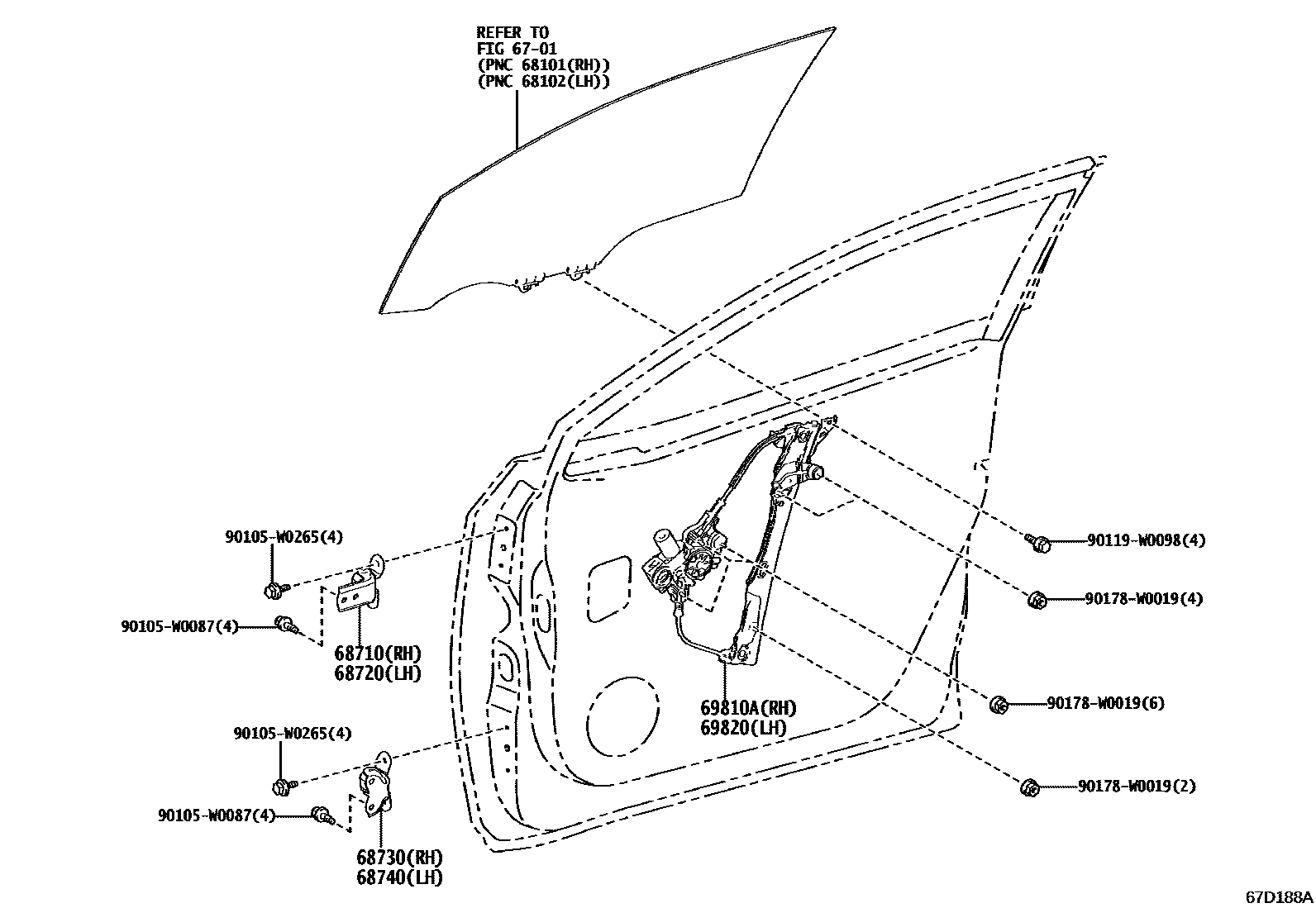

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02060iMAXH2#,ZYX20202310

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02060iMAXH2#,ZYX20202310

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02050iMAXH2#,ZYX20202310

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02050iMAXH2#,ZYX20202310

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-F4051iMAXH2#,ZYX20202310

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-F4051iMAXH2#,ZYX20202310

90105W0087

main90105-W0087

90105W0265

main90105-W0265

90119W0098

main90119-W0098

90178W0019

main90178-W0019

11 parts on this diagram · 1 diagram in section
