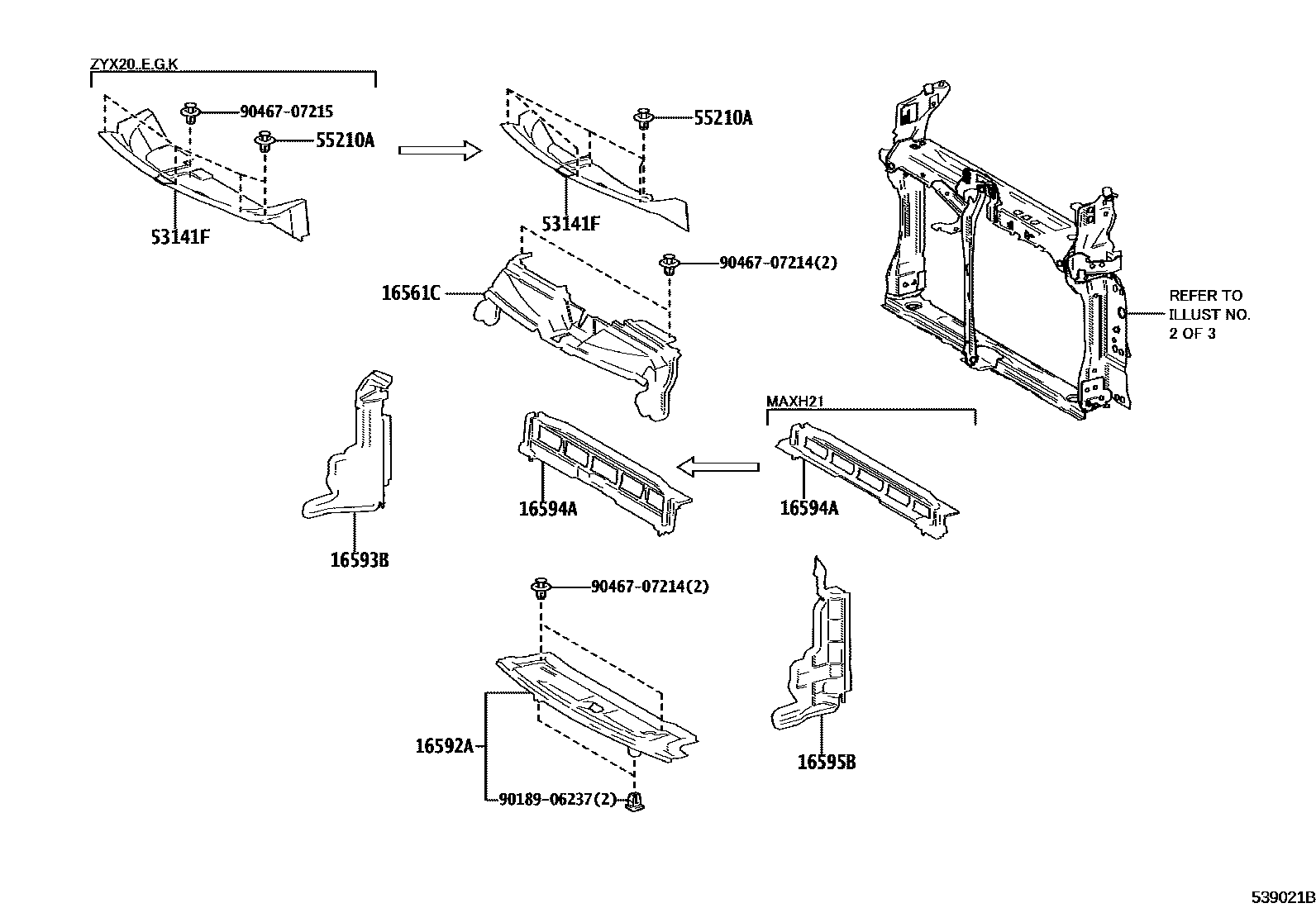

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL 0004 1DASH PANEL 0005 1DASH PANEL 0006 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-F2080iM20,2ZR..MAXH2#,ZYX20202310

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F2140iM20,2ZR..MAXH2#,ZYX20202310

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F2250iM20,2ZR..MAXH20,25,ZYX20202310

main16593-F2260iM20..MAXH21202401

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F2170iM20..MAXH21202401

main16594-F3040iM20,2ZR..MAXH20,25,ZYX20202310

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F2260iM20,2ZR..MAXH20,25,ZYX20202310

main16595-F2270iM20..MAXH21202401

53141FCOVER, RADIATOR

main53141-F4140iMAXH2#202310

main53141-F4150iZYX20..E,G,K202310

55210INSULATOR ASSY, DASH PANEL

main55210-F4100iMAXH20,25,ZYX20..LHD202310

main55210-F4120iMAXH20,25,ZYX20..RHD202310

main55210-F4140iMAXH21..LHD202401

main55210-F4150iMAXH21..RHD202401

55210ACLIP

main90467-07217iZYX20..E,G,K¥80202310

9018906237

main90189-06237¥100

9046707214

main90467-07214¥70

9046707215

main90467-07215¥80

11 parts on this diagram · 6 diagrams in section
