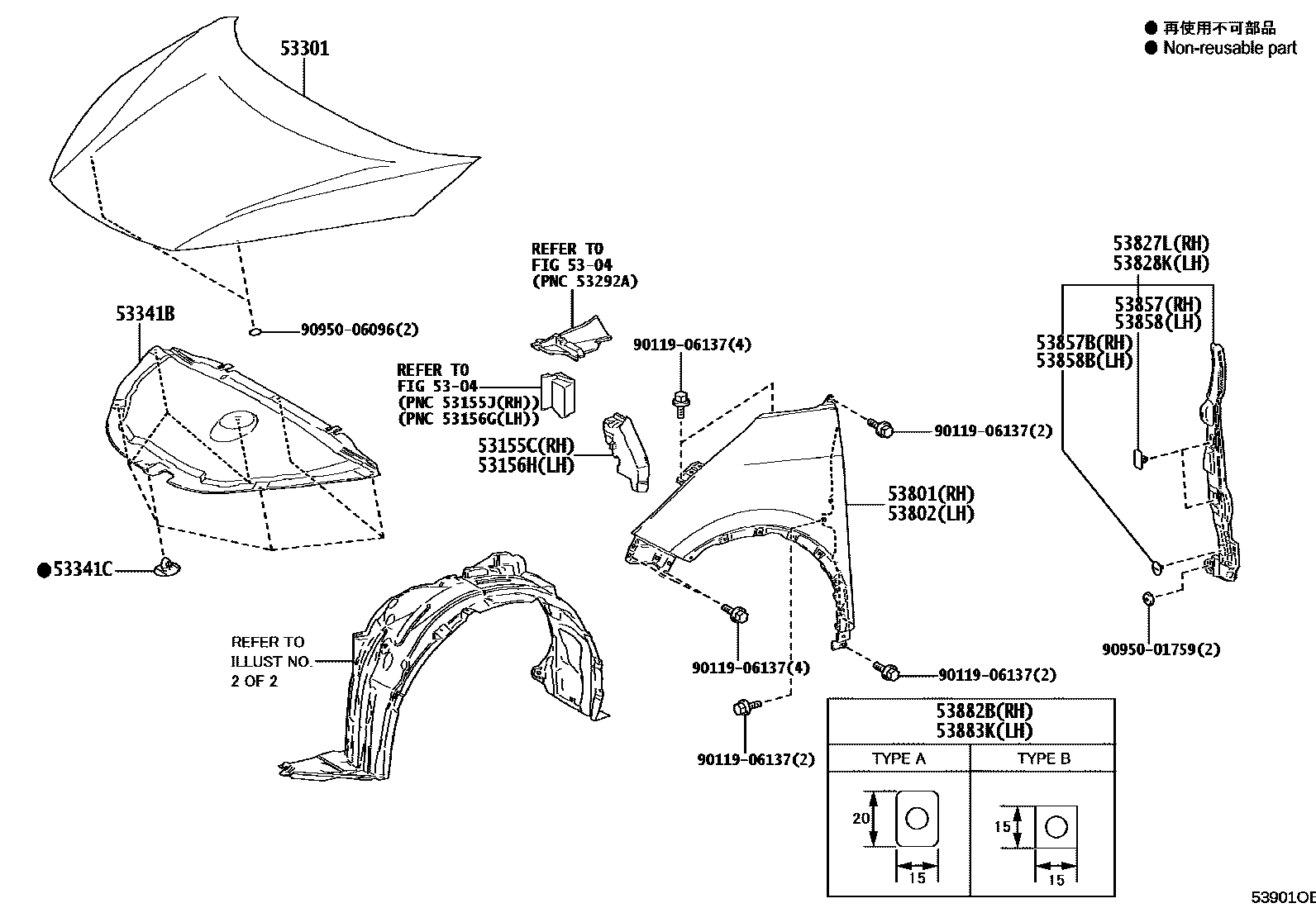

HOOD & FRONT FENDER
5304
53155CSEAL, RADIATOR GRILLE, NO.1
53156HSEAL, RADIATOR GRILLE, NO.2
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
(J)
(L)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53883KSEAL, FRONT FENDER, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
9011906137
9095001759
9095006096
19 parts on this diagram · 2 diagrams in section
