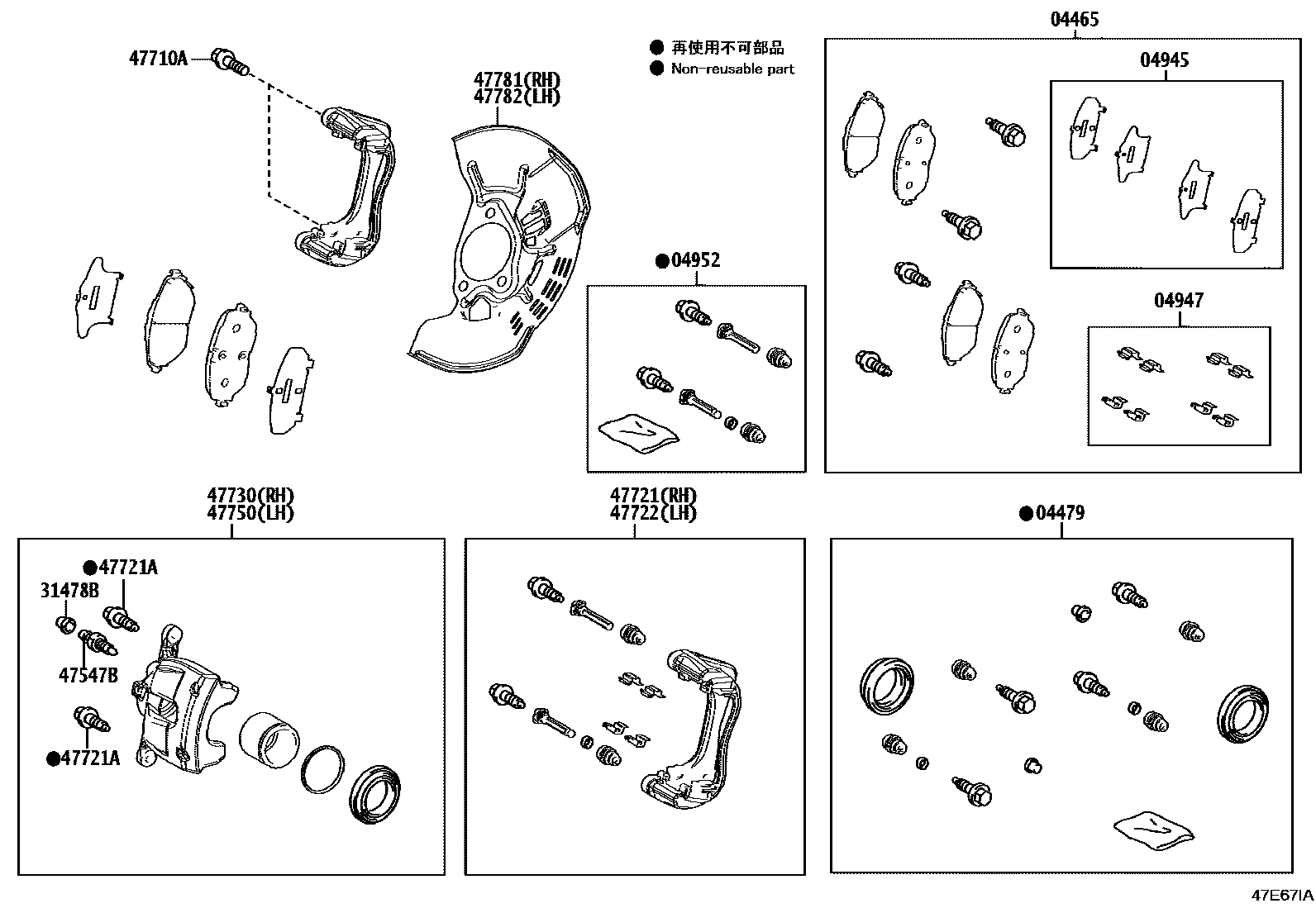

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-F4040iMAXH20,ZYX20202310

MARK GA5019

main04465-F4050iMAXH21,25202310

MARK GA5019

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-F4020iMAXH20,ZYX20202310

main04478-F4030iMAXH21,25202310

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-F4030iMAXH20,ZYX20202310

main04945-F4040iMAXH21,25202310

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02140iMAXH20,ZYX20202310

main04947-F4010iMAXH21,25202310

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02221iMAXH2#,ZYX20202310

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39033iMAXH2#,ZYX20202310

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39025iMAXH2#,ZYX20202310

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121iMAXH2#,ZYX20202310

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-F9010iMAXH20,ZYX20202310

main47721-F9020iMAXH21,25202310

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-05060iMAXH2#,ZYX20202310

sub47715-28060

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-F9010iMAXH20,ZYX20202310

main47722-F9020iMAXH21,25202310

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-F9010iMAXH20,ZYX20202310

main47730-F9020iMAXH21,25202310

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-F9010iMAXH20,ZYX20202310

main47750-F9020iMAXH21,25202310

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-F4050iMAXH2#,ZYX20202310

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-F4050iMAXH2#,ZYX20202310

15 parts on this diagram · 2 diagrams in section
