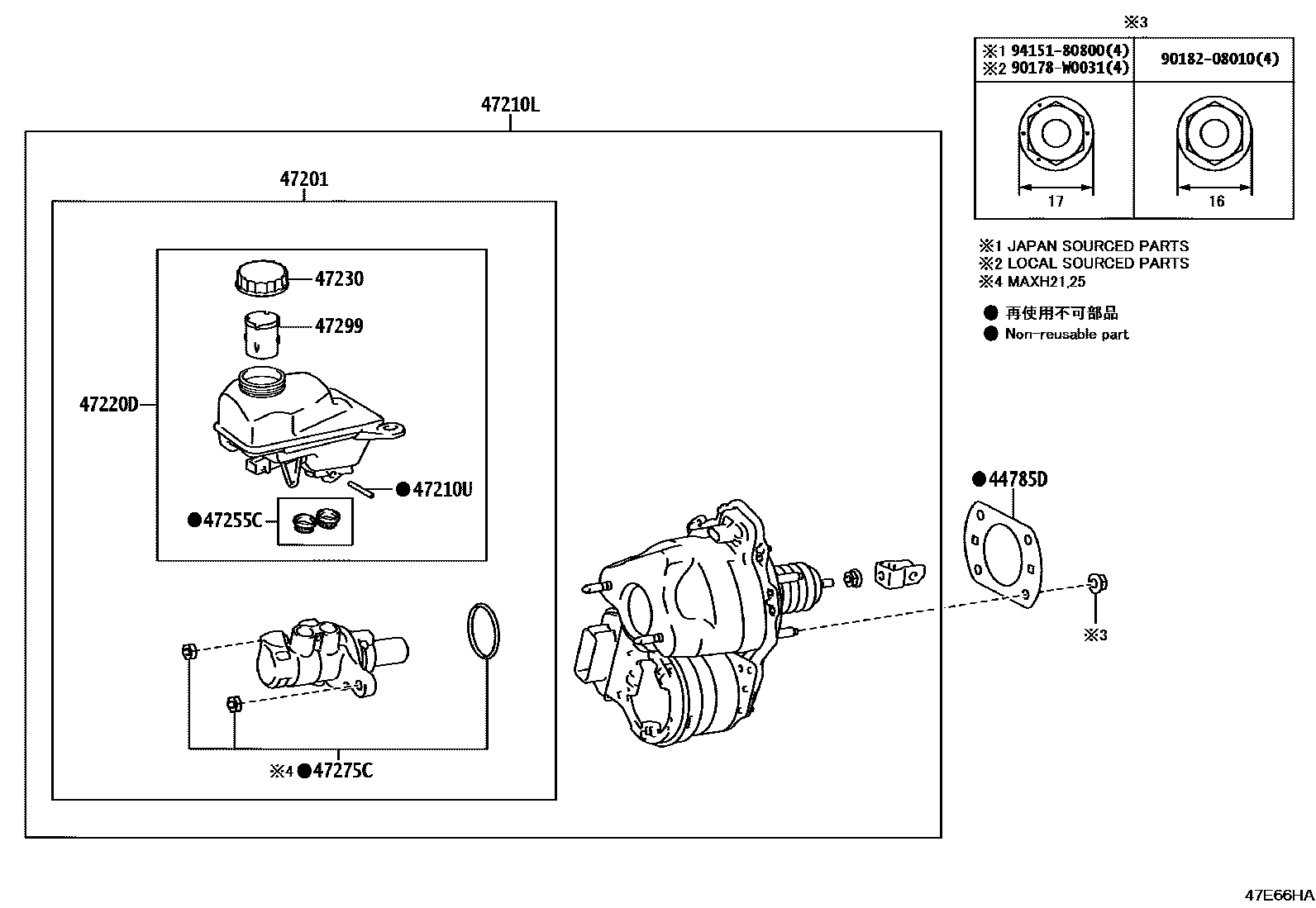

BRAKE MASTER CYLINDER

0001 1 0002 1

44785DGASKET, BRAKE MASTER CYLINDER

main44785-02090iMAXH2#,ZYX20202310

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09B10iMAXH2#,ZYX20..RHD202310

main47201-F9040iMAXH2#,ZYX20..LHD202310

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47210-F4060iMAXH20,ZYX20..LHD202310

main47210-F4080iMAXH20,ZYX20..RHD202310

main47210-F4100iMAXH21,25..LHD202310

main47210-F4120iMAXH21,25..RHD202310

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90069-35007iMAXH2#,ZYX20202310

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-09330iMAXH2#,ZYX20..LHD202310

main47220-09340iMAXH2#,ZYX20..RHD202310

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33072iMAXH2#,ZYX20..RHD202310

main47230-F4010iMAXH2#,ZYX20..LHD202310

47255CGROMMET SET, RESERVOIR

main47255-09040iMAXH2#,ZYX20202310

47275COVERHAUL SET, MASTER CYLINDER

main47275-09010iMAXH21,25;MAXH20,ZYX20..RHD202310

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iMAXH2#,ZYX20..LHD202310

main47299-52110iMAXH2#,ZYX20..RHD202310

90178W0031

main90178-W0031

9018208010

main90182-08010

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
