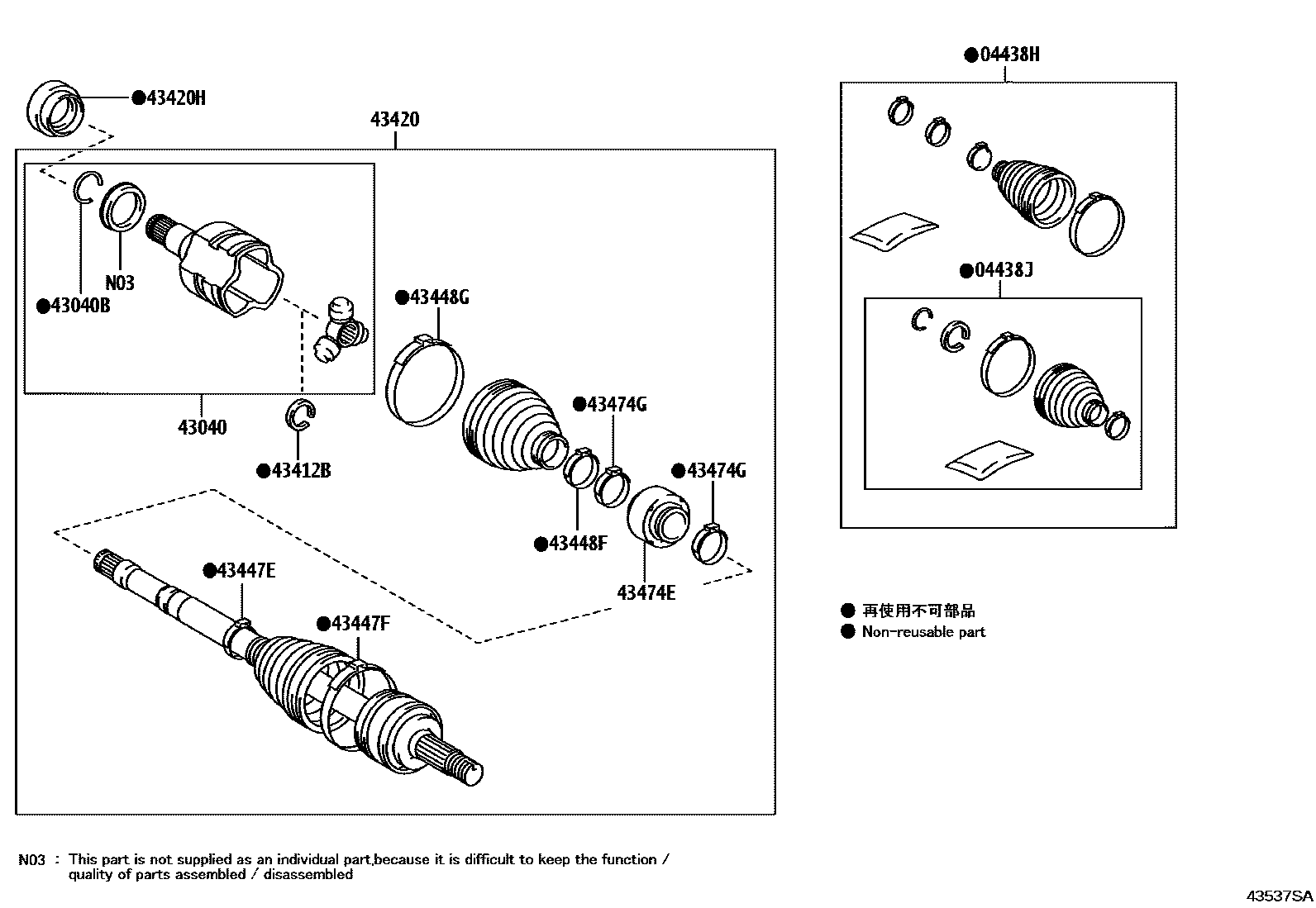

FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-F4040iMAXH2#,ZYX20202310

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-F4080iMAXH2#,ZYX20202310

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-F4100iMAXH2#,ZYX20202310

43040BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH)

main43425-05070iMAXH2#,ZYX20202310

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-02230iMAXH2#,ZYX20202310

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-F4160iMAXH2#,ZYX20202310

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50062iMAXH2#,ZYX20202310

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0F070iMAXH2#,ZYX20202310

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-08040iMAXH2#,ZYX20202310

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0F070iMAXH2#,ZYX20202310

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-F4020iMAXH2#,ZYX20202310

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-02820iMAXH2#,ZYX20202310

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-05250iMAXH2#,ZYX20202310

13 parts on this diagram · 3 diagrams in section
