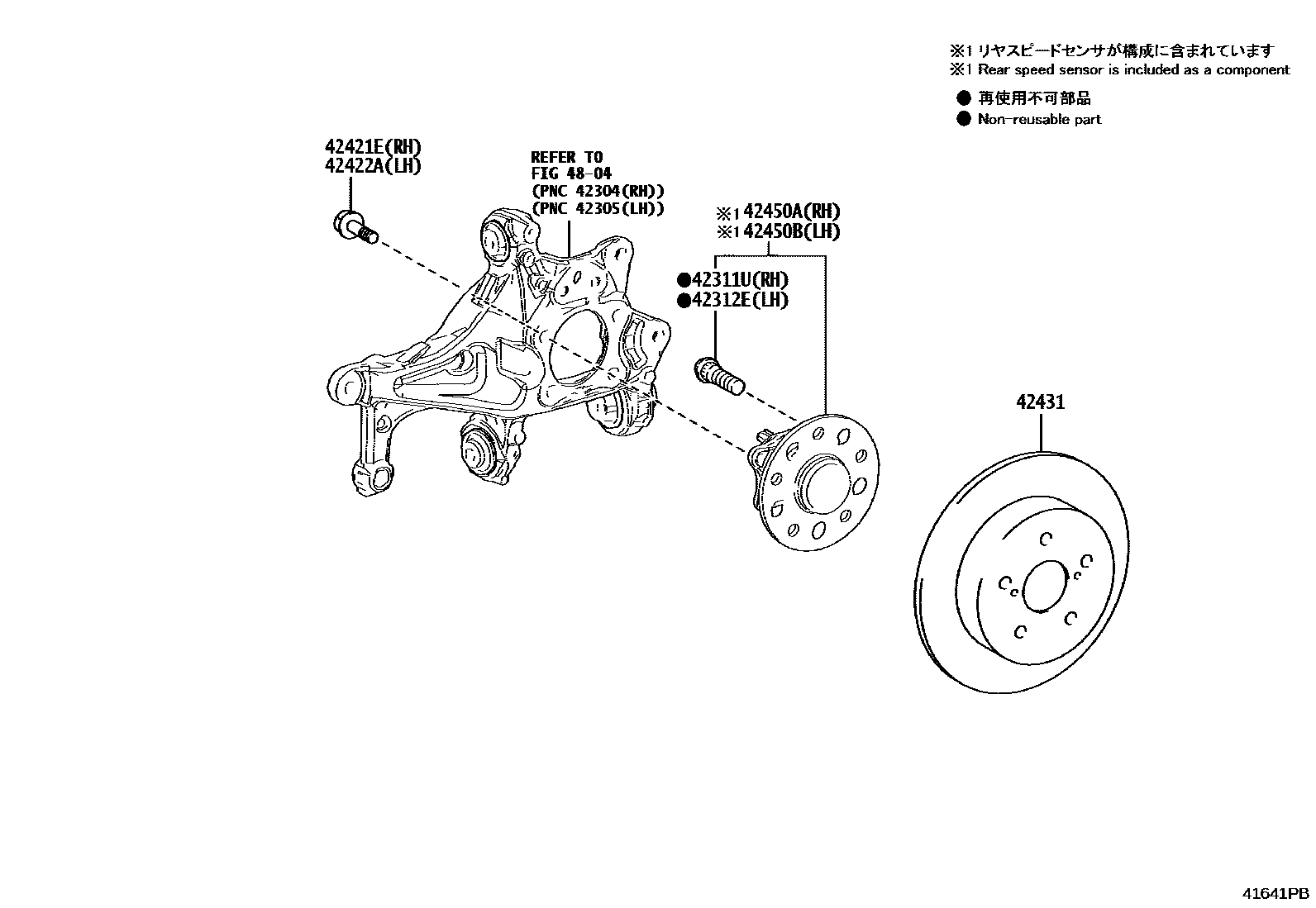

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02082×5iMAXH2#,ZYX20202310

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02082×5iMAXH2#,ZYX20202310

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iMAXH2#,ZYX20202310

(J)

main90105-W0164×4iMAXH2#,ZYX20202310

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iMAXH2#,ZYX20202310

(J)

main90105-W0164×4iMAXH2#,ZYX20202310

(L)

42431DISC, REAR

main42431-F4051×2iMAXH2#,ZYX20202310

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-47050iMAXH25202310

main42450-F4051iMAXH20,21,ZYX20202310

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-47050iMAXH25202310

main42450-F4051iMAXH20,21,ZYX20202310

4804

8 parts on this diagram · 3 diagrams in section
