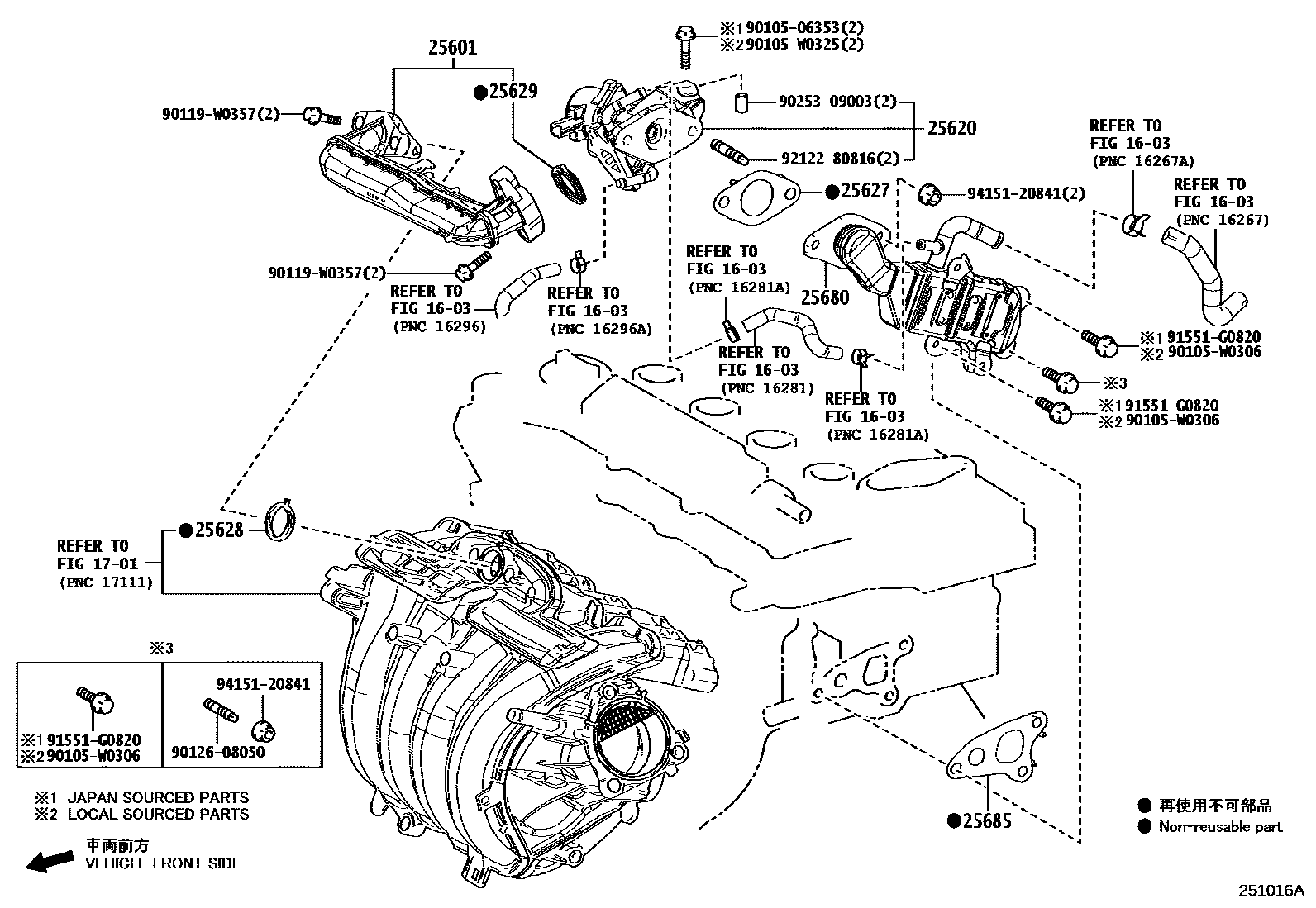

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-F2020iM20..MAXH2#202310

25620VALVE ASSY, EGR

main25620-37140i2ZR..ZYX20..EUR,TUR202310

NEW ZEALAND SPEC

main25620-37150i2ZR..ZYX20..ARL202310

AZERBAIJAN SPEC

main25620-37150i2ZR..ZYX20..ARL202310

UKRAINE SPEC

main25620-F2020iM20..MAXH2#202310

25627GASKET, EGR VALVE

main25627-37020i2ZR..ZYX20202310

main25627-F2040iM20..MAXH2#202310

25628GASKET, EGR INLET

main25628-F2040iM20..MAXH2#202310

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20..MAXH2#202310

25680COOLER ASSY, EGR

main25680-24030iM20..MAXH2#202310

25685GASKET, EGR COOLER, NO.1

main25685-25011iM20..MAXH2#202310

main25685-37020i2ZR..ZYX20202310

9010506353

main90105-06353

90105W0306

main90105-W0306

90105W0325

main90105-W0325

90119W0357

main90119-W0357

9012608050

main90126-08050

9025309003

main90253-09003

91551G0820

main91551-G0820

9212280816

main92122-80816

9415120841

main94151-20841

18 parts on this diagram · 2 diagrams in section
