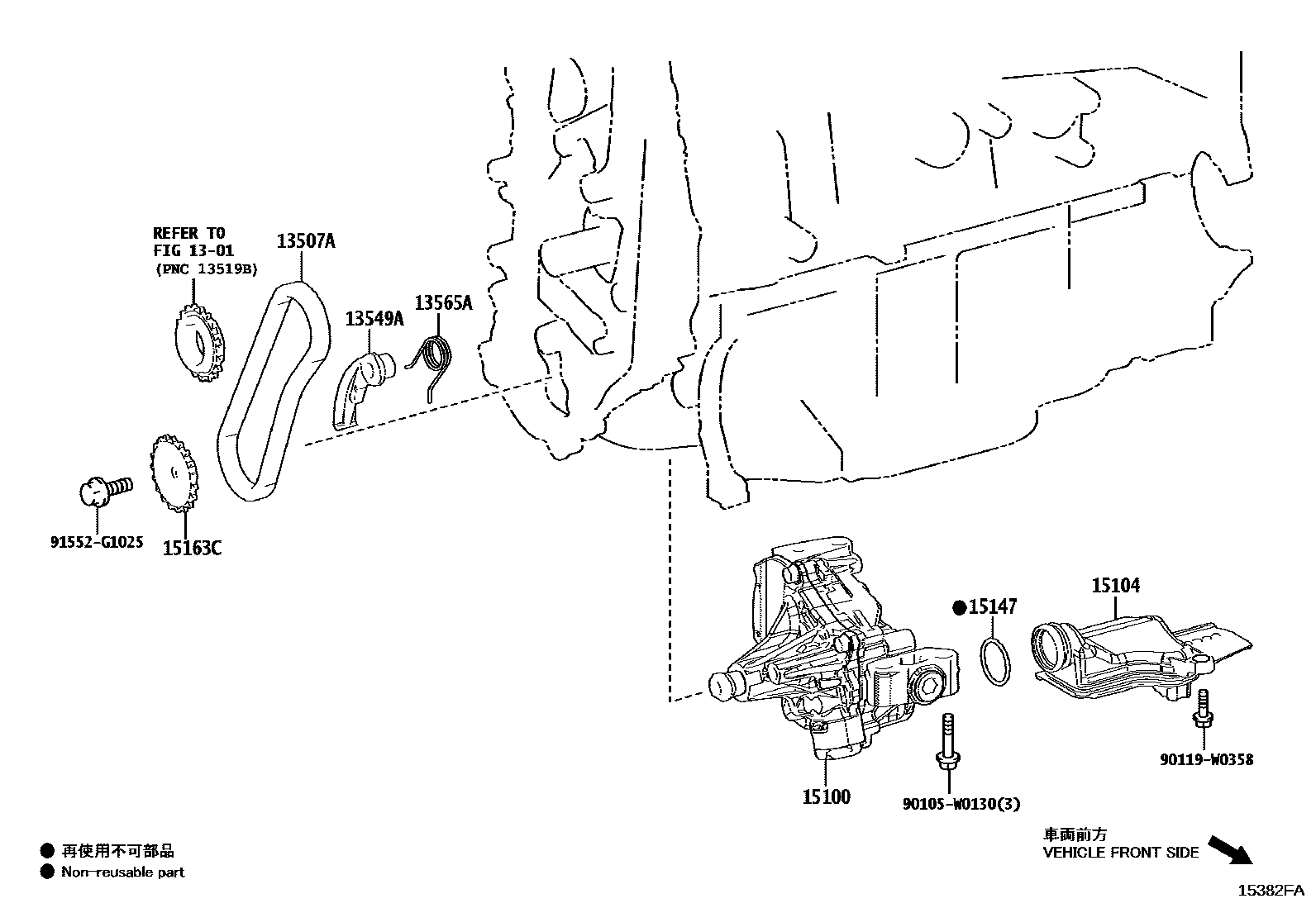

ENGINE OIL PUMP

0001 1 0002 1

1301

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-F2030iM20..MAXH2#202310

13549APLATE, CHAIN TENSIONER

main13549-25020iM20..MAXH2#202310

13565ASPRING, CHAIN DAMPER

main13565-25010iM20..MAXH2#202310

15100PUMP ASSY, OIL

main15100-0T160i2ZR..ZYX20202310

(L)

main15100-24020iM20..MAXH2#202310

main15100-37070i2ZR..ZYX20202310

(J)

15104STRAINER SUB-ASSY, OIL

main15104-24010iM20..MAXH2#202310

15147GASKET, OIL STRAINER

main15147-25010iM20..MAXH2#202310

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0T030i2ZR..ZYX20202310

(L)

main15163-28010i2ZR..ZYX20202310

(J)

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iM20..MAXH2#202310

(J)

main15163-F2040iM20..MAXH2#202310

(L)

90105W0130

main90105-W0130

90119W0358

main90119-W0358

91552G1025

main91552-G1025

12 parts on this diagram · 2 diagrams in section
