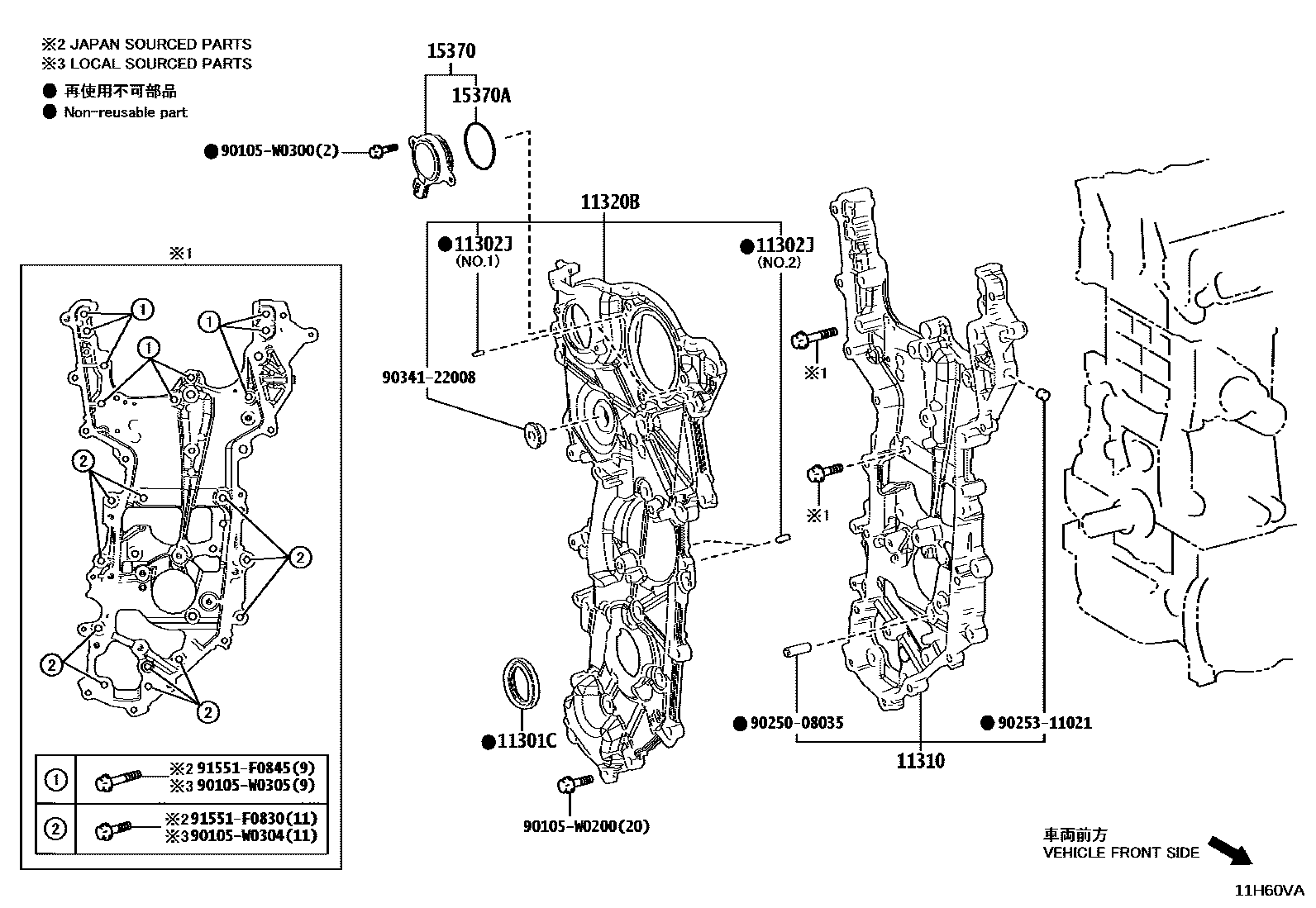

TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11310COVER ASSY, TIMING CHAIN
(L)
(J)
11320BCOVER ASSY, TIMING CHAIN, NO.2
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90105W0200
main90105-W0200
90105W0300
main90105-W0300
90105W0304
main90105-W0304
90105W0305
main90105-W0305
9025008035
main90250-08035
9025311021
main90253-11021
9034122008
main90341-22008
91551F0830
main91551-F0830
91551F0845
main91551-F0845
15 parts on this diagram · 2 diagrams in section
