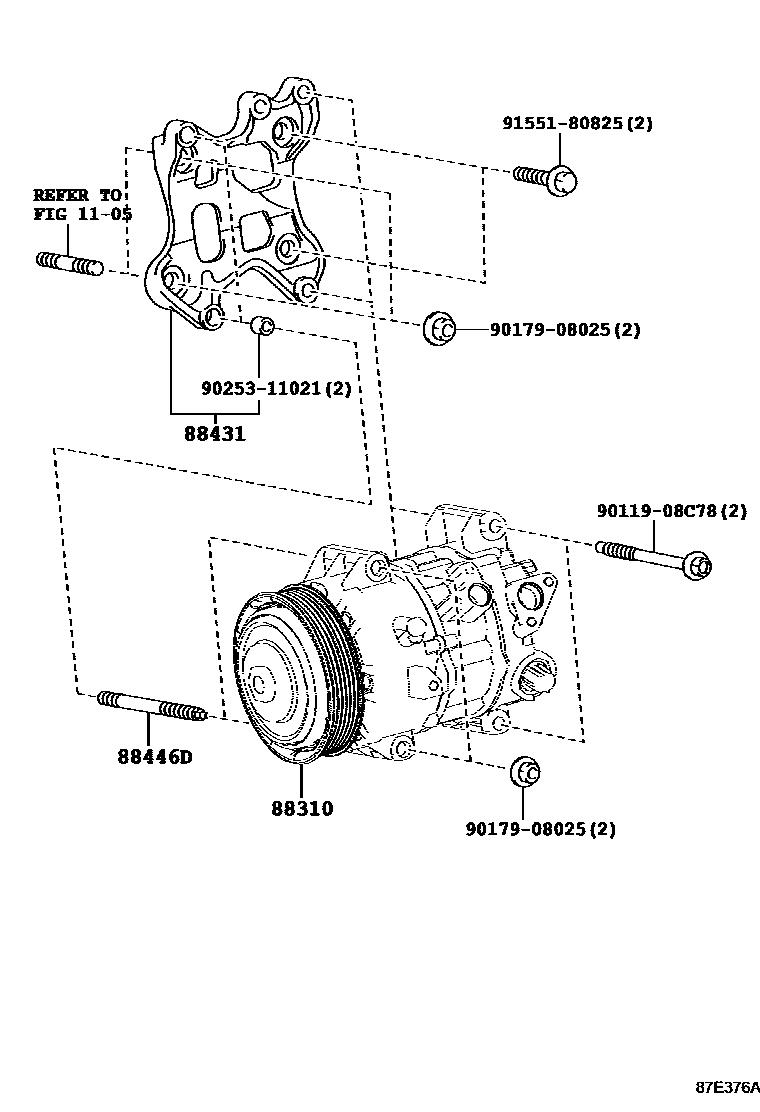

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1105

88310COMPRESSOR ASSY, W/PULLEY

main88310-48300iZGZ1#201410-201709

main88310-78020iAGZ1#201412-201604

sub88310-78021

main88310-78021iAGZ1#201605-201902

sub88310-78022

main88310-78022iAGZ1#201903

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36031iAGZ1#201412-201709

main88431-33050iAYZ1#201407-201709

88446DBOLT, COOLER

main88446-42030iAGZ1#,ZGZ1#201410-202107

main88446-60050iAGZ1#,ZGZ1#202107

9011908C78

main90119-08C78

9017908025

main90179-08025

9025311021

main90253-11021

9155180825

main91551-80825

8 parts on this diagram · 3 diagrams in section
