ANTENNA

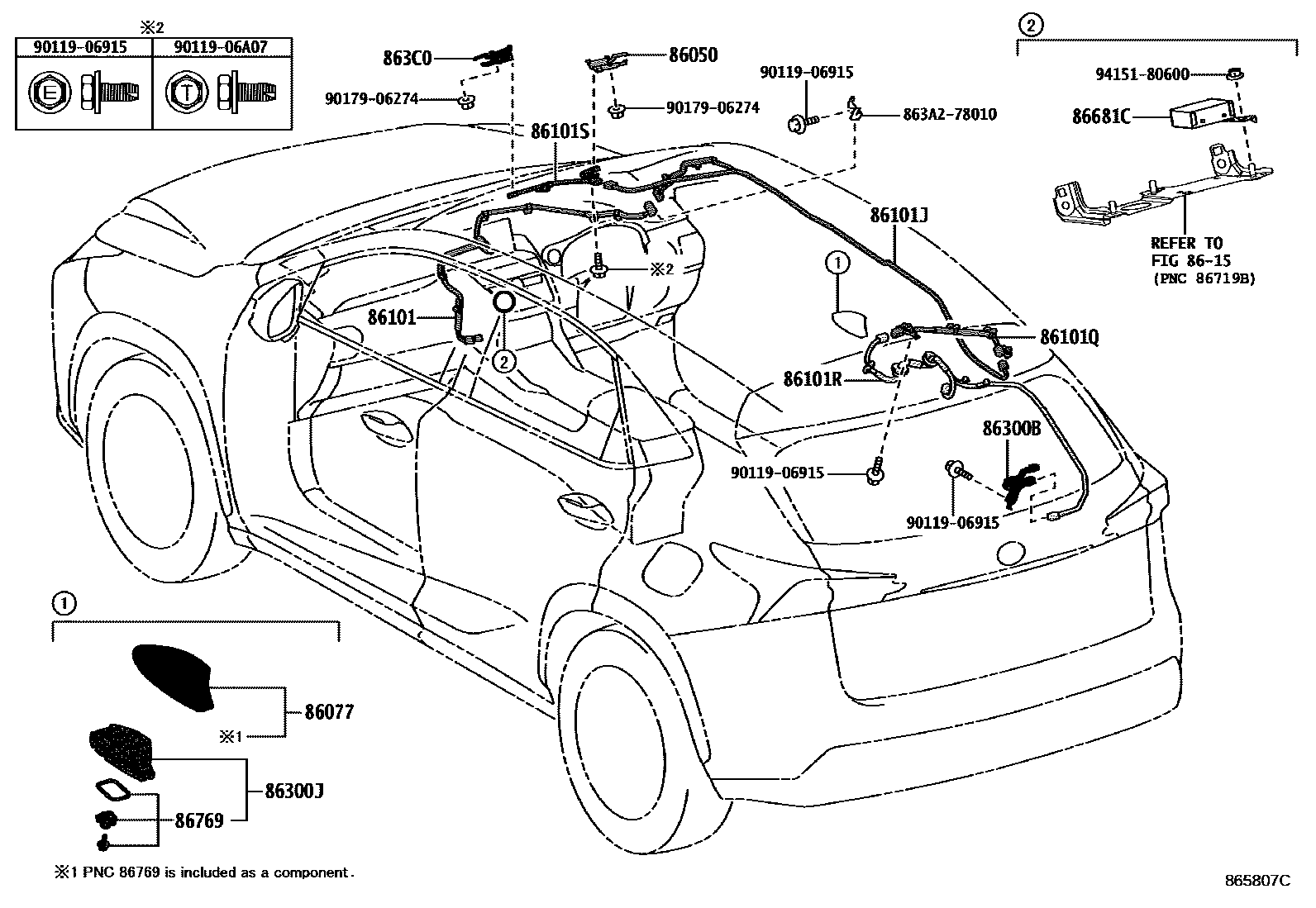

Parts diagram
86050ANTENNA ASSY, TELEVISION
main863C0-78010
main86050-53200
86077COVER KIT, ANTENNA
main86077-76010-A1i201509-201709
WHITE NOVA GF.,083
sub86077-76010
main86077-76010-A2i201407-201709
SONIC QUARTZ,085
sub86077-76010
main86077-76010-B0i201407-201709
MERCURY GRAY MC.,1H9
sub86077-76010
main86077-76010-B1i201407-201905
PLATINUM SILVER ME.,1J4
sub86077-76010
main86077-76010-B2i201407-201709
SONIC TITANIUM,1J7
sub86077-76010
main86077-76010-C0i201407-201709
BLACK,212
sub86077-76010
main86077-76010-C0i201407-201709
BLACK,212 ,4W7
sub86077-76010
main86077-76010-C2i201407-201509
STARLIGHT BLACK GF.,217
sub86077-76010
main86077-76010-C3i201509-201709
GRAPHITE BLACK GF.,223
sub86077-76010
main86077-76010-D0i201407-201709
RED MC.CS.,3R1
sub86077-76010
main86077-76010-E0i201407-201509
FIRE AGATE M.M.,4V3
sub86077-76010
main86077-76010-E2i201509-202007
AMBER CS.,4X2
sub86077-76010
main86077-76010-E3i201609-201709
LAVA ORANGE CS.,4W7
sub86077-76010
main86077-76010-E4i201905
BLAZING CARNELIAN CONTRAS,4Y1
sub86077-76010
main86077-76010-G0i202007
TERRANE KHAKI M.M.,6X4
sub86077-76010
main86077-76010-J0i201407-201609
BLUE ME.,8U1
sub86077-76010
main86077-76010-J2i201407-201509
METEOR BLUE M.M.,8W3
sub86077-76010
main86077-76010-J3i201509-202007
SPARKLING METEOR ME.,8X9
sub86077-76010
main86077-76010-J5i201609-201709
HEAT BLUE CONTRAST LAYERI,8X1
sub86077-76010
main86077-76010-J6i202007
CELESTIAL BLUE GF.,8Y6
sub86077-76010
86101CORD SUB-ASSY, ANTENNA
main86101-78590i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-POWER(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78590i201407-201609
main86101-78590i201407-201709
NAVIGATION SYSTEM-WITHOUT & WITH(DISPLAY AUDIO)
main86101-78590i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78590i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-POWER(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78590i201709
NAVIGATION SYSTEM-WITHOUT & WITH(8INCH DISPLAY)
main86101-78590i201709
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78590i201709
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78590i201709
AZERBAIJAN, ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78590i201709
AZERBAIJAN, ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78590i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78600i201407-201709
NAVIGATION SYSTEM-WITHOUT & WITH(DISPLAY AUDIO)
main86101-78600i201709
NAVIGATION SYSTEM-WITHOUT & WITH(8INCH DISPLAY)
main86101-78600i201407-201709
INDIA SPEC
main86101-78600i201407-201709
INDIA SPEC&SATELLITE RADIO-WITH(DAB)
main86101-78770i201709
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)
main86101-78770i201609-201709
RUSSIA SPEC
main86101-78770i201709
BELARUS, KAZAKHSTAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-78410i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-POWER(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78410i201407-201609
main86101-78410i201407-201709
INDIA SPEC
main86101-78410i201407-201709
NAVIGATION SYSTEM-WITHOUT & WITH(DISPLAY AUDIO)
main86101-78410i201407-201709
INDIA SPEC&SATELLITE RADIO-WITH(DAB)
main86101-78410i201407-201709
INDIA SPEC&ROOF PANEL-MOON ROOF
main86101-78410i201407-201709
INDIA SPEC&ROOF PANEL-MOON ROOF&SATELLITE RADIO-WITH(DAB)
main86101-78410i201407-201709
INDIA SPEC&ROOF PANEL-PANORAMIC ROOF(FIX GLASS)
main86101-78410i201407-201709
INDIA SPEC&ROOF PANEL-PANORAMIC ROOF(FIX GLASS)&SATELLITE RADIO-WITH(DAB)
main86101-78410i201709
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78410i201709
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78410i201709
AZERBAIJAN, ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78410i201709
AZERBAIJAN, ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78410i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78410i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-POWER(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78410i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78410i201709
NAVIGATION SYSTEM-WITHOUT & WITH(8INCH DISPLAY)
main86101-78750i201609-201709
RUSSIA SPEC
main86101-78750i201709
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)
main86101-78750i201709
BELARUS, KAZAKHSTAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-78030i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-POWER(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78030i201407-201609
main86101-78030i201407-201709
NAVIGATION SYSTEM-WITHOUT & WITH(DISPLAY AUDIO)
main86101-78030i201709
AZERBAIJAN, ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78030i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78030i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-POWER(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78030i201709
TAIWAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78030i201709
NAVIGATION SYSTEM-WITHOUT & WITH(8INCH DISPLAY)
main86101-78030i201709
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78030i201709
UKRAINE SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78030i201709
AZERBAIJAN, ARMENIA, GEORGIA SPEC&ANTI-THEFT SYSTEM-WITH(HORN)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86101-78790i201609-201709
RUSSIA SPEC
main86101-78790i201709
RUSSIA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)
main86101-78790i201709
BELARUS, KAZAKHSTAN SPEC&ANTI-THEFT SYSTEM-WITH(SIREN & *IS & *GBS & TILT SENSOR)&STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)
86101RCORD SUB-ASSY, ANTENNA, NO.5
main86101-78040i201407-201709
NAVIGATION SYSTEM-WITHOUT & WITH(DISPLAY AUDIO)
main86101-78040i201709
NAVIGATION SYSTEM-WITHOUT & WITH(8INCH DISPLAY)
86101SCORD SUB-ASSY, ANTENNA
8615
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-78020i201407-201709
INDIA SPEC
main86300-78020i201407-201709
INDIA SPEC&SATELLITE RADIO-WITH(DAB)
main86300-78020i201709
86300JANTENNA ASSY, ROOF
main86760-48070i201709
UKRAINE SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86760-48070i201709
AZERBAIJAN, ARMENIA, GEORGIA SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86760-48070i201709
TAIWAN SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86760-48070i201709
TAIWAN SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC)&DATA COMMUNICATION MODULE-WITHOUT
main86760-53100i201407-201709
main86760-58010i201709
BELARUS, KAZAKHSTAN SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)
main86760-58010i201709
RUSSIA SPEC&STEERING COLUMN-MANUAL(TILT & TELESCOPIC), W(PROTECTOR)
main86760-58010i201609-201709
RUSSIA SPEC
863C0ANTENNA ASSY, DIGITAL AUDIO BROADCASTING
main863C0-78020
86681CDIVIDER, ANTENNA
86769HOUSING, ROOF ANTENNA
main86769-53010i201407-201709
863A278010TOOL, POLE ANTENNA
main863A2-78010
9011906915
main90119-06915
9011906A07
main90119-06A07
9017906274
main90179-06274
9415180600
main94151-80600

18 parts on this diagram · 1 diagram in section
