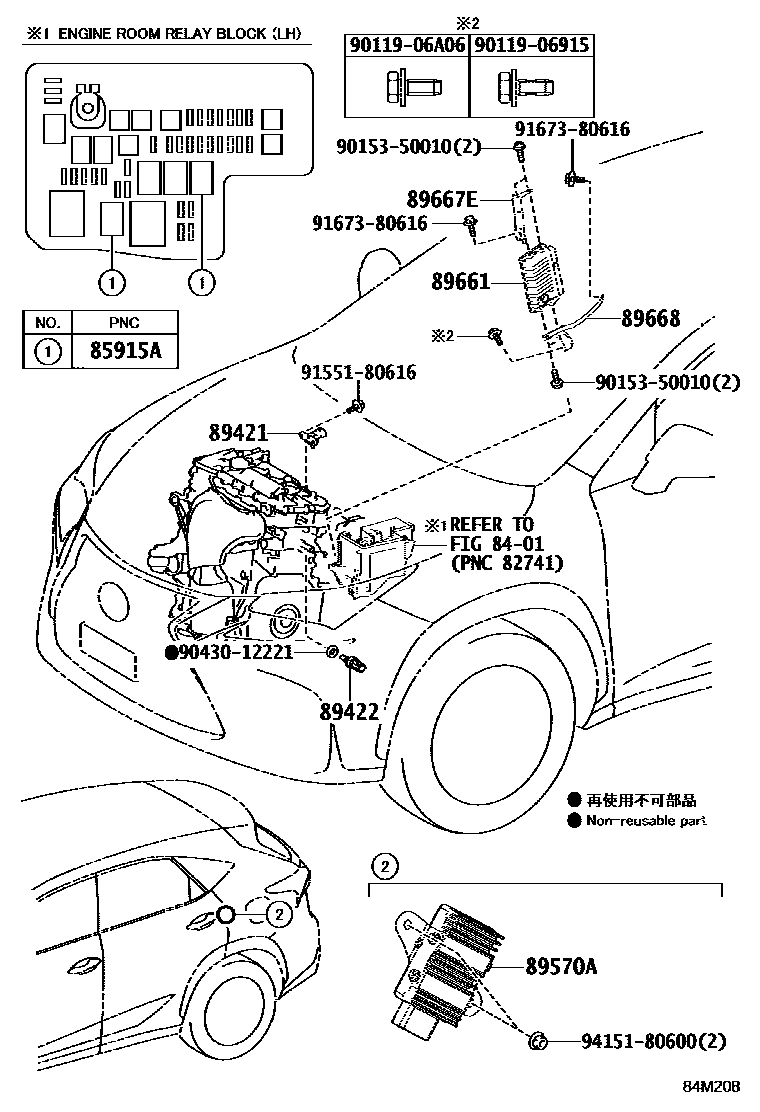

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401

85915ARELAY, MAIN

main90987-02027iAYZ1#,ZGZ1#201407-201709

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iAYZ1#,ZGZ1#201407-201709

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAGZ1#,AYZ1#,ZGZ1#201407-201709

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-78010iAGZ1#,AYZ1#201407-201709

89661COMPUTER, ENGINE CONTROL

main89661-78010iZGZ10201410-201609

sub89661-78011

main89661-78020iZGZ15201410-201609

sub89661-78021

main89661-78100iAGZ10201412-201611

sub89661-78101

main89661-78101iAGZ10201612-201709

main89661-78120iAGZ15201412-201611

sub89661-78121

main89661-78121iAGZ15201612-201709

main89661-78240iAYZ1#201407-201609

main89661-78330iZGZ10201609-201709

main89661-78340iZGZ15201609-201709

main89661-78370iAYZ1#201609-201709

main89661-78450iZGZ10201709-201905

DENSO

main89661-78460iZGZ15201709-201905

DENSO

main89661-78530iAYZ1#201709-201805

DENSO

main89661-78790iAYZ1#201805-202007

DENSO

main89661-78A70iZGZ10201905-202109

DENSO

main89661-78A80iZGZ15201905-202109

DENSO

main89661-78G30iAYZ1#202007-202109

DENSO

main89661-78090iAGZ10..LHD201412-201611

TAIWAN SPEC

sub89661-78091

main89661-78091iAGZ10..LHD201612-201709

TAIWAN SPEC

main89661-78110iAGZ15..LHD201412-201610

TAIWAN SPEC

sub89661-78111

main89661-78111iAGZ15..LHD201611-201709

TAIWAN SPEC

main89661-78130iAGZ15..LHD201412-201602

VIETNAM SPEC

sub89661-78131

main89661-78131iAGZ15..LHD201603-201709

MONTENEGRO SPEC

main89661-78280iAYZ15..LHD201407-201509

KAZAKHSTAN SPEC

main89661-78300iAYZ1#..LHD..L201407-201609

CHILE SPEC

main89661-78390iAYZ15..LHD201609-201709

MONTENEGRO SPEC

main89661-78400iAYZ15..RHD201609-201709

CHILE SPEC

main89661-78550iAYZ15..LHD201709-201805

DENSO,PERU SPEC

main89661-78560iAYZ15..RHD201709-201805

DENSO,CHILE SPEC

main89661-78640iAGZ10201709-201905

DENSO,TAIWAN SPEC

main89661-78660iAGZ15201709-201905

DENSO,TAIWAN SPEC

main89661-78690iAGZ15201709-201905

DENSO,VIETNAM SPEC

main89661-78750iAGZ10201805-201905

DENSO,SLOVENIA, CROATIA SPEC

main89661-78760iAGZ15201805-201905

DENSO,SLOVENIA, CROATIA SPEC

main89661-78810iAYZ15..LHD201805-202109

DENSO,MONGOL SPEC

main89661-78820iAYZ1#..LHD..L201805-202007

DENSO,CHILE SPEC

main89661-78830iAYZ1#..LHD201805-201905

DENSO,SLOVENIA, CROATIA SPEC

main89661-78880iAYZ1#..LHD201905-202007

DENSO,SLOVENIA, CROATIA SPEC

main89661-78B40iAGZ10201905-202007

DENSO,TAIWAN SPEC

main89661-78B60iAGZ15201905-202007

DENSO,TAIWAN SPEC

main89661-78B90iAGZ15201905-202109

DENSO,MONGOL SPEC

main89661-78C20iAGZ10201905-202007

DENSO,SLOVENIA, CROATIA SPEC

main89661-78C30iAGZ15201905-202007

DENSO,SLOVENIA, CROATIA SPEC

main89661-78C40iAYZ15..RHD201905-202109

DENSO,INDIA SPEC

main89661-78E90iZGZ10202007-202109

DENSO,TAIWAN SPEC

main89661-78F90iAGZ10202007-202109

DENSO,SLOVENIA, CROATIA SPEC

main89661-78G00iAGZ15202007-202109

DENSO,SLOVENIA, CROATIA SPEC

main89661-78G40iAYZ1#..LHD202007-202109

DENSO,CHILE SPEC

main89661-78G60iAYZ1#..LHD202007-202109

DENSO,SLOVENIA, CROATIA SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42060iAYZ1#,ZGZ1#201407-202109

main89667-78010iAGZ1#201412-202109

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48180iZGZ1#;AYZ1#..RHD201407-202109

main89668-78010iAGZ1#201412-202109

main89668-78020iAYZ1#..LHD201407-202109

9011906915

main90119-06915

9011906A06

main90119-06A06

9015350010

main90153-50010

9043012221

main90430-12221

9155180616

main91551-80616

9167380616

main91673-80616

9415180600

main94151-80600

15 parts on this diagram · 3 diagrams in section
