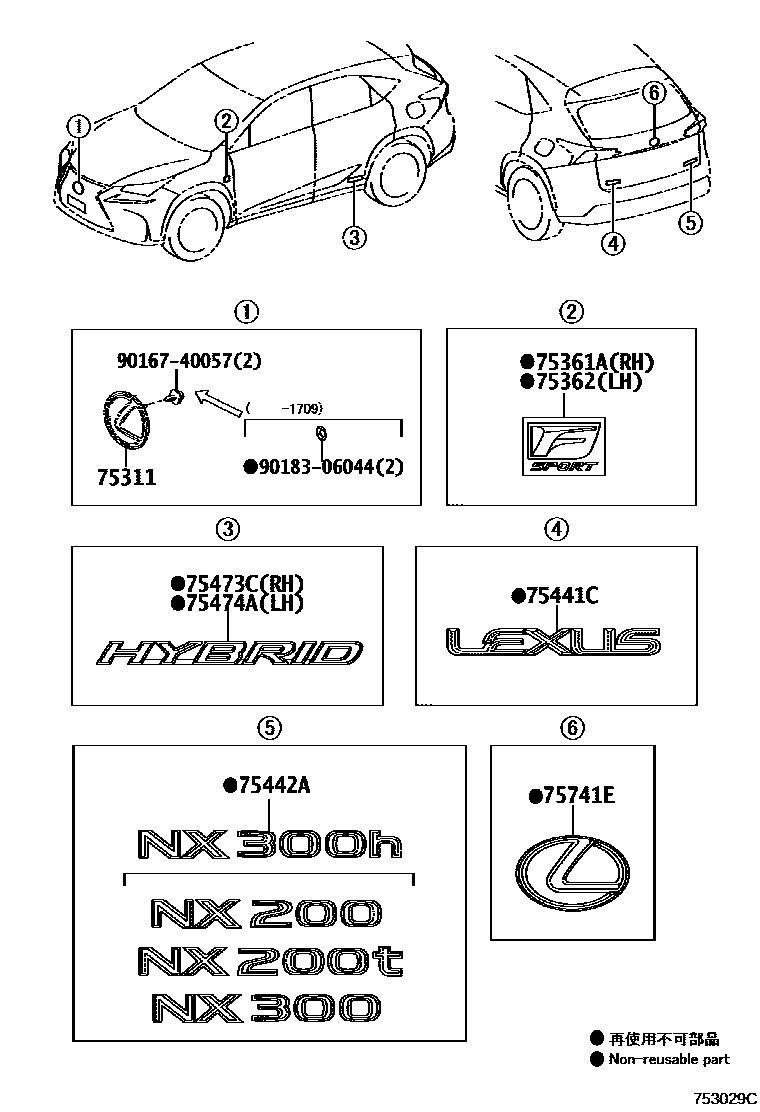

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02107iAGZ1#,ZGZ1#201709-202109

main90975-02108iAYZ1#201709-202109

main90975-02125iAGZ1#,ZGZ1#201410-201709

main90975-02126iAYZ1#201407-201709

75361APLATE, FRONT FENDER NAME, NO.1

75362PLATE, FRONT FENDER NAME, NO.2

main75362-78010

75441CPLATE, BACK DOOR NAME

main75444-78010iAGZ1#,AYZ1#201709-202109

LEXUS,AZERBAIJAN, ARMENIA, GEORGIA SPEC

main75444-78010iAGZ1#,AYZ1#201709-202109

LEXUS,TAIWAN SPEC

main75444-78010iZGZ1#201407-202109

LEXUS

main75444-78010iZGZ1#201709-202109

LEXUS,UKRAINE SPEC

main75444-78020iAGZ15,AYZ15..LHD201709-202109

LEXUS,BELARUS, KAZAKHSTAN SPEC

main75444-78020iZGZ1#201410-202109

LEXUS

main75444-78020iZGZ1#201709-202109

LEXUS,RUSSIA SPEC

main75444-78020iZGZ1#201709-202109

LEXUS,AZERBAIJAN, ARMENIA, GEORGIA SPEC

75442APLATE, BACK DOOR NAME, NO.2

main75443-78020iAGZ1#201412-201709

NX200T

main75443-78030iAYZ1#201407-202109

NX300H

main75443-78040iZGZ1#201410-202109

NX200

main75443-78070iAGZ1#201709-202109

NX300

75473CPLATE, BODY SIDE NAME

main75473-78010iAYZ1#201709-202109

main75473-78010iAYZ1#201407-201709

INDIA SPEC

75474APLATE, REAR BODY NAME, NO.4

main75473-78030iAYZ15..RHD201407-201709

INDIA SPEC

main75473-78030iAYZ1#201709-202109

75741EEMBLEM, SYMBOL

main90975-02114iAYZ1#201709-202109

main90975-02122iAGZ1#,ZGZ1#201709-202109

main90975-02134iAYZ1#201407-201709

main90975-02212iAGZ1#201412-201709

main90975-02226iZGZ1#201410-201709

9016740057

main90167-40057

9018306044

main90183-06044

10 parts on this diagram · 1 diagram in section
