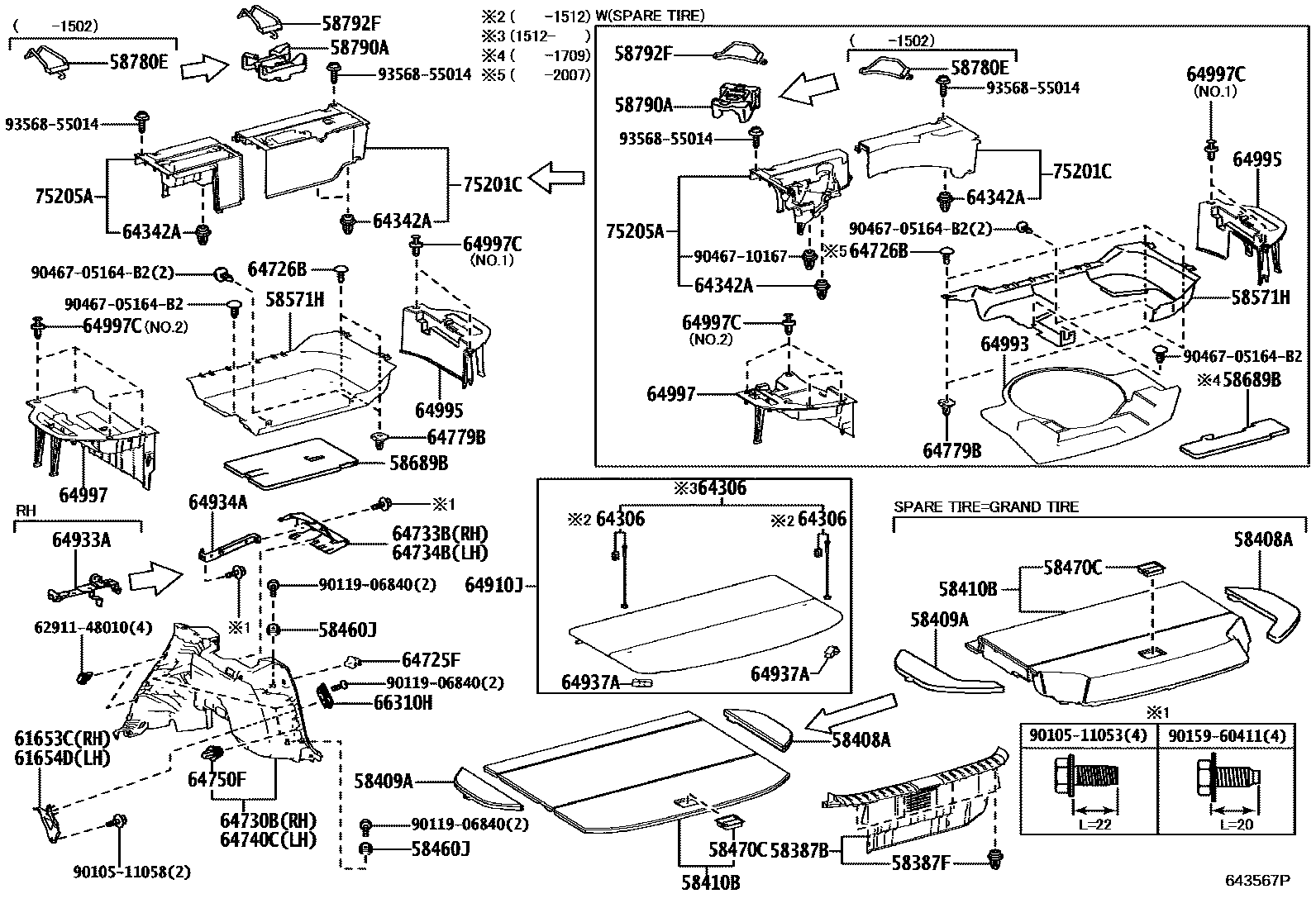

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM2#,3#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
SPARE TIRE-TEMPORARY(T165/80D17),BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
SPARE TIRE-TEMPORARY(T165/80D17),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
58387FCLIP, REAR FLOOR FINISH PLATE
58408ABOARD SUB-ASSY, DECK, NO.2
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
58409ABOARD SUB-ASSY, DECK, NO.3
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
58410BBOARD ASSY, DECK
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
SPARE TIRE-GROUND TIRE,BLACK,TRIM1#,2#,3#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
58460JSTRIKER ASSY, LUGGAGE HOLD BELT
58470CHANDLE ASSY, DECK BOARD
BLACK
58571HCARPET, REAR FLOOR
JACK-WITH&SPARE TIRE-GROUND TIRE
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
sub58571-78041
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
JACK-WITH&SPARE TIRE-GROUND TIRE
JACK-WITH&SPARE TIRE-GROUND TIRE
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
58689BWEIGHT, REAR FLOOR
SPARE TIRE-GROUND TIRE
SPARE TIRE-TEMPORARY(T165/80D17)
SPARE TIRE-TEMPORARY(T165/80D17)
SPARE TIRE-GROUND TIRE
SPARE TIRE-TEMPORARY(T165/80D17)
58780EBAND ASSY, TOOL BOX
JACK-WITH
58790ACARRIER ASSY, JACK
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
JACK-WITH&SPARE TIRE-GROUND TIRE
JACK-WITH
JACK-WITH
58792FSUPPORT, JACK CARRIER
JACK-WITH
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
JACK-WITH&SPARE TIRE-GROUND TIRE
61653CBRACKET, DECK SIDE TRIM, RH
61654DBRACKET, DECK SIDE TRIM, NO.2
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64342ACLIP
SPARE TIRE-TEMPORARY(T165/80D17)
SPARE TIRE-GROUND TIRE
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
JACK-WITH&SPARE TIRE-GROUND TIRE
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726BCLIP, DECK REAR TRIM
JACK-WITH&SPARE TIRE-GROUND TIRE,BLACK
SPARE TIRE-TEMPORARY(T165/80D17),BLACK
SPARE TIRE-GROUND TIRE,BLACK
BLACK
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17),BLACK
64730BPANEL ASSY, DECK TRIM SIDE, RH
REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,2#,3#,4#
REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#
BLACK,TRIM2#,3#
REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,2#,3#,4#,6#,7#
64733BBOARD, DECK TRIM SIDE, UPR RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#
64734BBOARD, DECK TRIM SIDE, UPPER LH
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64779BSTOPPER, SPARE WHEEL COVER
64910JCOVER ASSY, TONNEAU
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM1#,2#,3#
64933ABRACKET, TONNEAU COVER HOLDER, RH
64934ABRACKET, TONNEAU COVER HOLDER, LH
64937ACAP, TONNEAU COVER HOLDER, NO.1
64995BOX, DECK FLOOR, RH
sub64995-78021
SPARE TIRE-TEMPORARY(T165/80D17)
SPARE TIRE-GROUND TIRE
SPARE TIRE-TEMPORARY(T165/80D17)
SPARE TIRE-GROUND TIRE
64997BOX, DECK FLOOR, LH
sub64997-78011
SPARE TIRE-TEMPORARY(T165/80D17)
SPARE TIRE-GROUND TIRE
SPARE TIRE-TEMPORARY(T165/80D17)
SPARE TIRE-GROUND TIRE
64997CCLIP(FOR DECK FLOOR BOX)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
SPARE TIRE-TEMPORARY(T165/80D17),NO.2:REFER ILLUST.
SPARE TIRE-GROUND TIRE,NO.2:REFER ILLUST.
66310HHOOK ASSY, ROPE
75201CBOX SUB-ASSY, TOOL, NO.1
sub75201-78011
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
JACK-WITH&SPARE TIRE-GROUND TIRE
JACK-WITH&SPARE TIRE-GROUND TIRE
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
75205ABOX SUB-ASSY, TOOL, NO.2
sub75205-78011
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
JACK-WITH&SPARE TIRE-GROUND TIRE
JACK-WITH&SPARE TIRE-GROUND TIRE
JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)
6291148010WEATHERSTRIP, CENTER FRONT SIDE WINDOW, CENTER
main62911-48010
9010511053
main90105-11053
9010511058
main90105-11058
9011906840
main90119-06840
9015960411
main90159-60411
9046705164B2
main90467-05164B2
9046710167
main90467-10167
9356855014
main93568-55014
43 parts on this diagram · 2 diagrams in section
