MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
DK.GRAY
55216CPAD, DASH PANEL INSULATOR, NO.4
58435ESILENCER, FRONT FLOOR, CENTER
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
BLACK,TRIM2#,3#
58514CMAT, FROOR, REAR
58520CCLIP(FOR FRONT FLOOR CARPET)
58530BCLIP(FOR FRONT FLOOR CARPET)
58540DCARPET ASSY, FLOOR, REAR
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM1#,2#,3#
BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
64726SCLIP, LUGGAGE TRIM, REAR
BLACK
64779CSTOPPER, SPARE WHEEL COVER

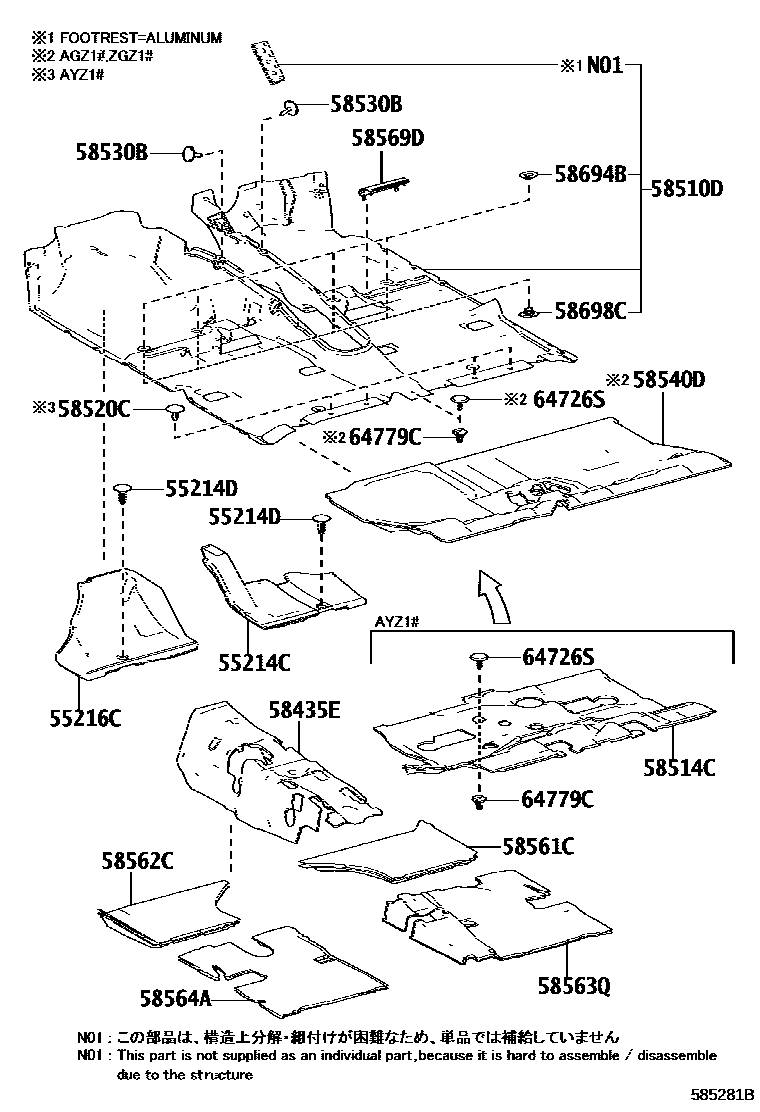

18 parts on this diagram · 1 diagram in section
