527510
›

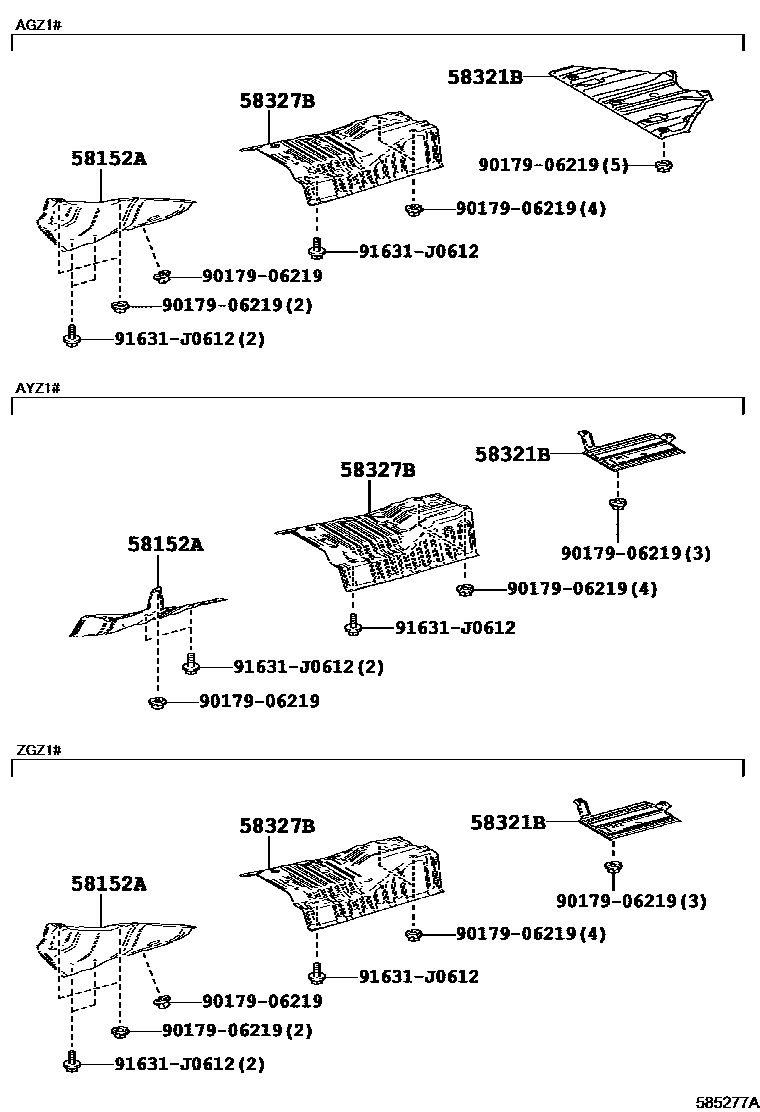

FLOOR INSULATOR
FLOOR INSULATOR
58152A
INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
main
58152-42030
i
AGZ1#,ZGZ1#
201410-201709
main
58152-48030
i
AYZ1#
201407-201504
sub
58152-48031
main
58152-48031
i
AYZ1#
201505-201904
main
58152-78030
i
AYZ1#
201905
58321B
INSULATOR, REAR FLOOR HEAT, NO.1
main
58321-78010
i
AGZ1#
201412-201709
main
58321-78020
i
AYZ1#,ZGZ1#
201407-201709
58327B
INSULATOR, MAIN MUFFLER HEAT
main
58327-42020
i
AGZ1#,ZGZ1#
201410-201709
main
58327-48050
i
AYZ1#
201407-201804
main
58327-78010
i
AYZ1#
201805-201905
9017906219
main
90179-06219
91631J0612
main
91631-J0612
5 parts on this diagram · 1 diagram in section
