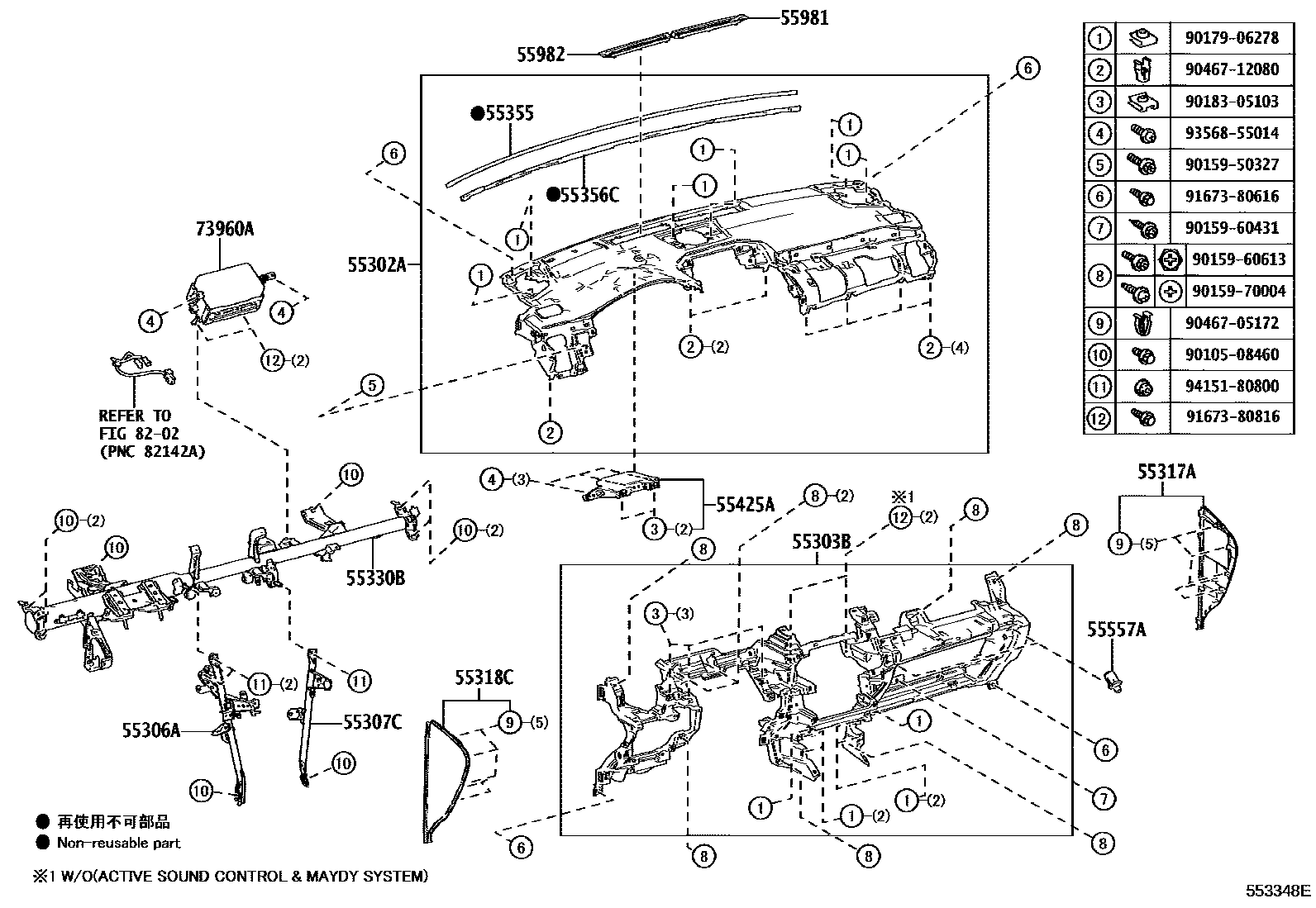

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1W/O(HEAD UP DISPLAY) 0002 1W(HEAD UP DISPLAY) 0003 1W(HEAD UP DISPLAY) 0004 1DRIVER SIDE 0005 1DRIVER SIDE 0006 1CENTER 0007 1CENTER 0008 1PASSENGER SIDE 0009 1PASSENGER SIDE 0010 1W/O(HEAD UP DISPLAY) 0011 1W(HEAD UP DISPLAY) 0012 1W(HEAD UP DISPLAY) 0013 1DRIVER SIDE 0014 1DRIVER SIDE 0015 1CENTER 0016 1CENTER 0017 1PASSENGER SIDE 0018 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55305-78010-C1iAGZ1#,AYZ1#..LHD..L201407-201709

BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92

main55305-78010-C1iAYZ10..LHD..E201407-201709

BLACK/LT.GRAY,TRIM1#,2#,3#

main55305-78010-C1iZGZ1#201410-201709

BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#

main55305-78010-C2iAGZ1#,AYZ1#..LHD..L201407-201709

BLACK/DK.ROSE,TRIM91,93,94,95

main55305-78020-C1iAYZ10..RHD..E201407-201709

BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92

main55305-78020-C1iAGZ1#,AYZ1#..RHD..L201407-201709

BLACK/LT.GRAY,TRIM1#,2#,3#

main55305-78020-C2iAGZ1#,AYZ1#..RHD..L201407-201709

BLACK/DK.ROSE,TRIM91,93,94,95

main55305-78050-C0iAGZ1#,AYZ1#..LHD..L201709

BLACK/DK.ROSE,TRIM35,36,37

main55305-78050-C1iAGZ1#,AYZ1#..LHD..L201709

BLACK/MUSTARD YELLOW,TRIM5#

main55305-78050-C2iZGZ1#201709-202007

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#

main55305-78050-C2iAGZ1#,AYZ1#..LHD..L201905

BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9#

main55305-78050-C2iAYZ10..LHD..E201709

BLACK/LT.GRAY,TRIM2#,3#

main55305-78050-C3iAGZ1#,AYZ1#..LHD..L201905

BLACK/ORANGE,TRIM44,45,46,47

main55305-78050-C5iAGZ1#,AYZ1#,ZGZ1#..LHD..L202007

BLACK/CRIMSON,TRIM38

main55305-78060-C0iAYZ1#..RHD..L201709

BLACK/DK.ROSE,TRIM35,36,37

main55305-78060-C1iAYZ1#..RHD..L201709

BLACK/MUSTARD YELLOW,TRIM5#

main55305-78060-C2iAYZ10..RHD..E201709

BLACK/LT.GRAY,TRIM2#,3#

main55305-78060-C2iAYZ1#..RHD..L201709-201905

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#

main55305-78060-C2iAYZ1#..RHD..L201905

BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9#

main55305-78060-C3iAYZ1#..RHD..L201905

BLACK/ORANGE,TRIM44,45,46,47

main55305-78060-C4iAYZ1#..RHD..L202007

BLACK/CRIMSON,TRIM38

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-78010-C0iAYZ10..LHD..E201407-201512

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

sub55303-78011

main55303-78010-C0iAYZ10..LHD..E201407-201512

BLACK,TRIM1#,2#,3#

sub55303-78011

main55303-78010-C0iZGZ1#201410-201512

BLACK,TRIM0#,1#,2#,3#,5#

sub55303-78011

main55303-78011-C0iAGZ1#,AYZ1#..LHD..L201601-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main55303-78011-C0iAYZ10..LHD..E201601-201709

BLACK,TRIM1#,2#,3#

main55303-78011-C0iAYZ10..LHD..E201601-201709

BLACK,TRIM0#,1#,2#,3#,5#

main55303-78011-C0iAYZ10..LHD..E201709

BLACK,TRIM2#,3#

main55303-78011-C0iAYZ10..LHD..E201709

BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

main55303-78011-C0iAYZ10..LHD..E201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#

main55303-78020-C0iAGZ1#,AYZ1#..RHD..L201407-201709

BLACK,TRIM1#,2#,3#

main55303-78020-C0iAYZ10..RHD..E201709

BLACK,TRIM2#,3#

main55303-78020-C0iAYZ10..RHD..E201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#

main55303-78020-C0iAGZ1#,AYZ1#..RHD..L201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-78010iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

main55306-78020iAYZ1#..RHD¥2,780201407-201709

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-78010iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

main55307-78020iAGZ1#,AYZ1#..RHD¥1,730201407-201709

55317APANEL, INSTRUMENT SIDE, RH

main55317-78010-C0iAYZ10..RHD..E201407-201602

BLACK,TRIM1#,2#,3#

sub55317-78011¥2,890

main55317-78010-C0iAYZ10..RHD..E201407-201602

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

sub55317-78011¥2,890

main55317-78011-C0iAYZ10..RHD..E201709

TAIWAN SPEC,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#

main55317-78011-C0iAYZ10..RHD..E201709

TAIWAN SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

main55317-78011-C0iAYZ1#..LHD..L201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#

main55317-78011-C0iAYZ1#..LHD..L201709

BLACK,TRIM2#,3#

main55317-78011-C0iAYZ10..RHD..E201603-201709

BLACK,TRIM1#,2#,3#

main55317-78011-C0iAYZ10..RHD..E201603-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main55317-78011-C0iAYZ10..RHD..E201603-201709

TAIWAN SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main55317-78020-C0iZGZ1#201709

BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

main55317-78020-C0iAGZ1#,AYZ1#..LHD..L201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#

main55317-78020-C0iAGZ1#,AYZ1#..LHD..L201709

BLACK,TRIM2#,3#

main55317-78020-C0iZGZ1#201410-201709

BLACK,TRIM0#,1#,2#,3#,5#

main55317-78020-C0iAGZ1#,AYZ1#..LHD..L201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main55317-78020-C0iAGZ1#,AYZ1#..LHD..L201407-201709

BLACK,TRIM1#,2#,3#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-78010-C0iAYZ10..LHD..E201407-201602

BLACK,TRIM1#,2#,3#

sub55318-78011¥2,890

main55318-78010-C0iAGZ1#,AYZ1#..LHD..L201407-201602

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

sub55318-78011¥2,890

main55318-78010-C0iZGZ1#201410-201602

BLACK,TRIM0#,1#,2#,3#,5#

sub55318-78011¥2,890

main55318-78011-C0iAGZ1#,AYZ1#..LHD..L201603-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main55318-78011-C0iAYZ10..LHD..E201603-201709

BLACK,TRIM1#,2#,3#

main55318-78011-C0iAYZ10..LHD..E201603-201709

BLACK,TRIM0#,1#,2#,3#,5#

main55318-78011-C0iAYZ10..LHD..E201709

BLACK,TRIM2#,3#

main55318-78011-C0iAYZ10..LHD..E201709

BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

main55318-78011-C0iAYZ10..LHD..E201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#

main55318-78020-C0iAGZ1#,AYZ1#..RHD..L201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main55318-78020-C0iAYZ10..RHD..E201407-201709

BLACK,TRIM1#,2#,3#

main55318-78020-C0iAYZ10..RHD..E201709

BLACK,TRIM2#,3#

main55318-78020-C0iAYZ10..RHD..E201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-78021iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

main55330-78041iAGZ1#,AYZ1#..RHD201407-201709

main55330-78060iAGZ1#,AYZ1#,ZGZ1#..LHD201709

main55330-78080iAYZ1#..RHD201709

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-78010iAGZ1#,AYZ1#,ZGZ1#¥760201407-201709

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-78030iAGZ1#,AYZ1#,ZGZ1#¥1,510201407-201709

55425ABRACKET, METER HOOD SET

main55425-78010iAGZ1#,AYZ1#,ZGZ1#..LHD201407-201709

main55425-78020iAGZ1#,AYZ1#..RHD¥1,690201407-201709

main55425-78030iAGZ1#,AYZ1#,ZGZ1#¥1,410201709

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-52030iAGZ1#,AYZ1#,ZGZ1#¥200201706-201709

main55557-78010iAGZ1#,AYZ1#,ZGZ1#¥260201407-201705

sub55557-52030¥200

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-78010iAGZ1#,AYZ1#,ZGZ1#¥650201407-201709

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-78010iAGZ1#,AYZ1#,ZGZ1#¥650201407-201709

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-78050iAGZ1#,AYZ1#,ZGZ1#¥83,200201407-201709

8202

9010508460

main90105-08460¥80

9015950327

main90159-50327¥70

9015960431

main90159-60431¥70

9015960613

main90159-60613¥60

9015970004

main90159-70004¥60

9017906278

main90179-06278¥100

9018305103

main90183-05103¥90

9046705172

main90467-05172¥60

9046712080

main90467-12080¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

28 parts on this diagram · 18 diagrams in section
