SUSPENSION CROSSMEMBER & UNDER COVER

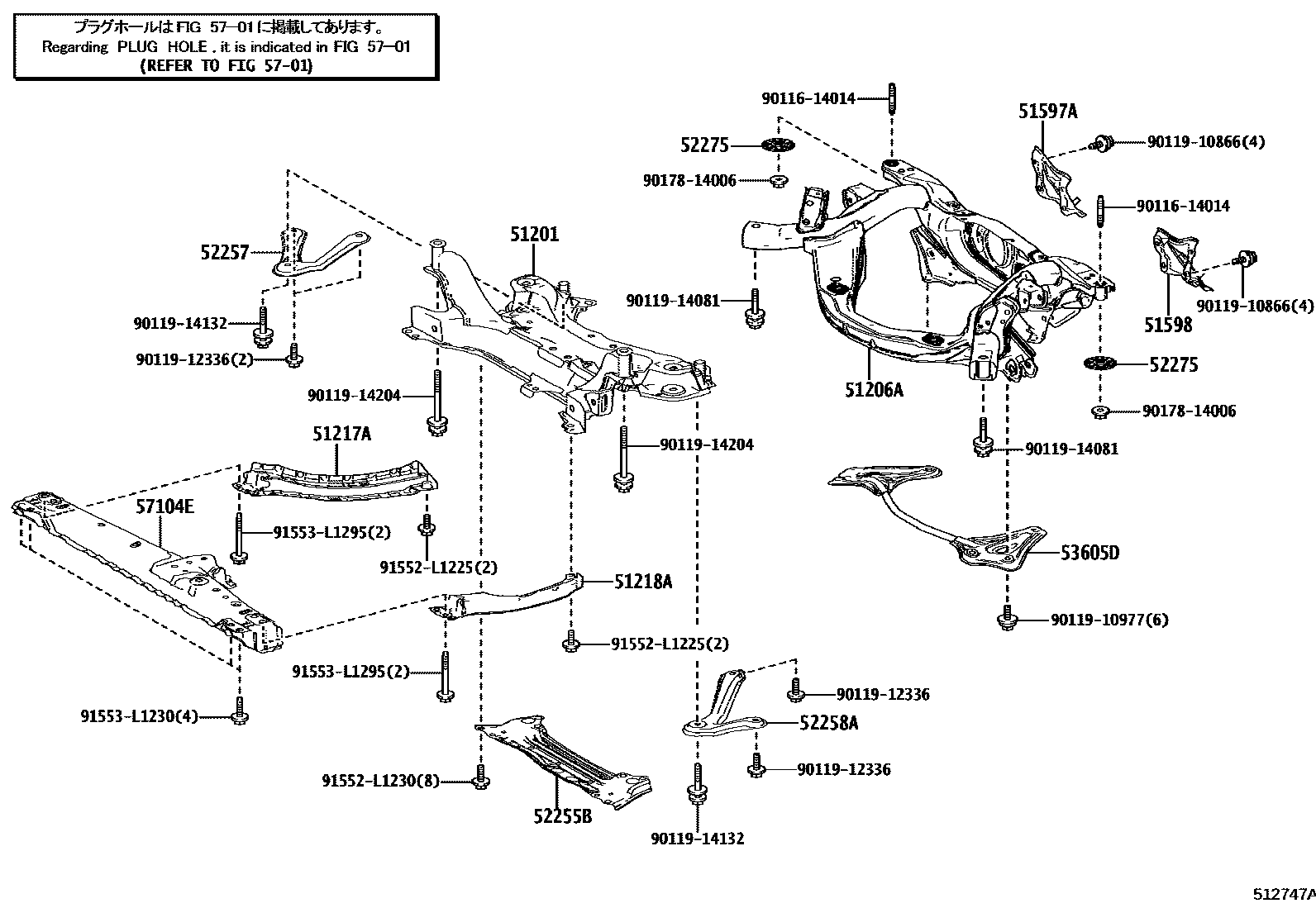

Parts diagram

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-78010i¥58,700201410-201709

main51201-78020i¥59,500201407-201709

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48060i¥61,400201407-201709

main51206-78010i¥58,600201410-201709

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-42020i¥6,800201410-201709

main51107-48020i¥4,250201407-201709

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-42020i¥4,520201410-201709

main51108-48020i¥3,970201407-201709

51597ABRACKET, REAR STABILIZER SUPPORT, RH

main51597-48010i¥2,710201407-201709

51598BRACKET, REAR STABILIZER SUPPORT, LH

main51598-48010i¥2,920201407-201709

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010i¥7,400201407-201709

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42010i¥1,880201410-201709

main52257-48040i¥1,930201407-201709

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42010i¥2,100201410-201709

main52258-48050i¥2,100201407-201709

52275CUSHION,REAR SUSPENSION MEMBER, REAR UPPER

main52203-42020i¥2,830201407-201709

53605DBRACE SUB-ASSY, REAR SUSPENSION

main53650-78010i¥7,500201410-201709

main53650-78020i¥11,700201407-201709

5701

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-42061i¥29,000201906

FRAME NO.=5,6XXXXXX

main57104-78010i¥29,000201906

FRAME NO.=1,2XXXXXX

main57104-78010i¥29,000201407-201906

main57104-78020i201410-201709

9011614014

main90116-14014¥470

9011910866

main90119-10866¥100

9011910977

main90119-10977¥210

9011912336

main90119-12336¥210

9011914081

main90119-14081¥400

9011914132

main90119-14132¥540

9011914204

main90119-14204¥470

9017814006

main90178-14006¥160

91552L1225

main91552-L1225¥160

91552L1230

main91552-L1230¥160

91553L1230

main91553-L1230¥210

91553L1295

main91553-L1295¥340

25 parts on this diagram · 4 diagrams in section
