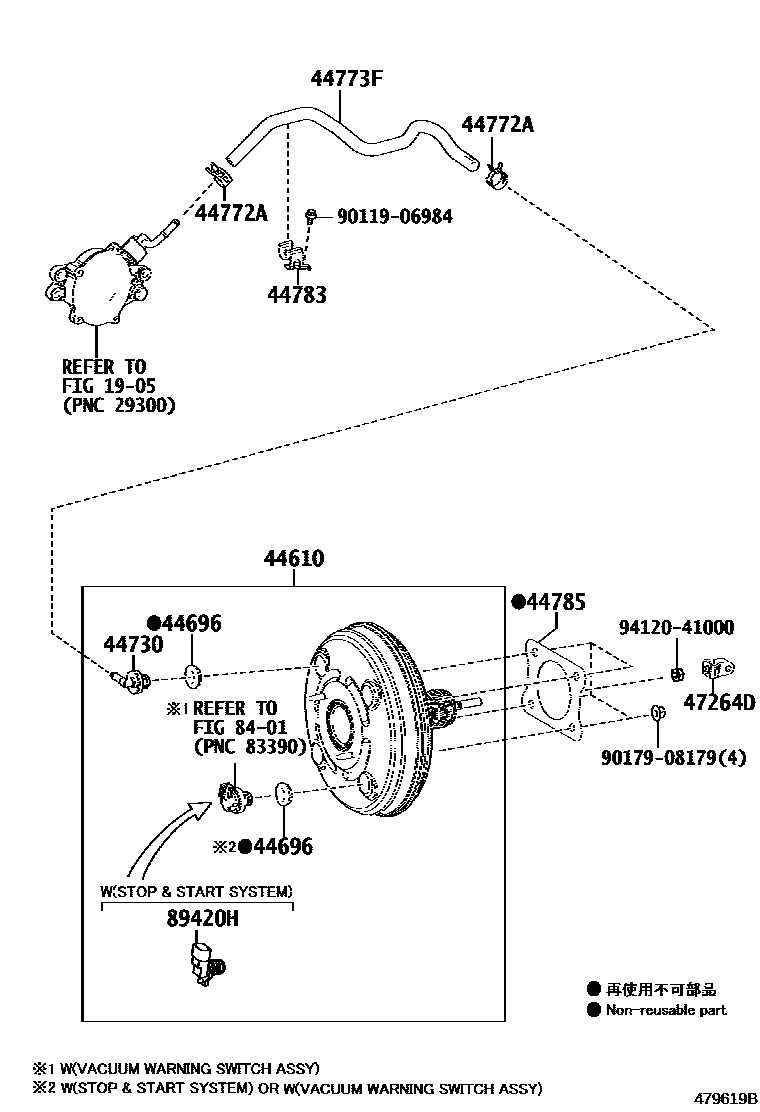

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1905

44610BOOSTER ASSY, BRAKE

main44610-78060iZGZ1#201410-201709

main44610-78090iAGZ1#201412-201709

main44610-78120iAGZ1#..RHD201412-201709

44696GROMMET, CHECK VALVE

main90480-24439iAGZ1#¥390201412-201709

PERU SPEC

main90480-24439iAGZ1#..LHD¥390201412-201709

TAIWAN SPEC

main90480-24439iAGZ1#..LHD¥390201412-201709

CHILE SPEC

main90480-24439iAGZ1#..LHD¥390201412-201709

VIETNAM SPEC

main90480-24439iZGZ1#¥390201410-201709

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iAGZ1#,ZGZ1#¥1,310201410-201709

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42080iAGZ1#..RHD¥650201412-201709

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iAGZ1#,ZGZ1#¥230201410-201709

44773FHOSE, UNION TO CHECK VALVE

main44773-78010iAGZ1#..LHD201412-201709

main44773-78020iZGZ1#201410-201709

44783CLAMP, VACUUM HOSE

main44783-78010iAGZ1#¥300201412-201709

44785GASKET, BRAKE BOOSTER

main44785-12040iAGZ1#,ZGZ1#¥200201410-201709

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iAGZ1#,ZGZ1#¥250201410-201709

8401

89420HSENSOR ASSY, VACUUM

main89421-52020iZGZ1#¥5,900201410-201709

9011906984

main90119-06984¥60

9017908179

main90179-08179¥200

9412041000

main94120-41000¥80

15 parts on this diagram · 3 diagrams in section
