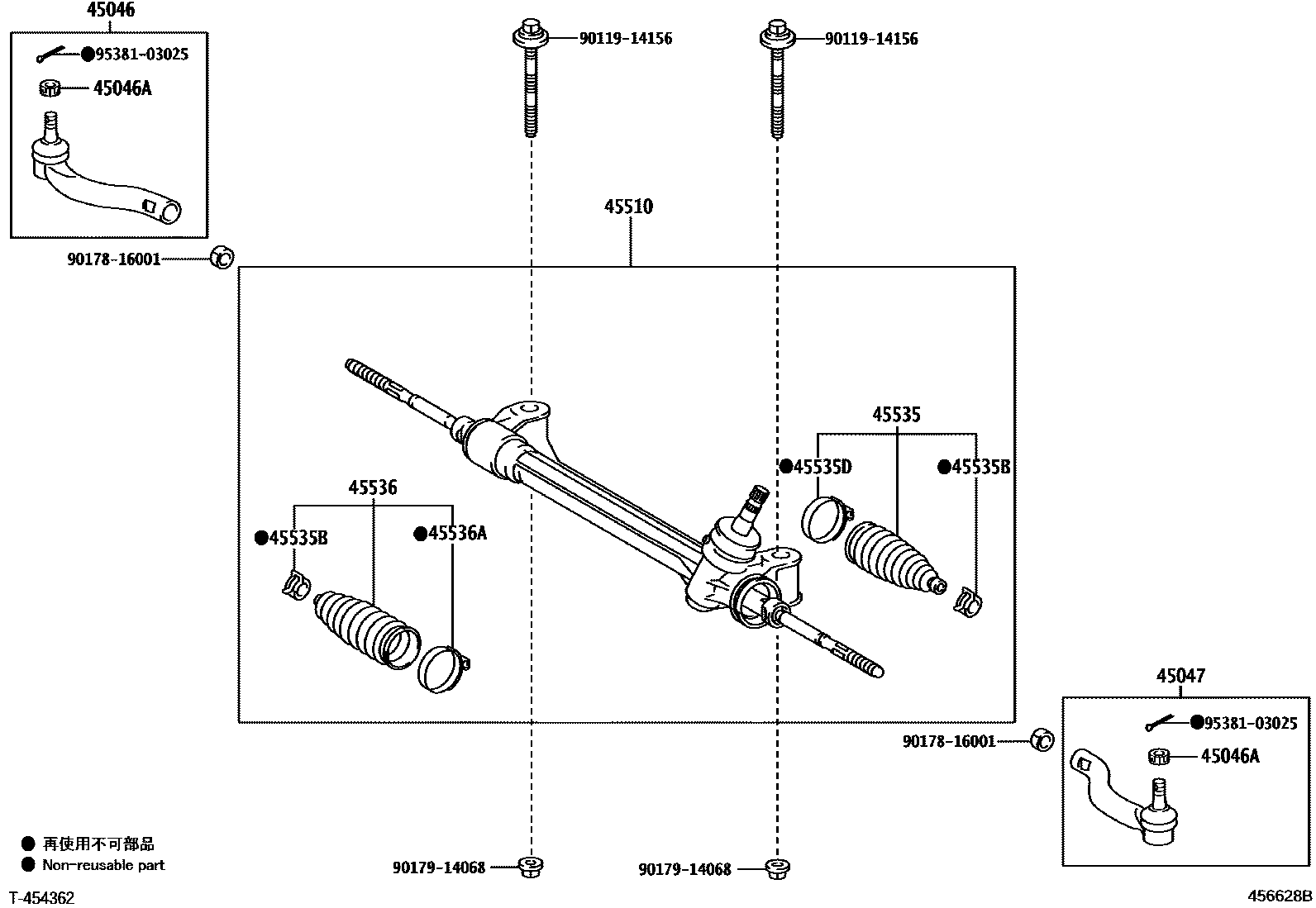

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49195iAGZ1#,AYZ1#,ZGZ1#201407-201709

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAGZ1#,AYZ1#,ZGZ1#201407-201709

45047END SUB-ASSY, TIE ROD, LH

main45047-49135iAGZ1#,AYZ1#,ZGZ1#201407-201709

45510GEAR ASSY, STEERING

main45510-42130iAGZ1#..RHD201412-201709

sub45510-42131

main45510-42170iAGZ1#,ZGZ1#201410-201803

sub45510-42171

main45510-42171iAGZ1#,ZGZ1#201804

main45510-48060iAYZ1#..RHD201407-201803

sub45510-48061

main45510-48061iAYZ1#..RHD201804

main45510-78020iAYZ1#..LHD201407-201411

sub45510-78022

main45510-78021iAYZ1#..LHD201412-201502

sub45510-78022

main45510-78022iAYZ1#..LHD201503-201806

sub45510-78023

main45510-78023iAYZ1#..LHD201807

45535BOOT, STEERING RACK, NO.1

main45535-49045iAGZ1#,AYZ1#,ZGZ1#201407-201709

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42020iAGZ1#,AYZ1#,ZGZ1#201407-201709

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-42010iAGZ1#,AYZ1#,ZGZ1#201407-201709

45536BOOT, STEERING RACK, NO.2

main45535-49045iAGZ1#,AYZ1#,ZGZ1#201407-201709

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iAGZ1#,AYZ1#,ZGZ1#201407-201709

9011914156

main90119-14156

9017816001

main90178-16001

9017914068

main90179-14068

9538103025

main95381-03025

13 parts on this diagram · 2 diagrams in section
