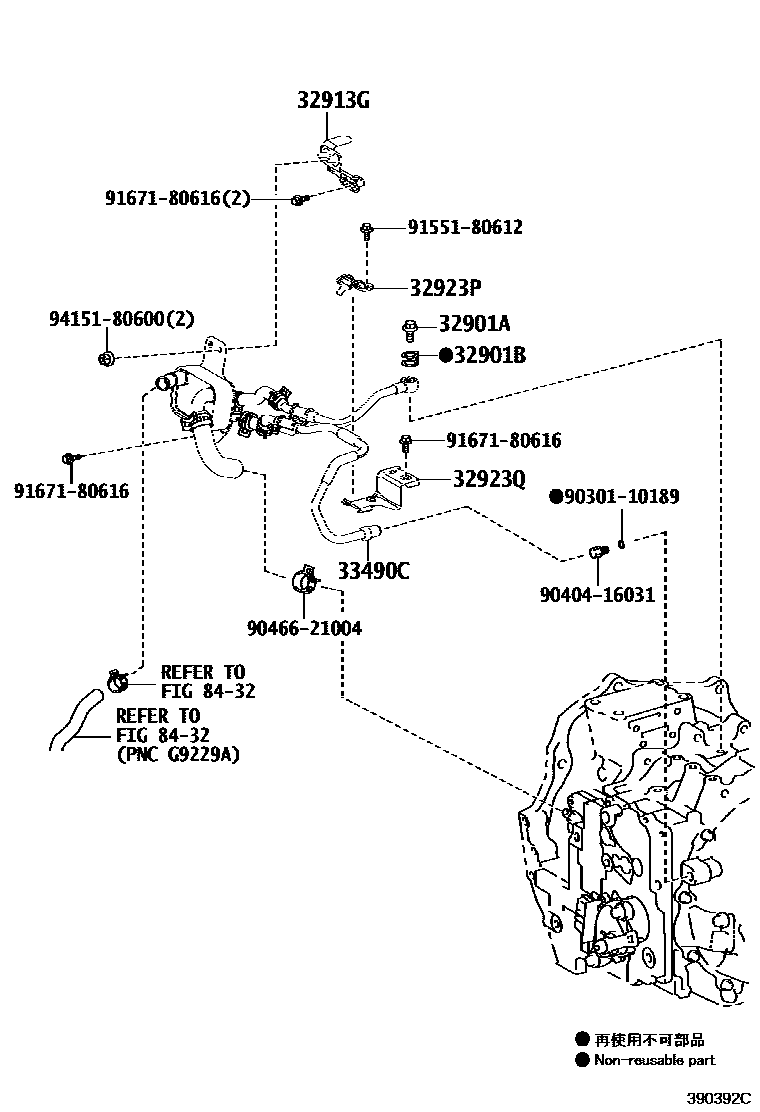

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAYZ1#201407-201709

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAYZ1#201407-201709

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-48040iAYZ1#201407-201709

32923PCLAMP, OIL COOLER TUBE, NO.1

main32927-48010iAYZ1#201407-201709

32923QCLAMP, OIL COOLER TUBE

main32925-48010iAYZ1#201407-201709

33490CCOOLER ASSY, TRANSMISSION OIL

main33490-48010iAYZ1#201407-201709

8432

9030110189

main90301-10189

9040416031

main90404-16031

9046621004

main90466-21004

9155180612

main91551-80612

9167180616

main91671-80616

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
