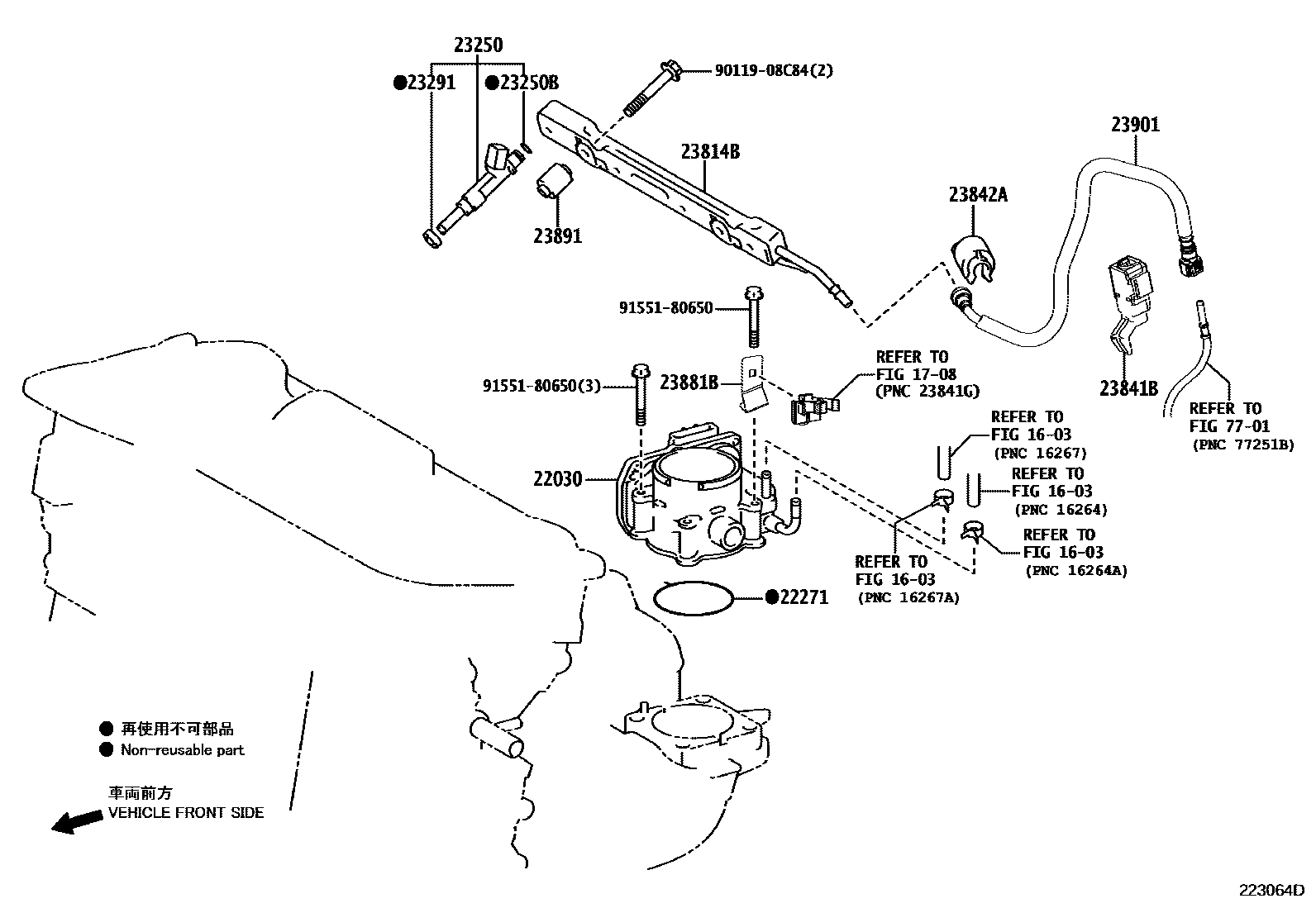

FUEL INJECTION SYSTEM
1603
1708
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
ROMANIA SPEC
CANARY ISLANDS SPEC
ISRAEL SPEC
REUNION SPEC
BULGARIA SPEC
SLOVENIA, CROATIA SPEC
TURKEY SPEC
(J)
ENGLAND SPEC
CYPRUS, MALTA SPEC
IRELAND SPEC
FRANCE SPEC
DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ
ICELAND SPEC
PORTUGAL, GREECE SPEC
CZECH, HUNGARY, POLAND, SLOVAKIA SPEC
NORWAY, SWEDEN, FINLAND, DENMARK SPEC
(L)
23291INSULATOR, INJECTOR VIBRATION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23881BBRACKET, FUEL HOSE
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
7701
9011908C84
9155180650
16 parts on this diagram · 4 diagrams in section
