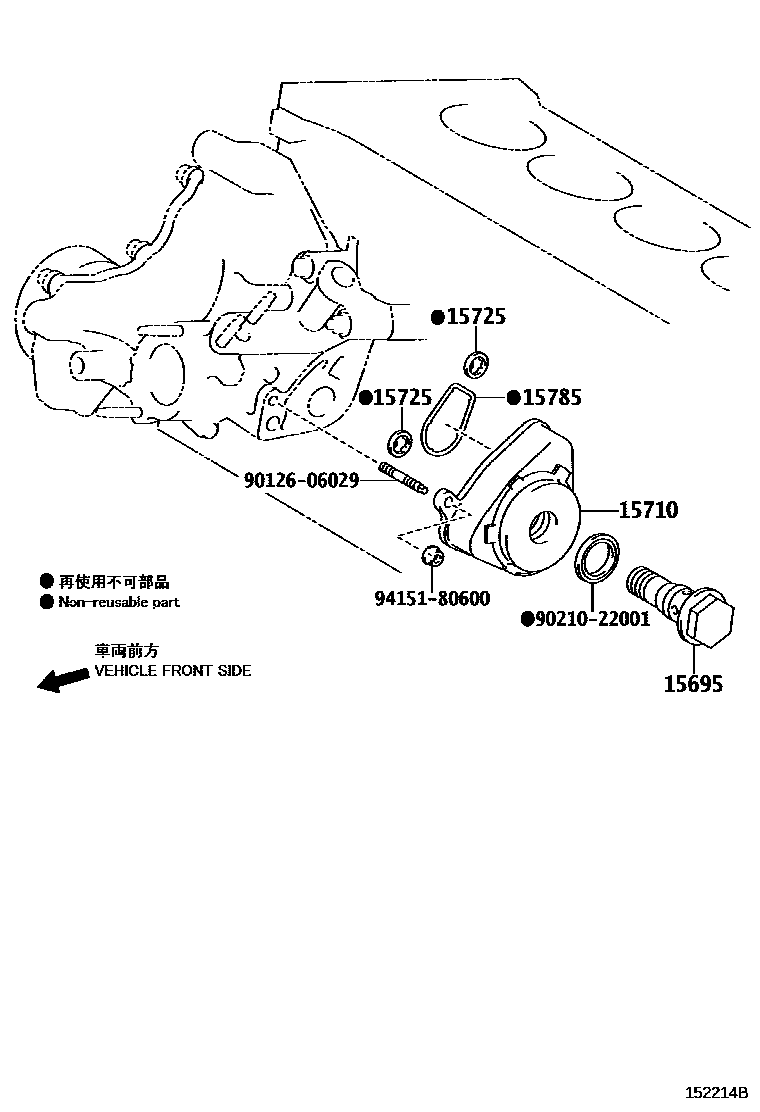

ENGINE OIL COOLER

0001 1 0002 1

15695BOLT, OIL COOLER UNION

main15695-62030i2ARFXE..AYZ1#201407-201709

15710COOLER ASSY, OIL

main15710-36010i2ARFXE..AYZ1#201407-201709

main15710-36030i8ARFTS..AGZ1#201412-201705

sub15710-36031

sub82715-78160

sub91551-80616

main15710-36031i8ARFTS..AGZ1#201705-201709

15725GASKET, OIL COOLER COVER

main15725-36010i2ARFXE..AYZ1#201407-201709

15785GASKET, OIL COOLER

main15785-36010i2ARFXE..AYZ1#201407-201709

main15785-36020i8ARFTS..AGZ1#201412-201602

main15785-36021i8ARFTS..AGZ1#201602-201709

9012606029

main90126-06029

9021022001

main90210-22001

9415180600

main94151-80600

7 parts on this diagram · 2 diagrams in section
