STANDARD TOOL

09110JACK ASSY

main09111-0E011iZGZ1#¥5,900201410-201602

main09111-0W150iZGZ1#¥5,900201603-202108

JACK-WITH

sub09111-0W151¥5,900

main09111-0W150iZGZ1#¥5,900201603-202108

JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)

sub09111-0W151¥5,900

main09111-0W150iZGZ1#¥5,900201603-202108

JACK-WITH&SPARE TIRE-GROUND TIRE

sub09111-0W151¥5,900

09113HANDLE, JACK

main09113-42030iZGZ1#¥550201410-201709

main09113-42030iZGZ1#¥550201709

JACK-WITH

main09113-42030iZGZ1#¥550201709

JACK-WITH&SPARE TIRE-TEMPORARY(T165/80D17)

main09113-42030iZGZ1#¥550201709

JACK-WITH&SPARE TIRE-GROUND TIRE

09120BAG, TOOL

main09120-24020¥390

09130PLIERS

main09130-50040¥590

09135DRIVER, SCREW

main09135-50060iAGZ1#,AYZ1#,ZGZ1#¥590201407-202003

main99915-10700iAGZ1#,AYZ1#,ZGZ1#¥460202004

09141SPANNER

main09141-60010¥350

main09141-60020¥580

09150WRENCH, HUB NUT BOX

main09150-30020iZGZ1#¥710201410-201709

main09150-30020iZGZ1#¥710201709

JACK-WITH

42606BREPAIR KIT, TUBELESS TIRE

main42606-50040iAGZ1#,AYZ1#¥4,550201407-201709

SPARE TIRE-TEMPORARY(T165/80D17)

main42606-50040iAGZ1#,AYZ1#¥4,550201709

44890DCOMPRESSOR ASSY, AIR

main44890-78010iAGZ1#,AYZ1#¥9,500201407-201709

SPARE TIRE-GROUND TIRE

sub44890-24011¥9,500

main44890-78010iAGZ1#,AYZ1#¥9,500201709-202109

INDIA SPEC&SPARE TIRE-GROUND TIRE

sub44890-24011¥9,500

51960HOOK ASSY, FRONT

main51961-78010iAGZ1#,AYZ1#,ZGZ1#¥2,270201407-201709

main51961-78020iAGZ1#,AYZ1#,ZGZ1#¥2,060201709

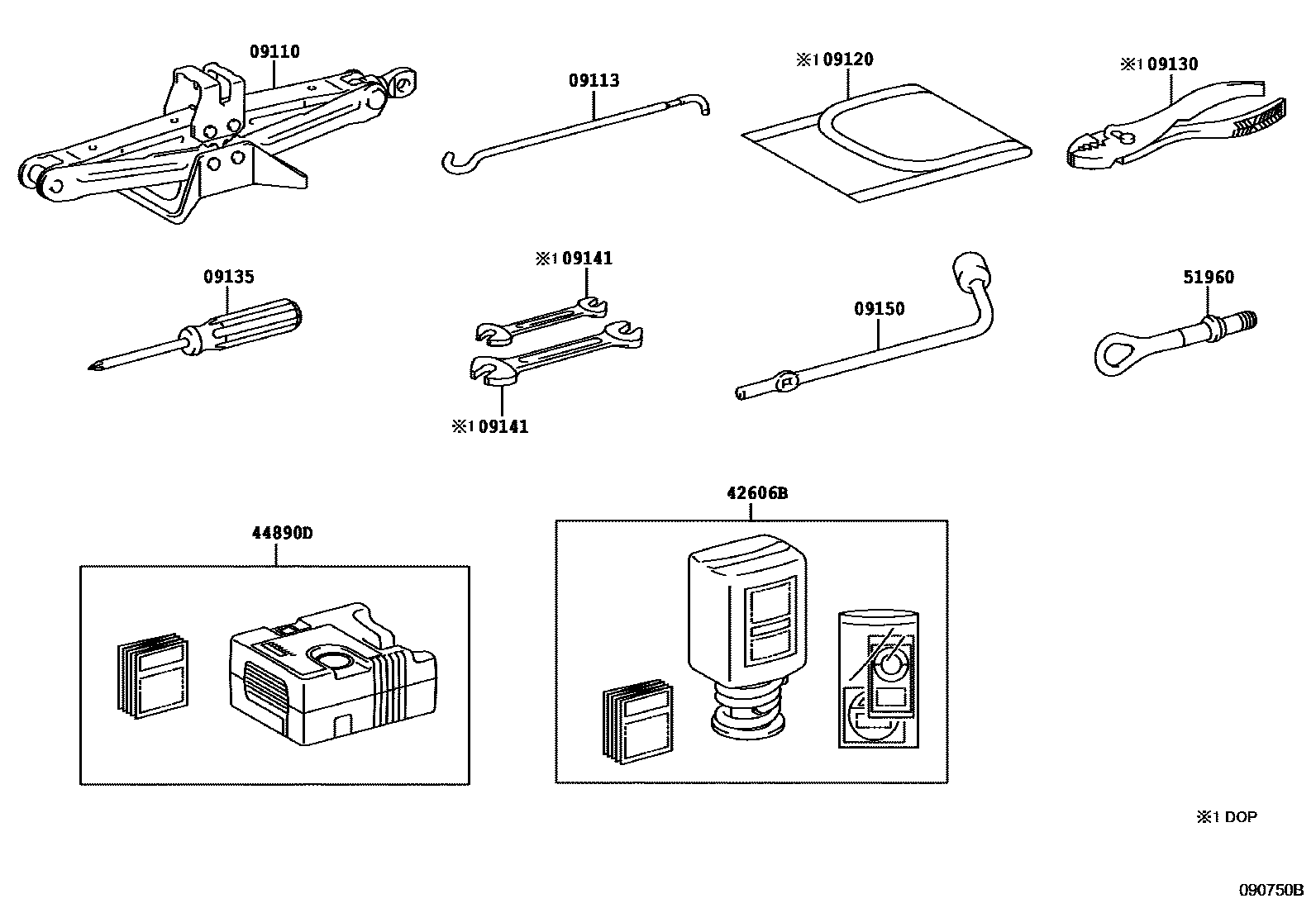

10 parts on this diagram · 1 diagram in section
