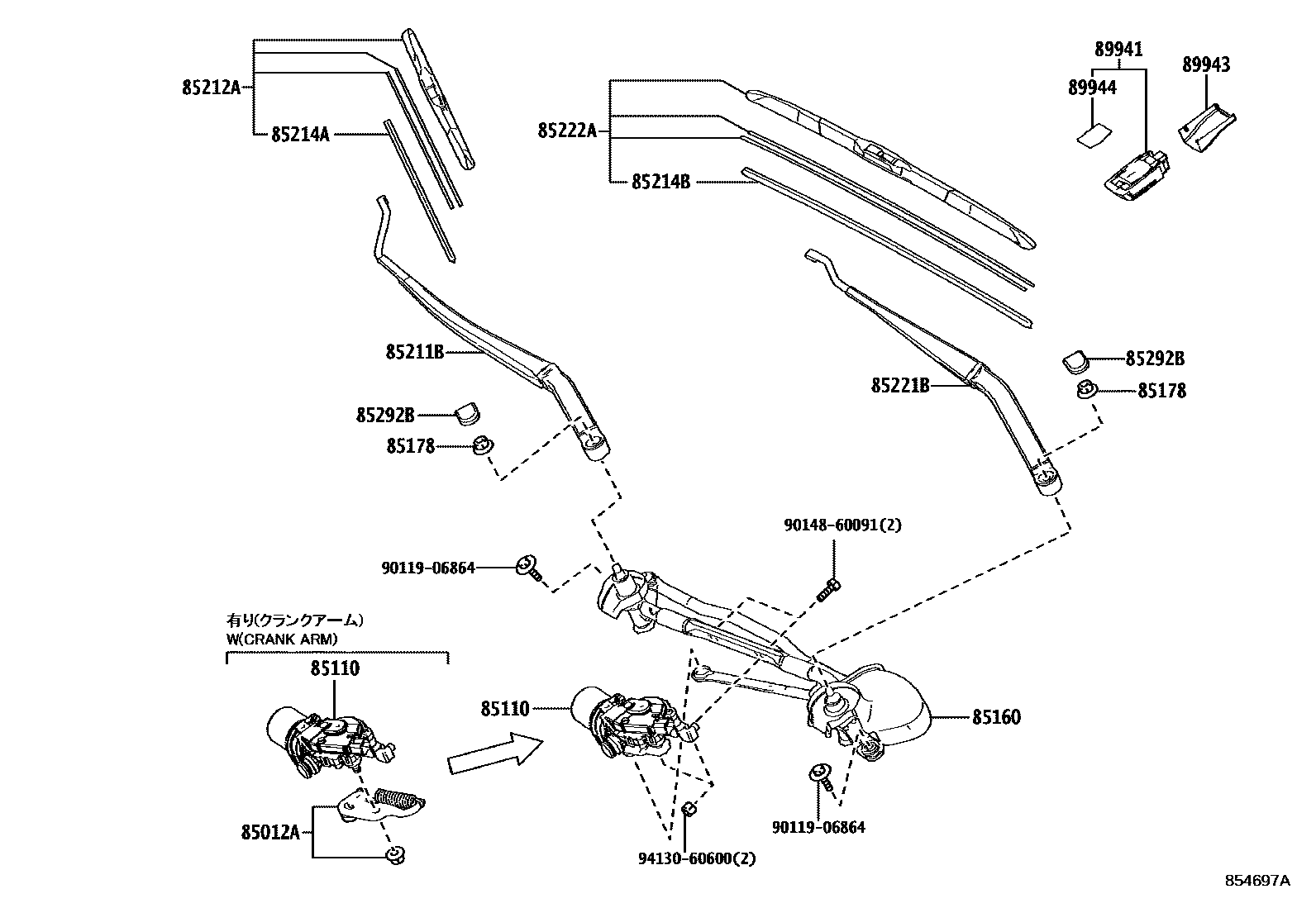

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iAAZA2#..RHD202111-202506

main85012-58030iAAZH2#,MAZA20,TAZA25..LHD..(CHI,EUR)202111-202403

BRAZIL SPEC

main85012-58030iAAZH25,26,TAZA25..LHD..GEN202111-202506

ARGENTINA SPEC

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-42270iAAZH2#,MAZA20,TAZA25..LHD..(CHI,EUR)202111-202506

ARGENTINA SPEC

main85110-42270iAAZH25,26,TAZA25..LHD..GEN202111-202403

BRAZIL SPEC

main85110-42280iAAZH20,25,26..RHD..EUR202111-202403

main85110-78060iAAZH25,26,TAZA25..LHD..(GCC,GEN)202111-202506

main85110-78070iAAZH20,25,26,TAZA25..RHD..GEN202111-202506

85160LINK ASSY, WINDSHIELD WIPER

main85150-78060iAAZH2#,MAZA20,TAZA25..LHD..(CHI,EUR)202111-202506

ARGENTINA SPEC

main85150-78060iAAZH2#,MAZA20,TAZA25..LHD..(CHI,EUR)202111-202403

BRAZIL SPEC

main85150-78080iAAZH25,26,TAZA25..LHD..(GCC,GEN)202111-202506

main85150-78090iAAZA2#..RHD202111-202506

main85150-78100iAAZH20,25,26..RHD..EUR202111-202403

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAAZA2#202111-202506

85211BARM, FRONT WIPER, RH

main85211-78090iAAZH25..LHD..GEN202111-202403

BRAZIL SPEC

main85211-78090iAAZA2#..CHI,EUR202111-202506

ARGENTINA SPEC

main85211-78100iAAZA25..LHD..GEN202111-202506

main85211-78110iAAZH20,25,26,TAZA25..RHD..GEN202111-202506

main85211-78130iAAZH20,25,26..RHD..EUR202111-202403

85212ABLADE, FR WIPER, RH

main85212-76020iAAZA2#..LHD202111-202506

main85212-78080iAAZA2#..RHD202111-202506

85214ARUBBER, WIPER, RH

main85214-28090iAAZH25,TAZA25..GCC202111-202506

main85214-52110iAAZA2#,AAZH20,25,26,TAZA25..RHD202111-202506

85214BRUBBER, WIPER, LH

main85214-28090iAAZA2#..RHD202111-202506

main85214-52110iAAZA2#..LHD202111-202506

85221BARM, FRONT WIPER, LH

main85221-78100iMAZA20202111-202403

TAIWAN SPEC

main85221-78100iAAZA20..EUR202403-202506

main85221-78110iMAZA20202403

ARMENIA SPEC

main85221-78110iAAZA20..CHI;AAZA25..EUR202111-202506

ARGENTINA SPEC

main85221-78110iAAZH2#,TAZA25..LHD..(CHI,EUR)202403

RUSSIA SPEC

main85221-78110iAAZH2#,TAZA25..LHD..(CHI,EUR)202403

BELARUS SPEC

main85221-78110iAAZH2#,TAZA25..LHD..(CHI,EUR)202403

KAZAKHSTAN SPEC

main85221-78110iAAZH2#,TAZA25..LHD..(CHI,EUR)202403

UKRAINE SPEC

main85221-78110iAAZH2#,TAZA25..LHD..(CHI,EUR)202403

AZB,GRZ SPEC

main85221-78110iAAZH2#,TAZA25..LHD..(CHI,EUR)202111-202403

BRAZIL SPEC

main85221-78120iAAZA25..LHD..GEN202111-202506

main85221-78130iAAZH20,25,26,TAZA25..RHD..GEN202111-202506

main85221-78140iAAZH20,25,26..RHD..EUR202111-202403

85222ABLADE, FR WIPER, LH

main85222-76030iAAZH20,25,26,TAZA25..RHD202111-202506

main85222-78070iAAZH2#,MAZA20,TAZA25..LHD202111-202506

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAAZH2#,MAZA20,TAZA25202111-202506

89941SENSOR, RAIN

main89941-78010iAAZH21,26202111-202403

main89941-78020iAAZH25;AAZA25..RHD;AAZA25..EUR;AAZA20,AAZH20,MAZA20,TAZA25..EUR,GEN202111-202405

main89941-78030iAAZH21,26202403

main89941-78040iAAZA25..RHD;AAZA25..EUR;AAZA20..EUR,GEN202403-202506

INTERMITTENT WIPER-WITH(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-78020iAAZA25..RHD;AAZA25..EUR;AAZA20..EUR,GEN202403-202506

INTERMITTENT WIPER-WITH(RAIN SENSOR)

main89943-78020iAAZH21,25;AAZA25,AAZH26..RHD;AAZA25,AAZH26..LHD..EUR;AAZA20,AAZH20,MAZA20,TAZA25..EUR,GEN202111-202405

89944TAPE, RAIN SENSOR

main89944-42020iAAZA25..RHD;AAZA25..EUR;AAZA20..EUR,GEN202403-202506

INTERMITTENT WIPER-WITH(RAIN SENSOR)

main89944-42020iAAZH21,25;AAZA25,AAZH26..RHD;AAZA25,AAZH26..LHD..EUR;AAZA20,AAZH20,MAZA20,TAZA25..EUR,GEN202111-202405

9011906864

main90119-06864

9014860091

main90148-60091

9413060600

main94130-60600

17 parts on this diagram · 2 diagrams in section
