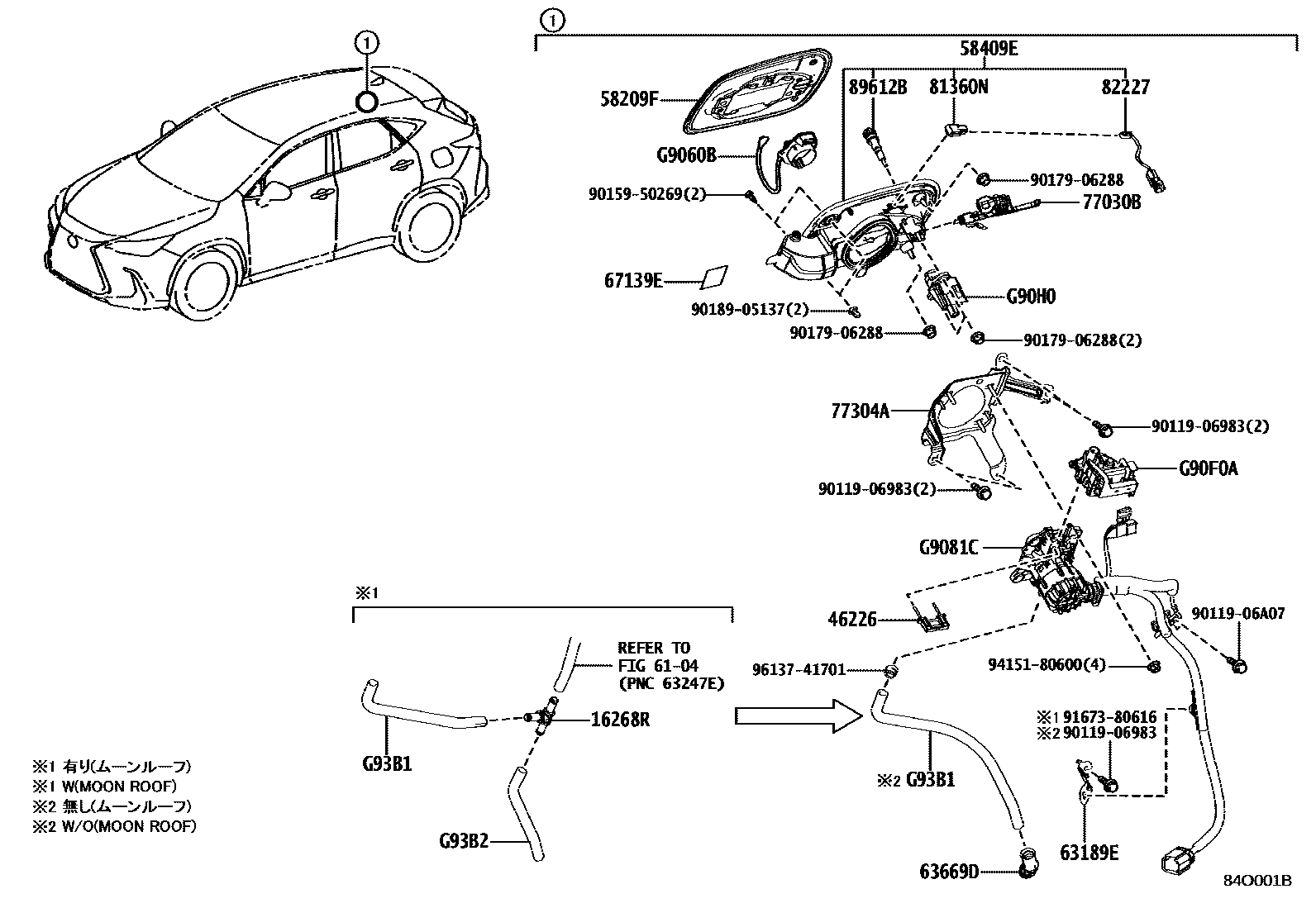

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1BATTERY CHARGER LID 0002 1BATTERY CHARGER LID 0003 1BATTERY CHARGER LID 0004 1EV CHARGER(3.3KW)&EV CHARGER 0005 1EV CHARGER(6.6KW)&EV CHARGER 0006 1DC/DC CONVERTER

16268RPIPE, WATER BY-PASS

main16268-37100iA25AFXS..AAZH26202111-202403

MOON ROOF-WITH

46226PIN, CONNECTOR

main46226-47010iAAZH21,26202111-202403

58209FLID SUB-ASSY, BATTERY SERVICE OPENING

main58209-78010iAAZH21,26202111-202403

58409ELID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

main58409-78030iAAZH21,26202111-202403

6104

63189EBRACKET, WIRING HARNESS CONNECTOR

main63189-42011iAAZH21,26202111-202403

63669DGROMMET, DRAIN HOSE

main63669-30040iAAZH21,26202312-202402

main63669-78010iAAZH21,26202111-202312

67139ESHEET, AC CHARGING PORT OPENING LID

main67139-76030iAAZH21,26202111-202403

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-78040iAAZH21,26202111-202403

77304ALID SUB-ASSY, BATTERY CHARGE PORT

main77304-78010iAAZH21,26202111-202403

81360NLAMP ASSY, SPOT

main81360-47010iAAZH21,26202111-202403

82227WIRE, SPOT LAMP

main82227-78010iAAZH21,26202111-202403

89612BLIFTER, PUSH

main89612-42010iAAZH21,26202111-202403

G9060BCOVER, CONNECTOR

main82821-76200iAAZH26202111-202403

main82821-76250iAAZH21202111-202403

G9081CCABLE, AC CHARGER INLET

mainG908178031iAAZH26..LHD202111-202303

mainG908178041iAAZH26..LHD202111-202307

subG9081-78042

mainG908178042iAAZH26202308-202403

mainG908178050iAAZH21202111-202403

G90F0ALOCK ASSY, CABLE EV CHARGER

mainG90F076010iAAZH21202111-202403

mainG90F076020iAAZH26202111-202403

G90H0INDICATOR ASSY, EV CHARGER LID

mainG90H078010iAAZH21,26202111-202403

G93B1HOSE, EV CHARGE CONNECTOR DRAIN, NO.1

mainG93B178010iAAZH26202111-202312

mainG93B178020iAAZH26202111-202311

MOON ROOF-WITH

mainG93B178021iAAZH21,26202312-202402

G93B2HOSE, EV CHARGE CONNECTOR DRAIN, NO.2

mainG93B278010iAAZH21202111-202311

MOON ROOF-WITH

mainG93B278020iAAZH21,26202312-202402

9011906983

main90119-06983

9011906A07

main90119-06A07

9015950269

main90159-50269

9017906288

main90179-06288

9018905137

main90189-05137

9167380616

main91673-80616

9415180600

main94151-80600

9613741701

main96137-41701

27 parts on this diagram · 6 diagrams in section
